Code 3: G1 Signal-Distributor

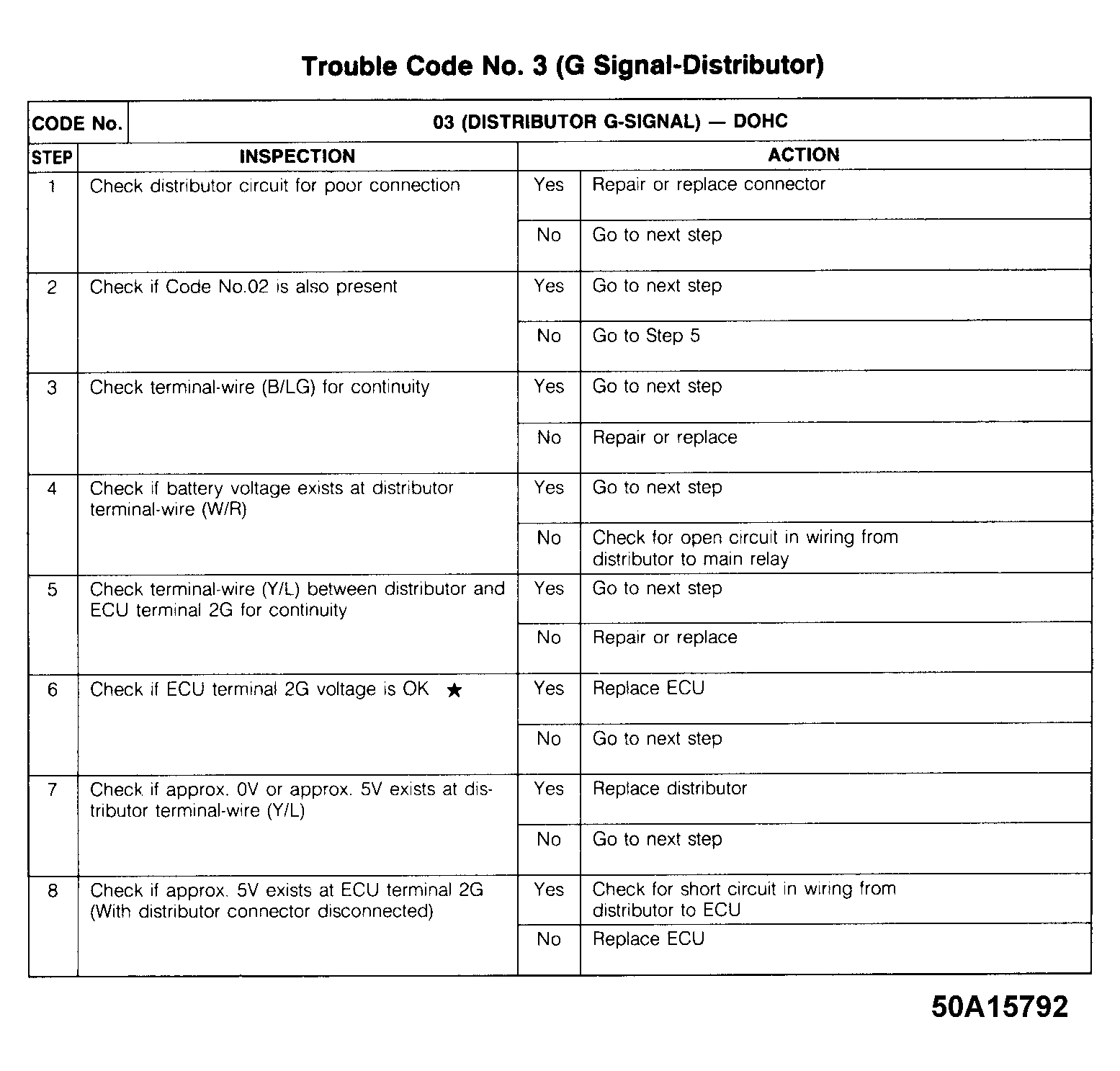

Fig 1: Code 3: G1 Signal-Distributor Chart
G50A15792Courtesy of MAZDA MOTORS CORP.

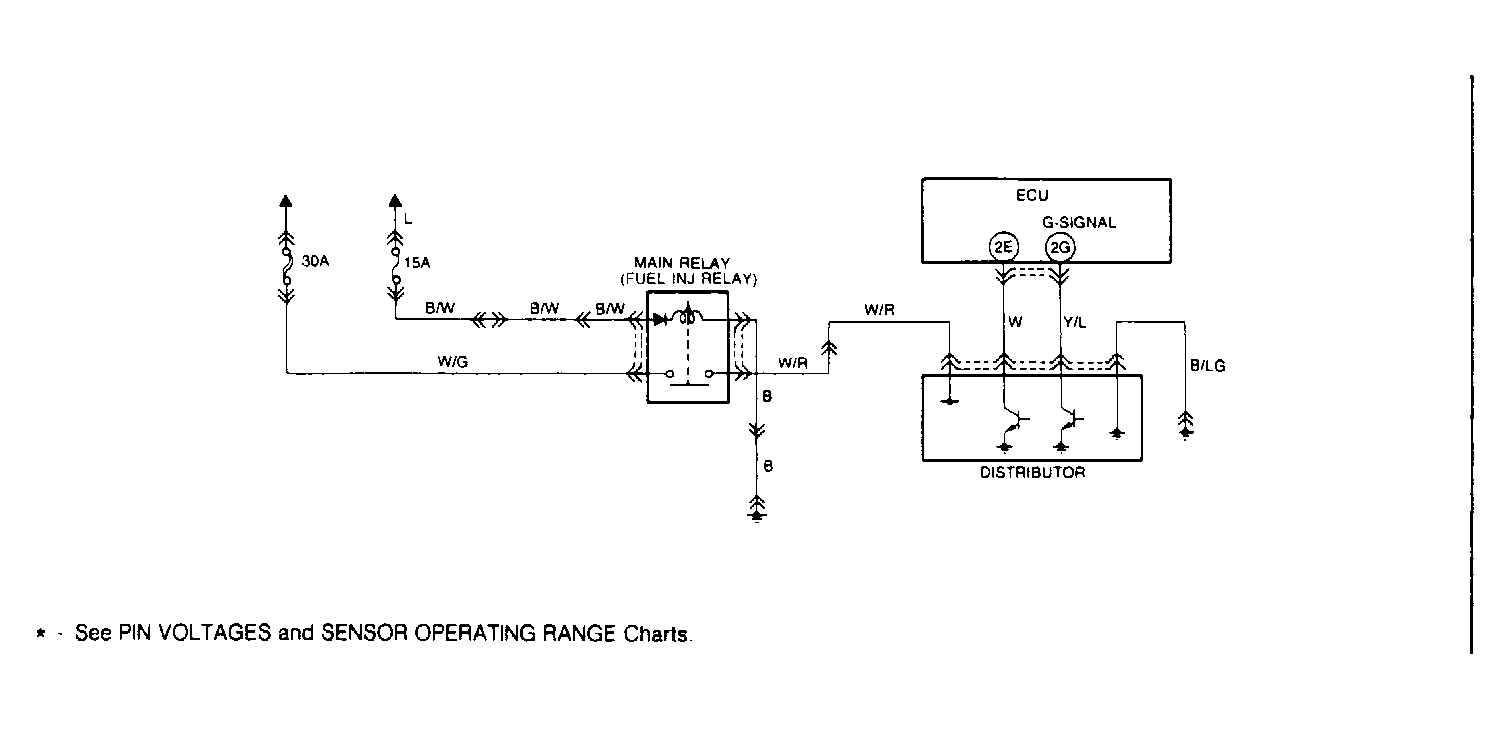

Fig 2: Code 3: G1 Signal-Distributor Circuit Diagram
G90A21642Courtesy of MAZDA MOTORS CORP.
