Code 9: Coolant THERMOSENSOR

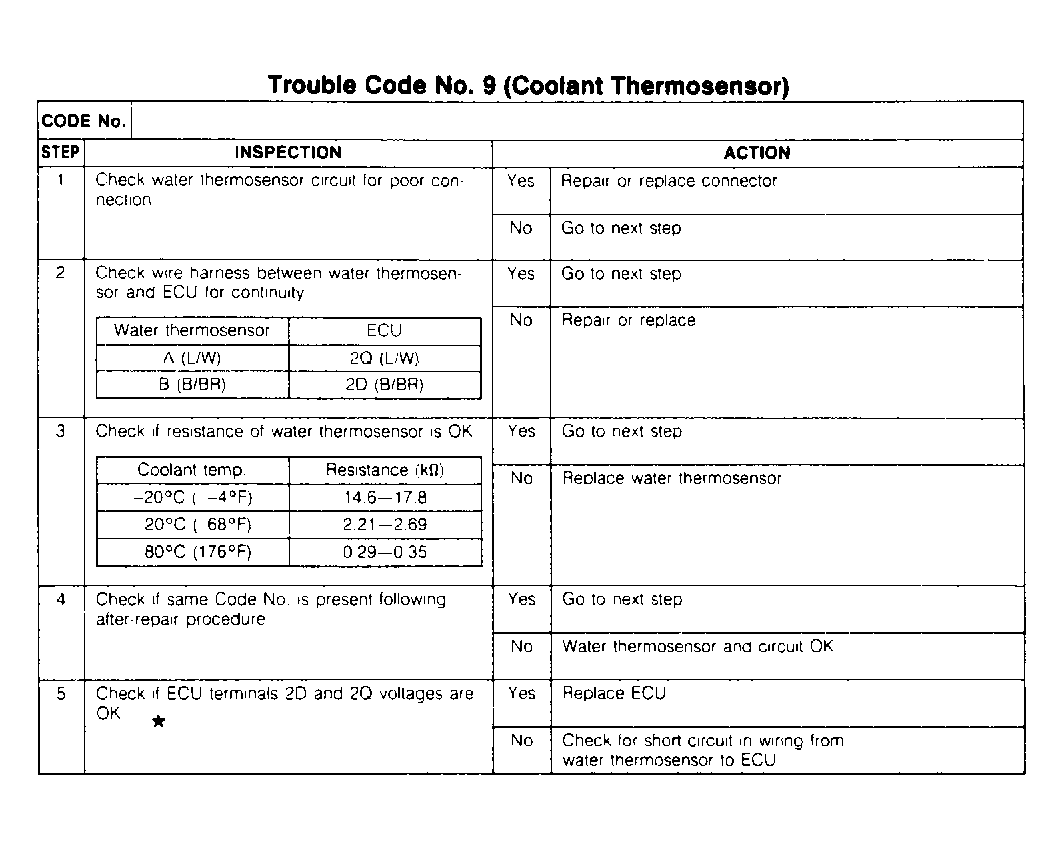

Fig 1: Code 9: Coolant Thermosensor Chart
G90B21510Courtesy of MAZDA MOTORS CORP.

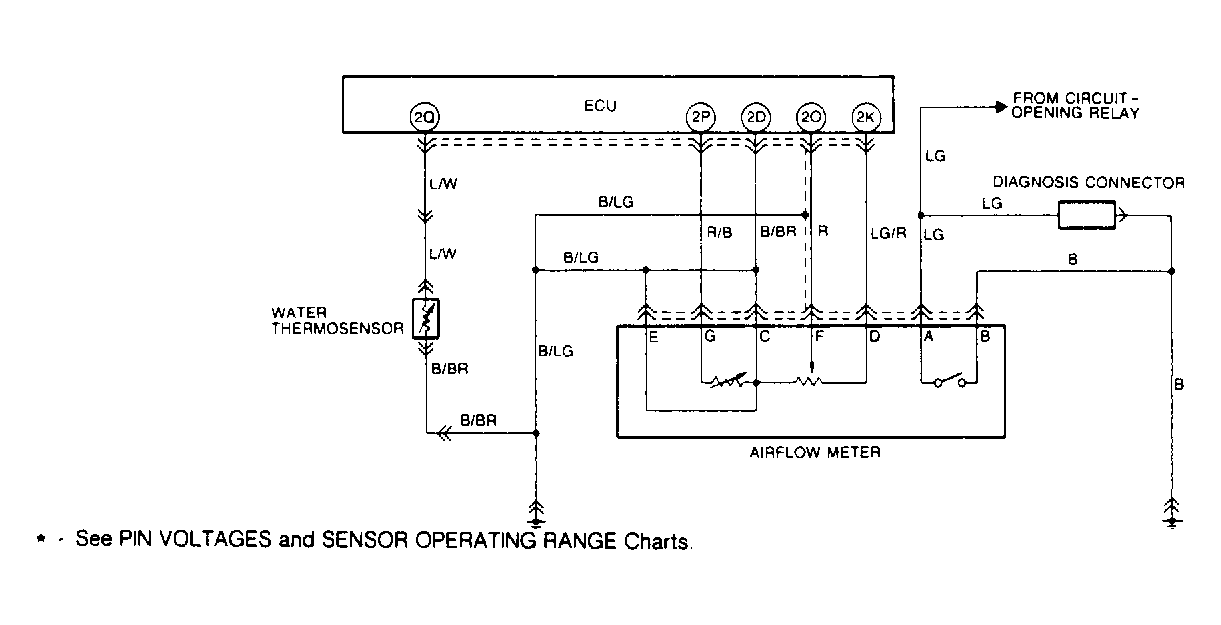

Fig 2: Code 9: Coolant Thermosensor Circuit Diagram
G90C21644Courtesy of MAZDA MOTORS CORP.
