ISC Valve

Measure resistance of ISC valve at 2-wire connector. Resistance should be 11-13 ohms, at 68°F (20°C). If resistance is not within specification, replace ISC valve.

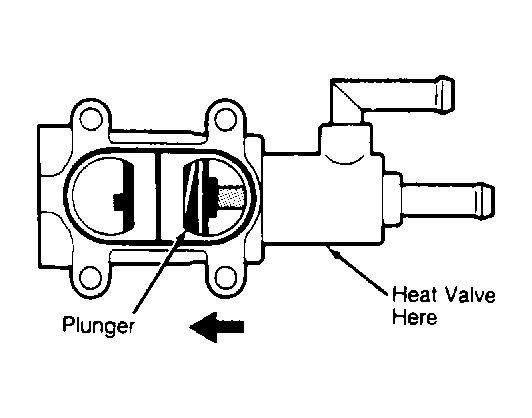

Fig 1: Cross-Sectional View of Air Valve (Miata, Protege & 323)

Courtesy of MAZDA MOTORS CORP.
