Window Mechanism

  1. Remove door trim panel and water shield. See DOOR TRIM PANEL  .
  2. Lower glass approximately 3" from the full UP position.

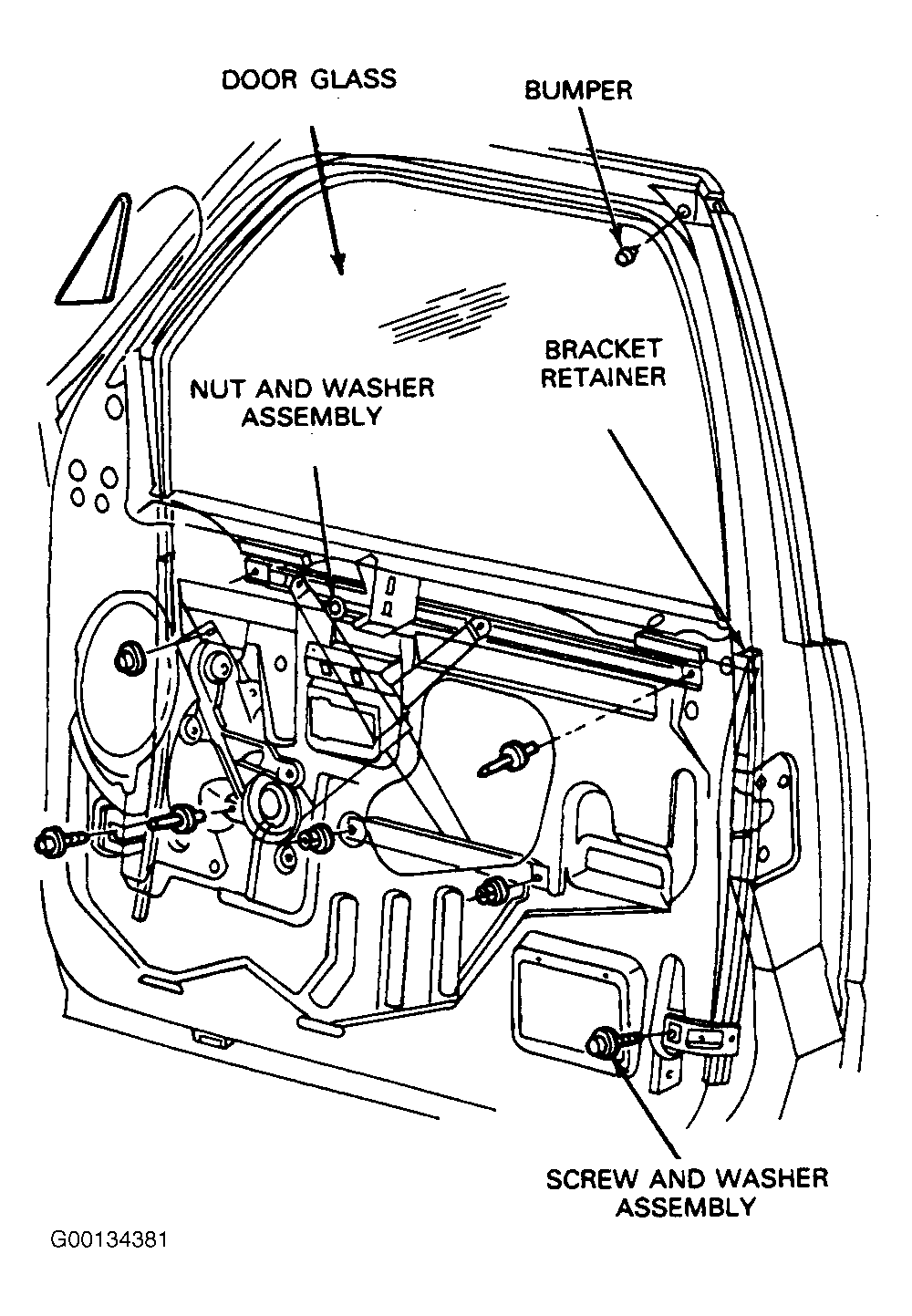

  3. Loosen nut and washer assemblies and retaining the equalizer bracket to door inner panel. See Figure .
  4. With the door open, place hands on each side of glass and pull glass fully into door glass run assembly at B-pillar.
  5. Tighten nut and washer. Apply downward pressure on the equalizer bracket and tighten nut and washer to 9-14 N.m (7-10 ft. lbs.).
  6. Cycle door glass to ensure proper functioning and door fit.
  7. Install water shield and trim panel.
