Main Switch

Turn ignition off. Disconnect main switch connector. Check continuity between switch terminals with switch in specified position. See Fig 1 or Fig 2 . If continuity is not as specified, replace main switch.

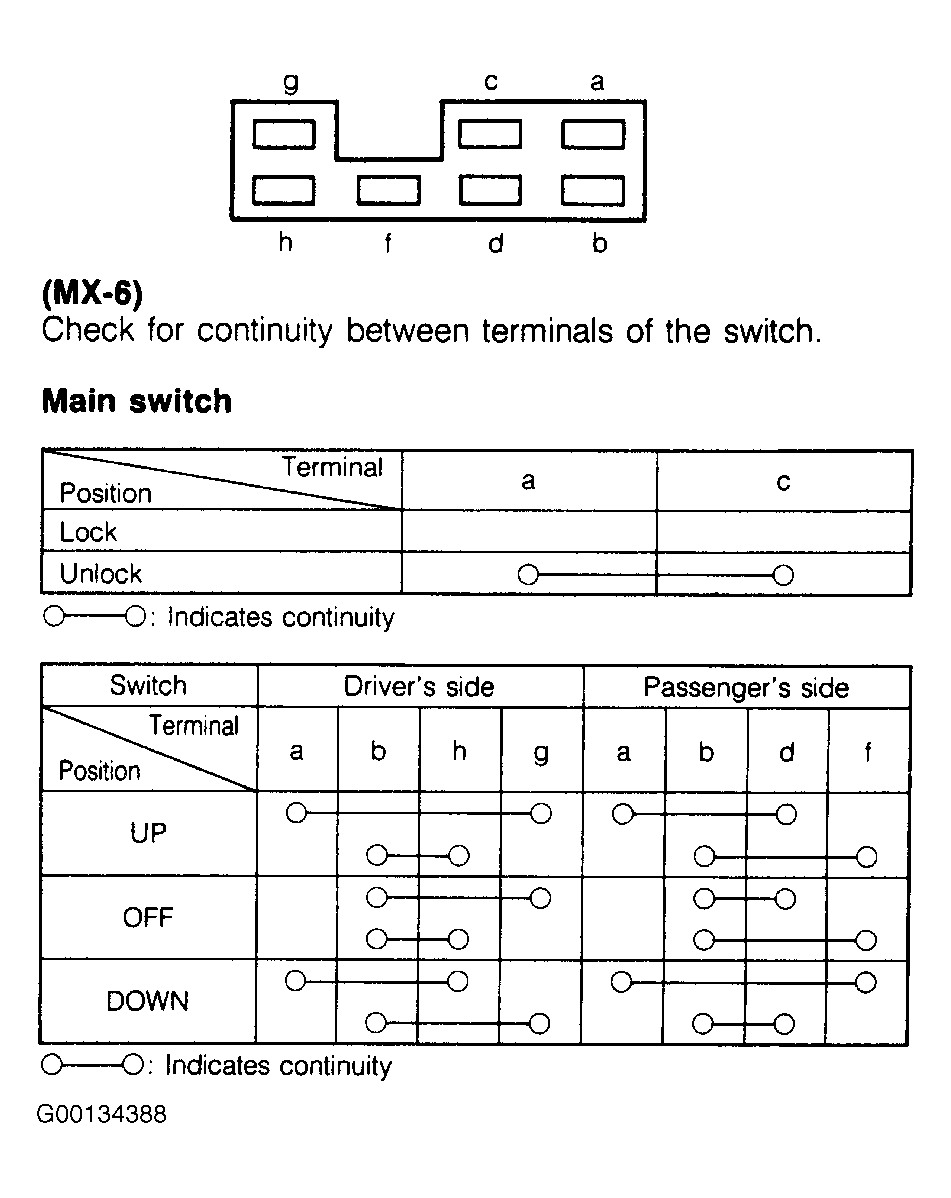

Fig 1: Main Switch Continuity Chart (MX-6)

Courtesy of MAZDA MOTORS CORP.

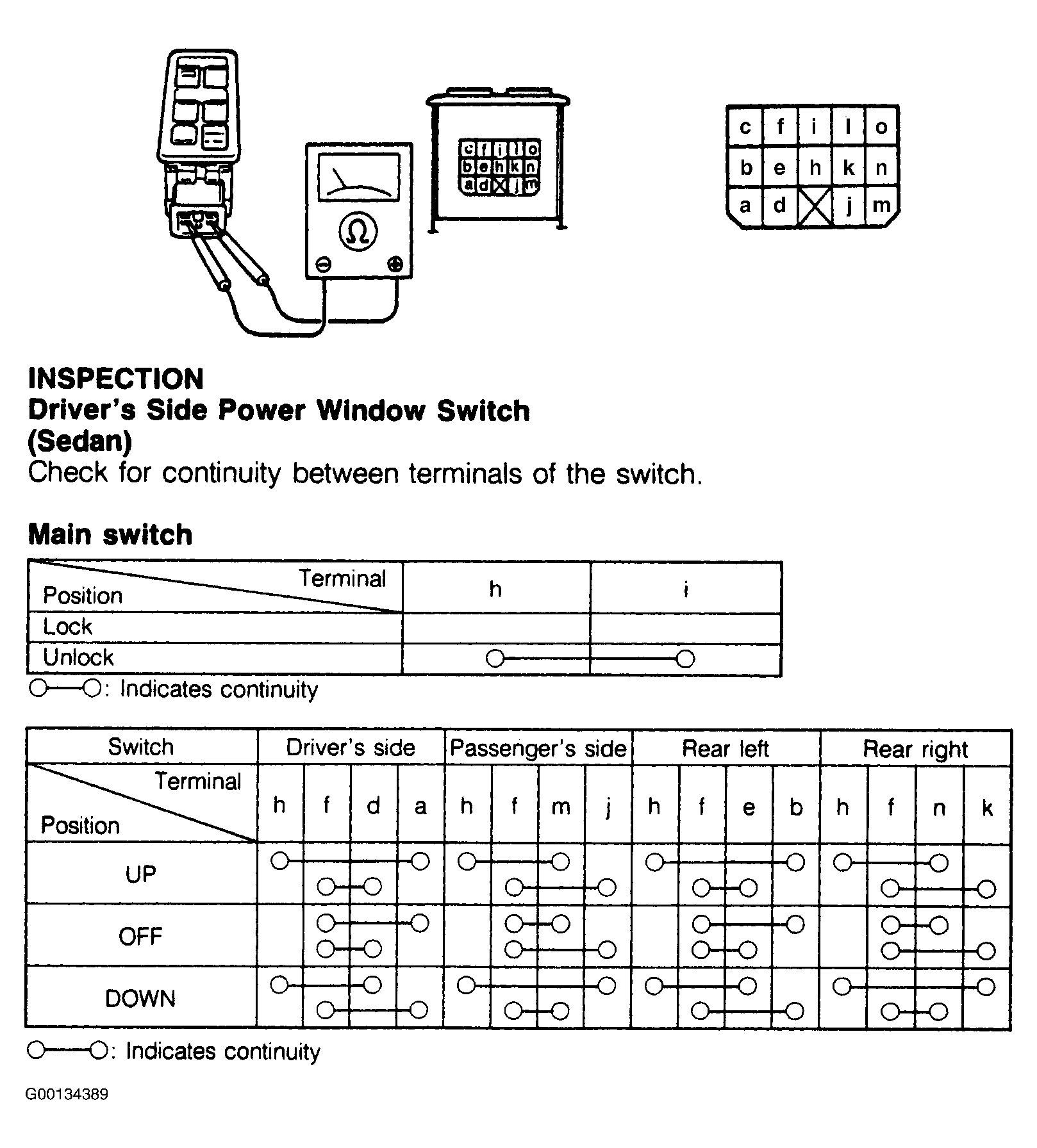

Fig 2: Main Switch Continuity Chart (626)

Courtesy of MAZDA MOTORS CORP.
