Component Tests: Sub-Switch

Check continuity across terminals of suspect sub-switch connector as specified. See Fig 1 or Fig 2 . Replace sub-switch if continuity is not as specified.

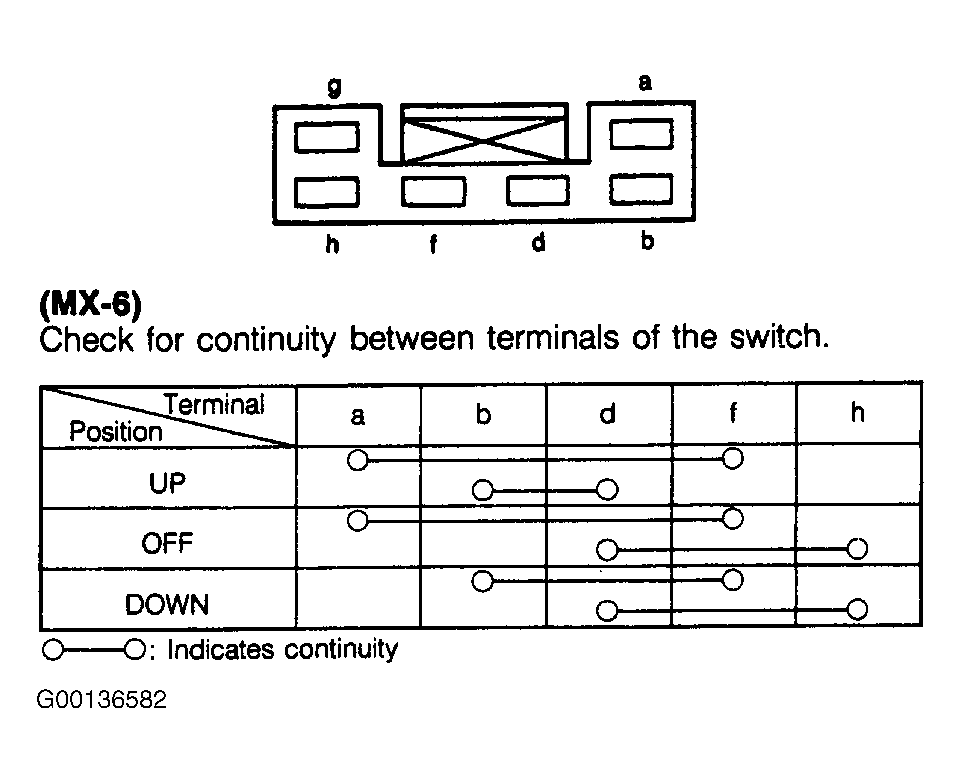

Fig 1: Identifying Sub-Switch Continuity Chart (MX-6)

Courtesy of MAZDA MOTORS CORP.

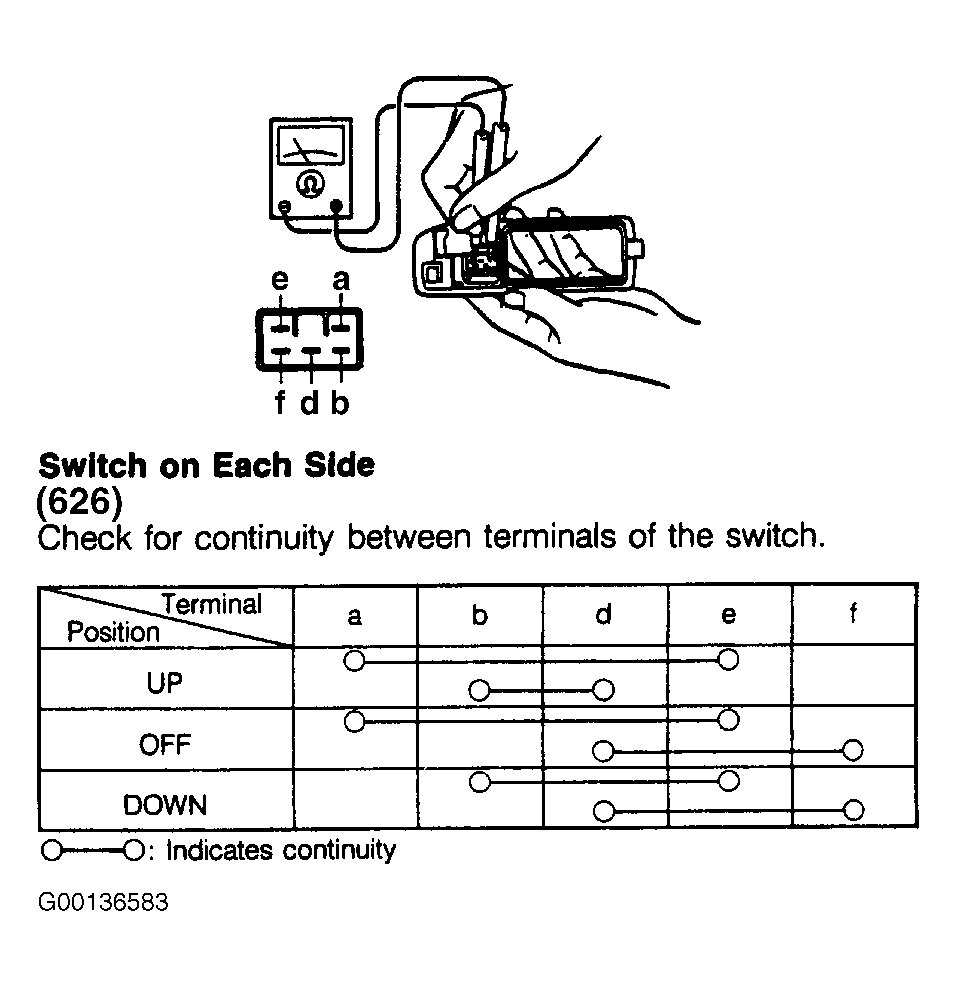

Fig 2: Identifying Sub-Switch Continuity Chart (626)

Courtesy of MAZDA MOTORS CORP.
