Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
Fuse/Relay Box

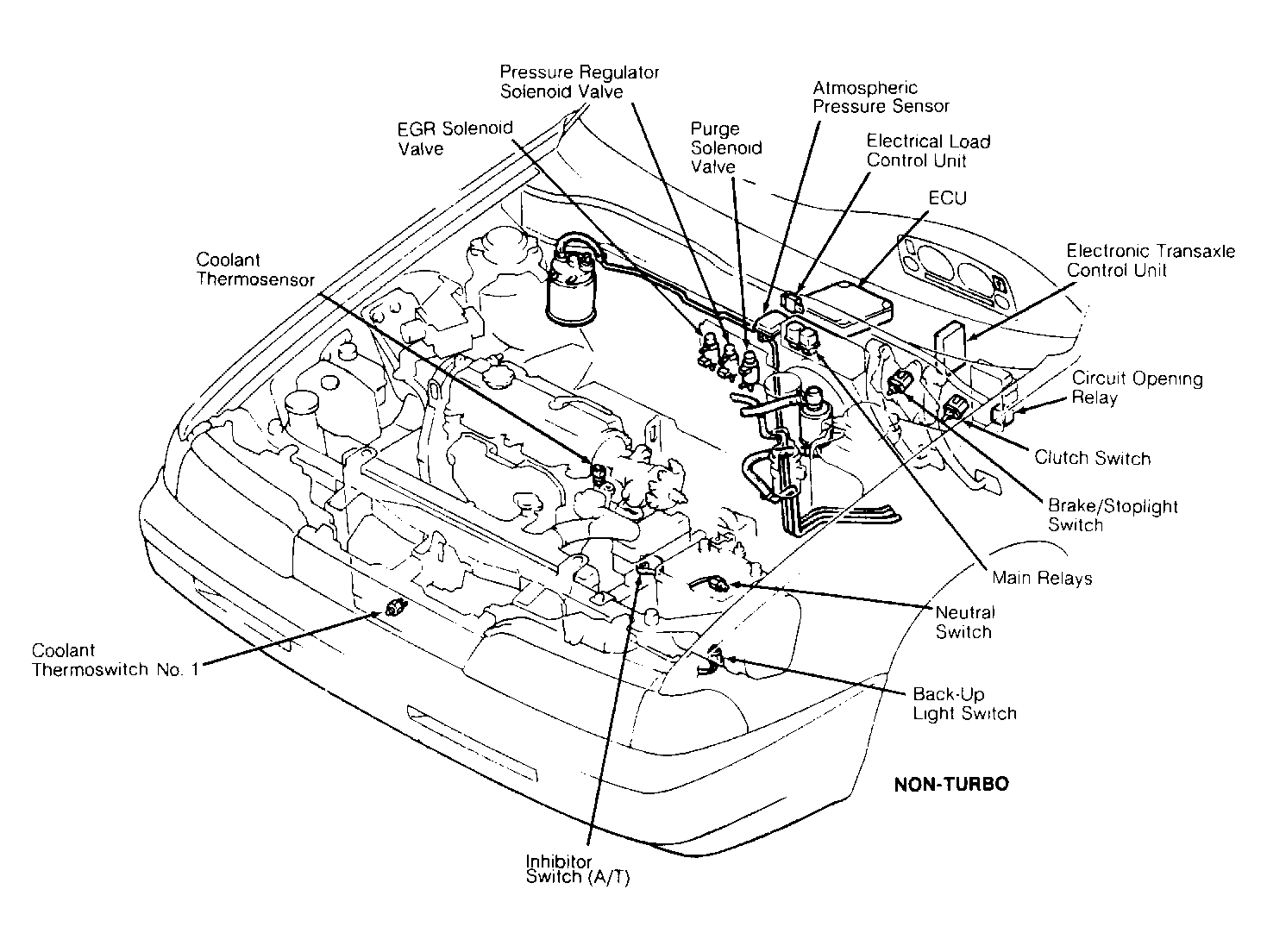

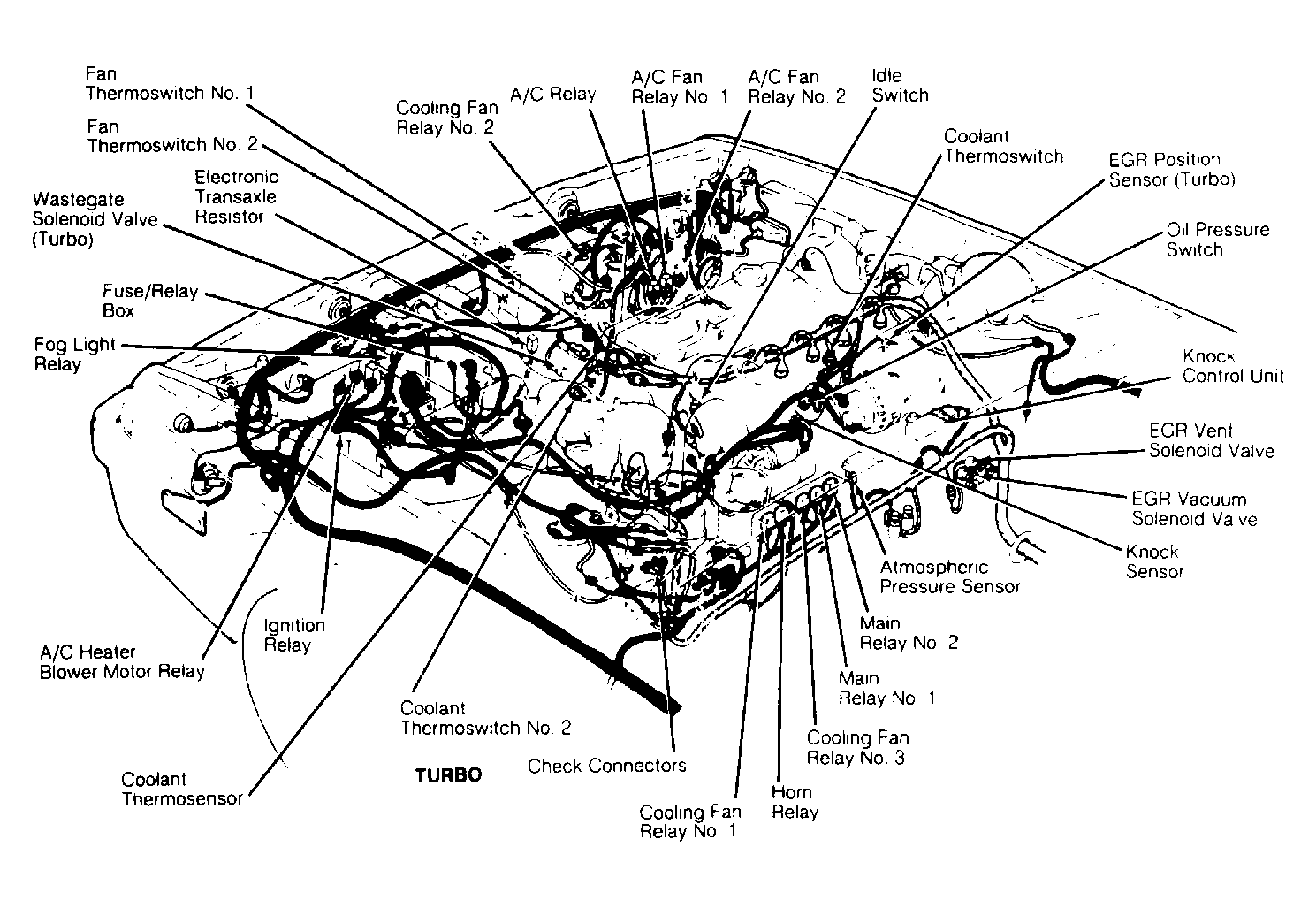

Engine Compartment On right side of battery. See Figure & Figure .
Passenger Compartment Under left side of dash. See Figure .
Heater Circuit Breaker In joint/fuse box, with CPU.

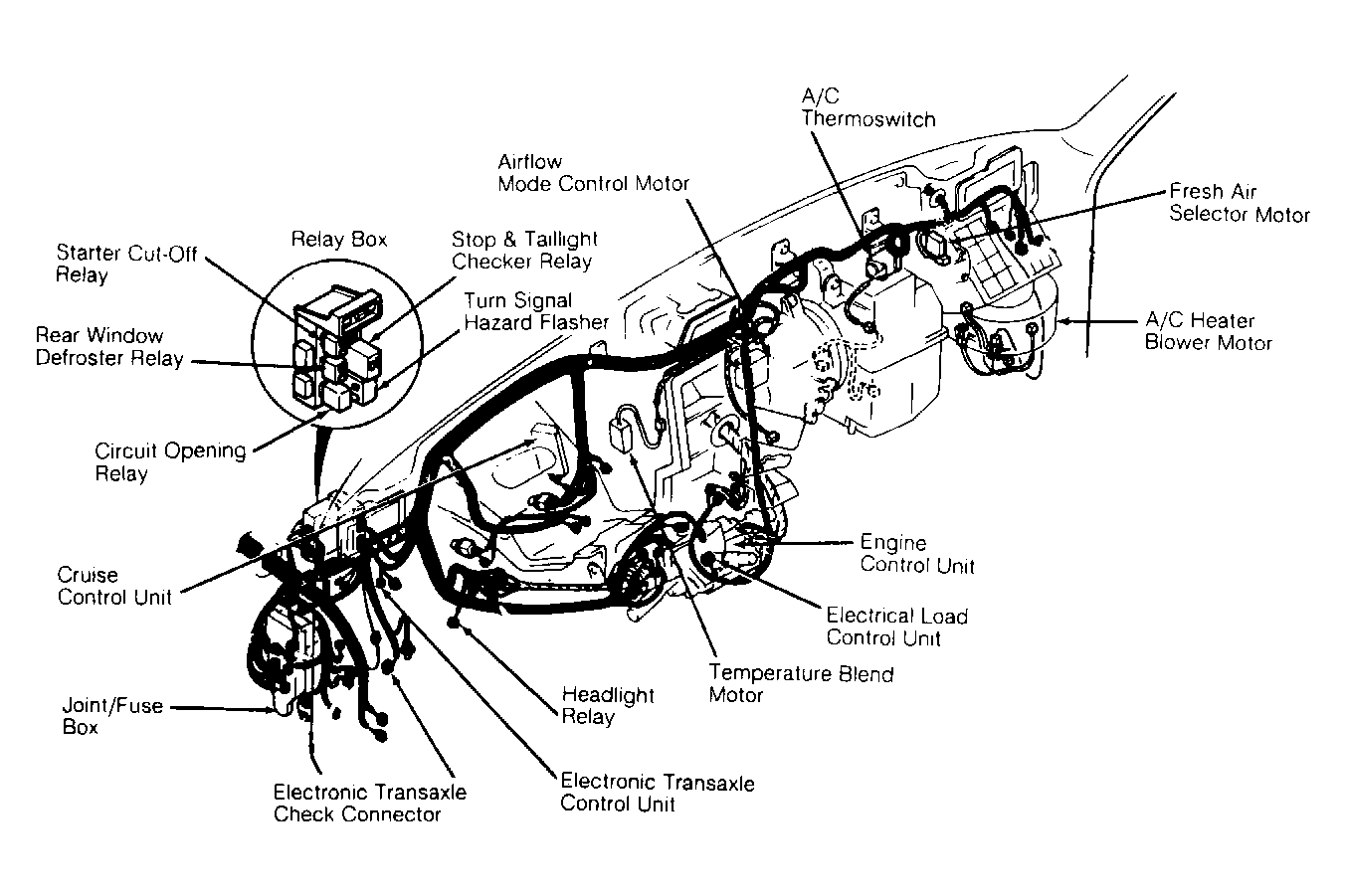

Joint/Fuse Box Behind left front kick panel. See Figure .
Main Fuse In engine compartment fuse box.
