Ignition Timing

With engine at normal operating temperature, place in Neutral (M/T) or Park (A/T). Disconnect and plug vacuum advance hoses (if equipped).
On all except carbureted B2200, connect jumper wire between timing test connector and ground. See Fig 1 . Ensure idle speed is correct. Connect timing light and set timing as required. See PISTON ENGINE IGNITION TIMING SPECIFICATIONS table. See Fig 2 .

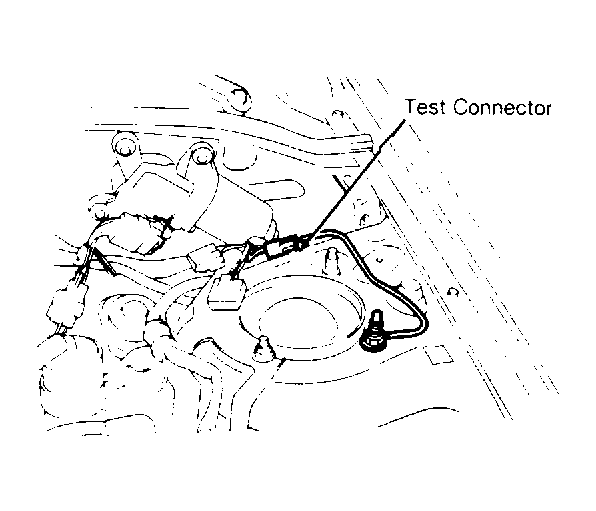

Fig 1: Locating Ignition Timing Test Connector (MX-6 & 626)

Courtesy of MAZDA MOTORS CORP.

PISTON ENGINE IGNITION TIMING

Application

Degrees BTDC @ RPM

Non-Turbo

M/T

6 @ 750

A/T ⁽¹⁾

6 @ 750

Turbo

M/T

9 @ 750

A/T ⁽¹⁾

9 @ 750

⁽¹⁾	Automatic transmission in "P".

Fig 2: Locating Typical Piston Engine Timing Marks

Courtesy of MAZDA MOTORS CORP.
