Code 10: Intake Air THERMOSENSOR

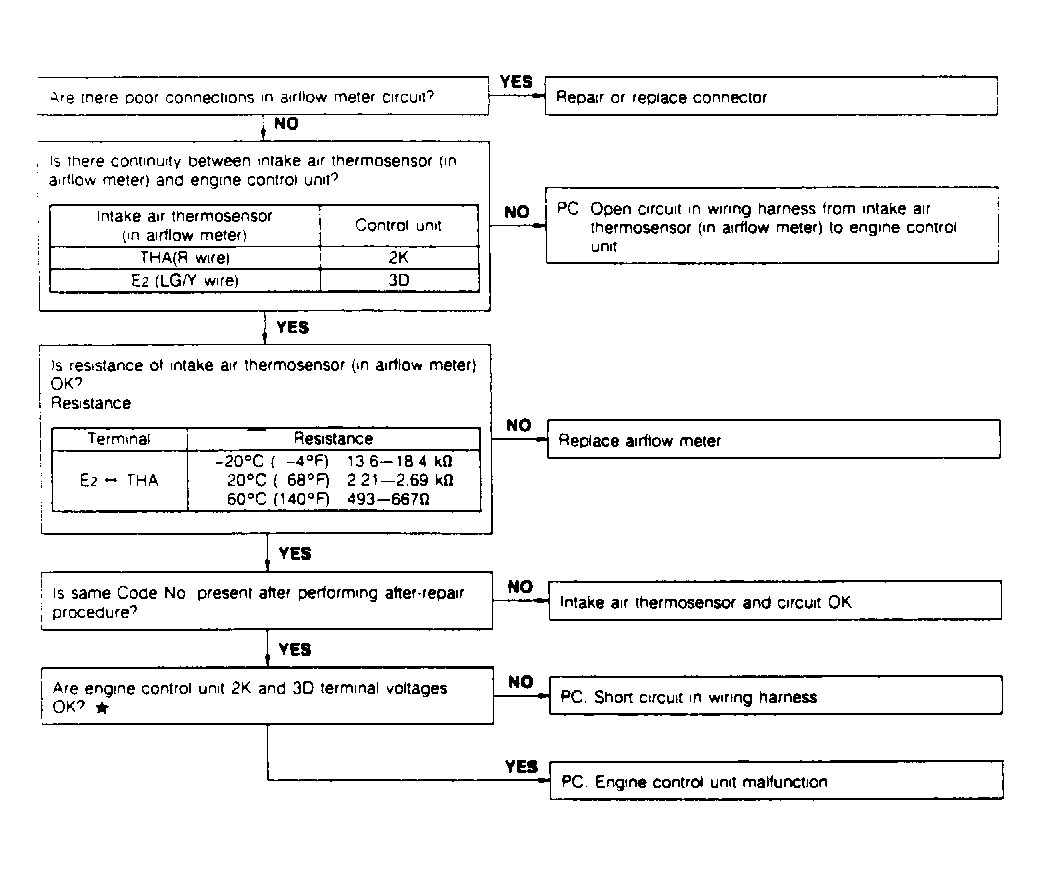

Fig 1: Code 10: Intake Air Thermosensor Flow Chart (Turbo)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
