Code 3: G1 Signal-Distributor

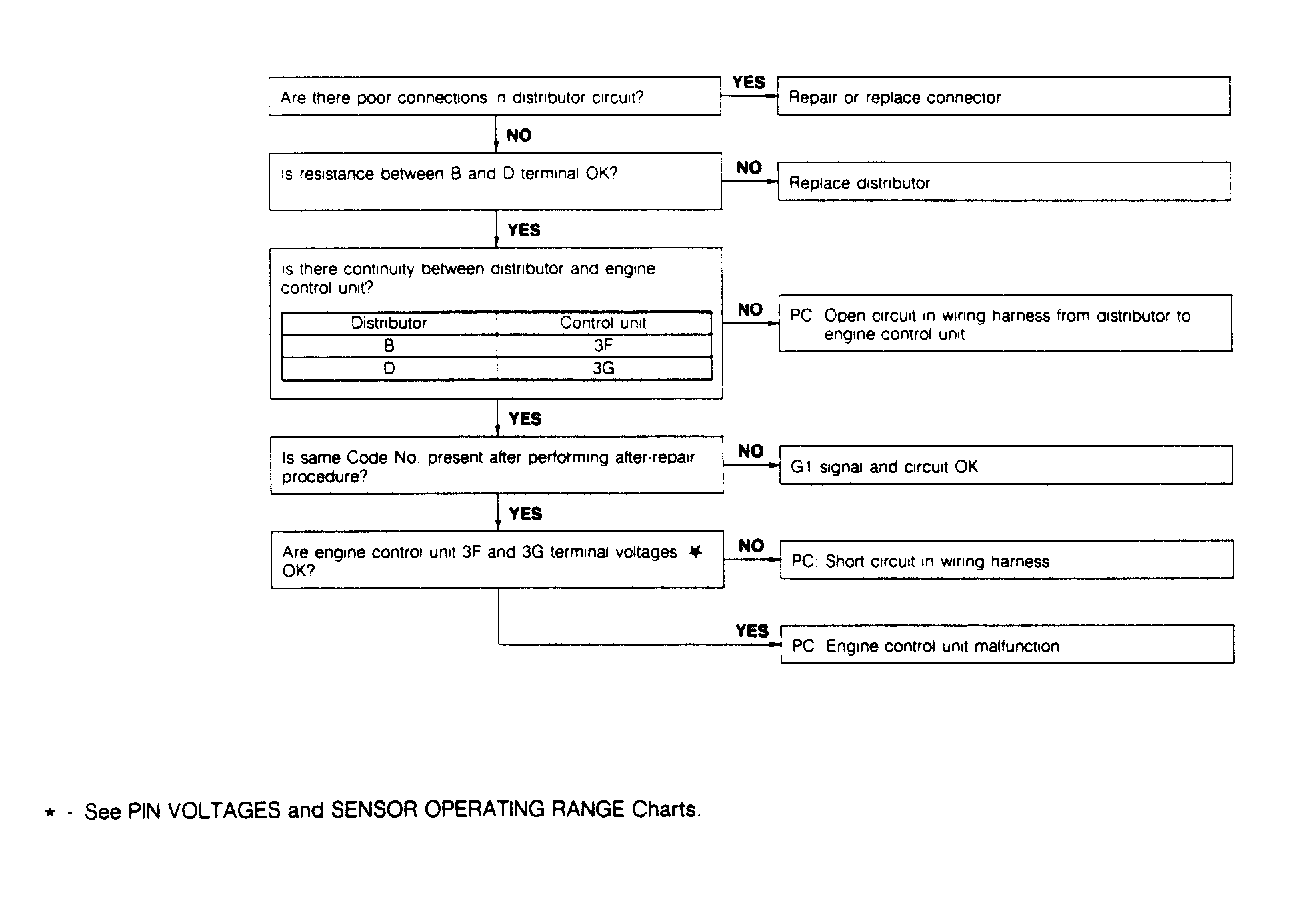

Fig 1: Code 3: G1 Signal-Distributor Flow Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
