Code 42: WASTEGATE Solenoid Valve

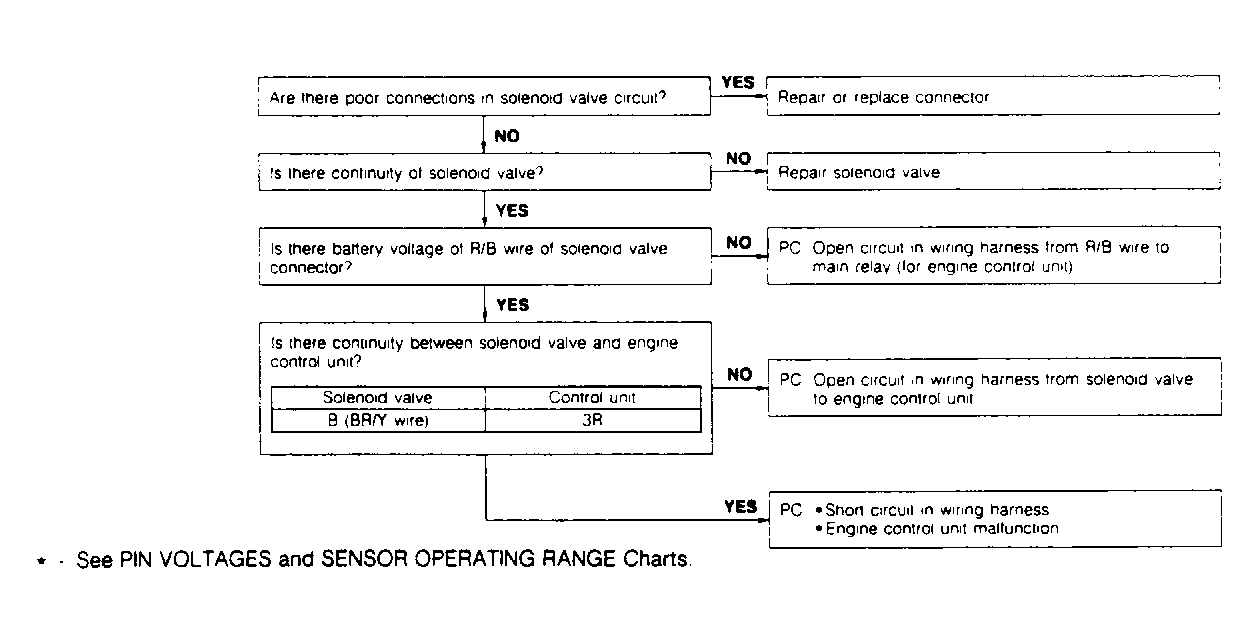

Fig 1: Code 35: Wastegate Solenoid Valve Flow Chart (Turbo)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
