Code 5: Knock Sensor & Knock Control Unit

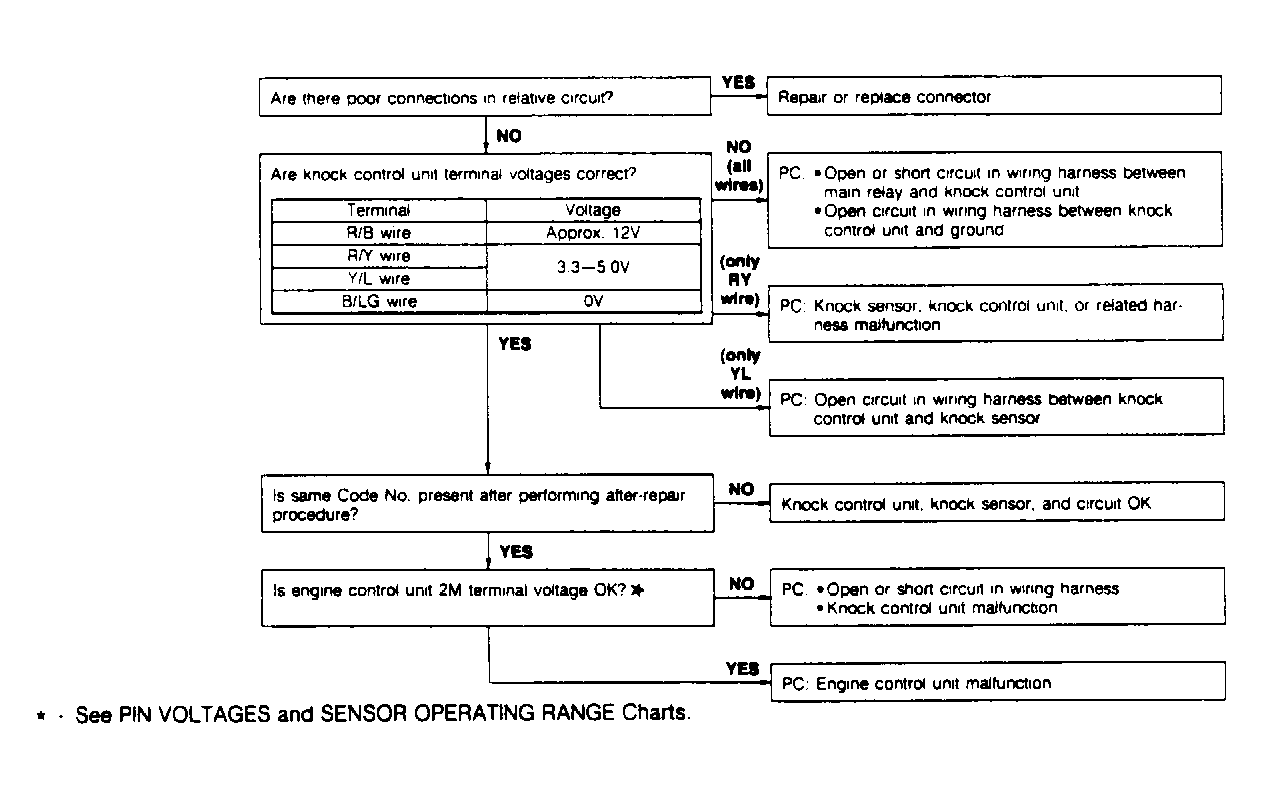

Fig 1: Code 5: Knock Sensor & Knock Control Flow Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
