Resistor Relay (RX7 Only)

Remove air cleaner and airflow meter. Disconnect fuel pump resistor. Ensure continuity exists between terminals "a" and "b". See Fig 1 and Fig 2 .
Measure resistance between the following terminals. Resistance between terminals "c" and "d" should be 60-92 ohms and between "e" and "f" should be .70-.94 ohms. If resistor relay does not test as specified, replace relay.

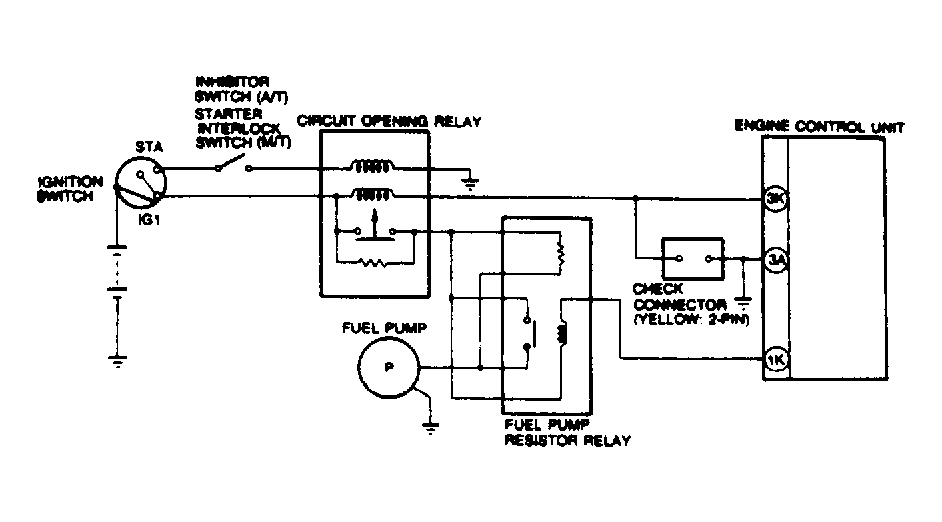

Fig 1: RX7 Fuel Pump Control Circuit

Courtesy of MAZDA MOTOR CORP.

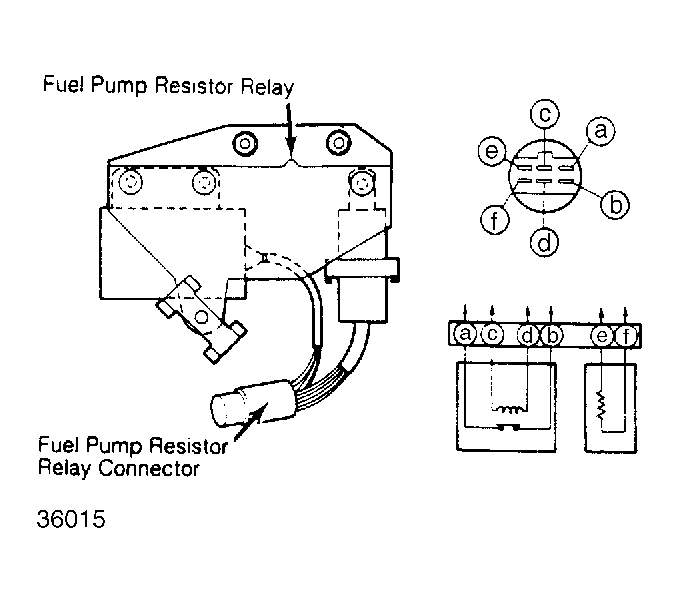

Fig 2: Testing Fuel Pump Resistor Relay (RX7)

Courtesy of MAZDA MOTORS CORP.
