Air Valve

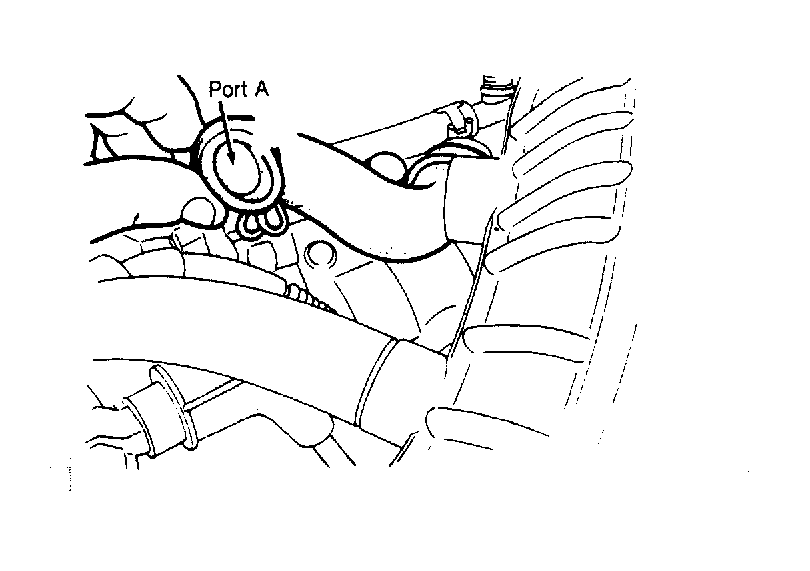

- Disconnect air hoses from air funnel. Blow air through valve from port "A" and ensure air flows through valve when engine is cold. See Figure .
- Warm engine to normal operating temperature. Blow air through valve from port "A". Air should not flow through valve. Replace valve if not functioning as specified.
