DOHC Code Identification Charts: Notes

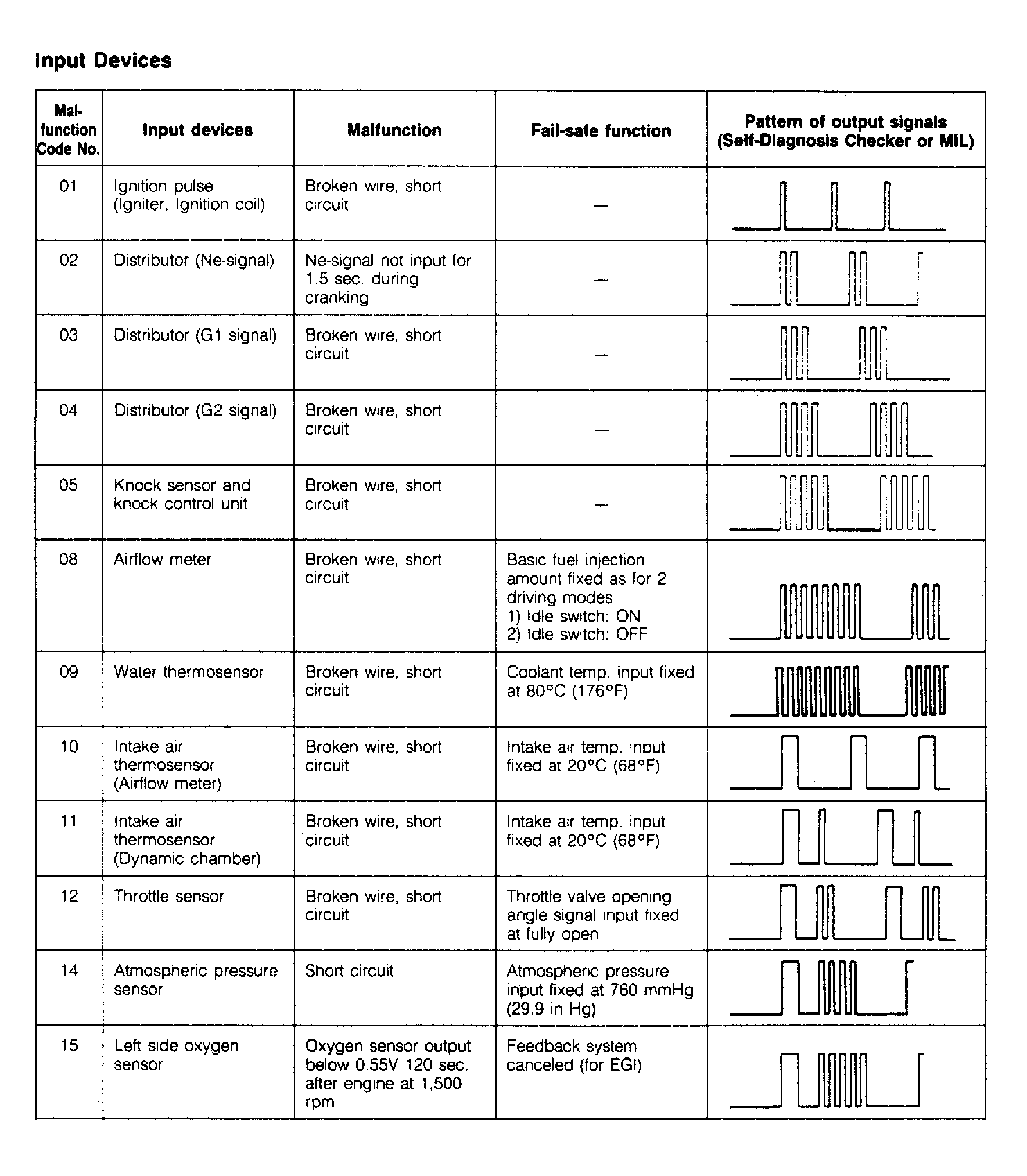

Fig 1: Codes 1-15, Identification Chart
G90G21549Courtesy of MAZDA MOTORS CORP.

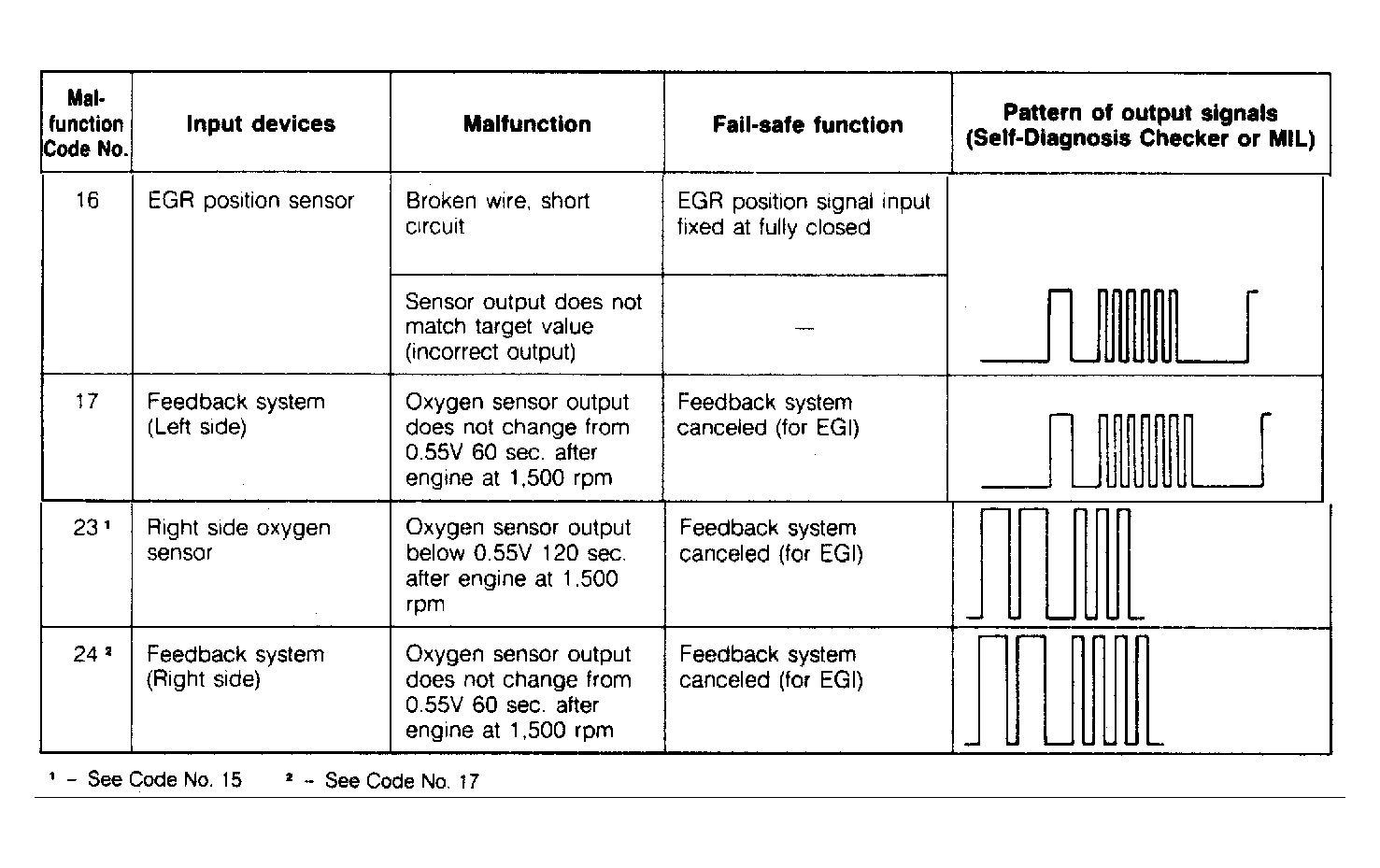

Fig 2: Codes 16-24, Identification Chart
G90A21550Courtesy of MAZDA MOTORS CORP.

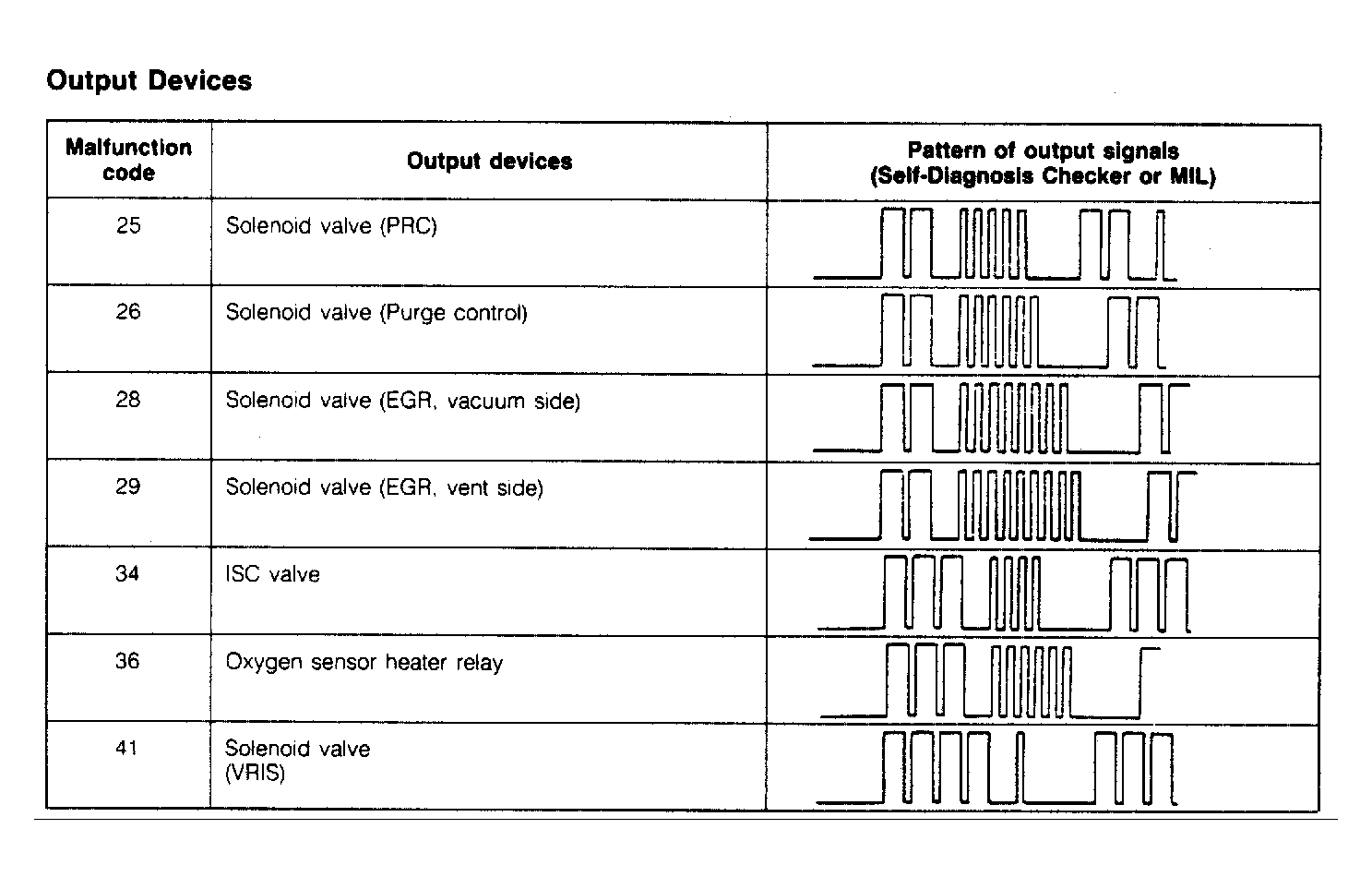

Fig 3: Codes 25-41, Identification Chart
G90B21551Courtesy of MAZDA MOTORS CORP.
