Test A: All Windows Inoperative

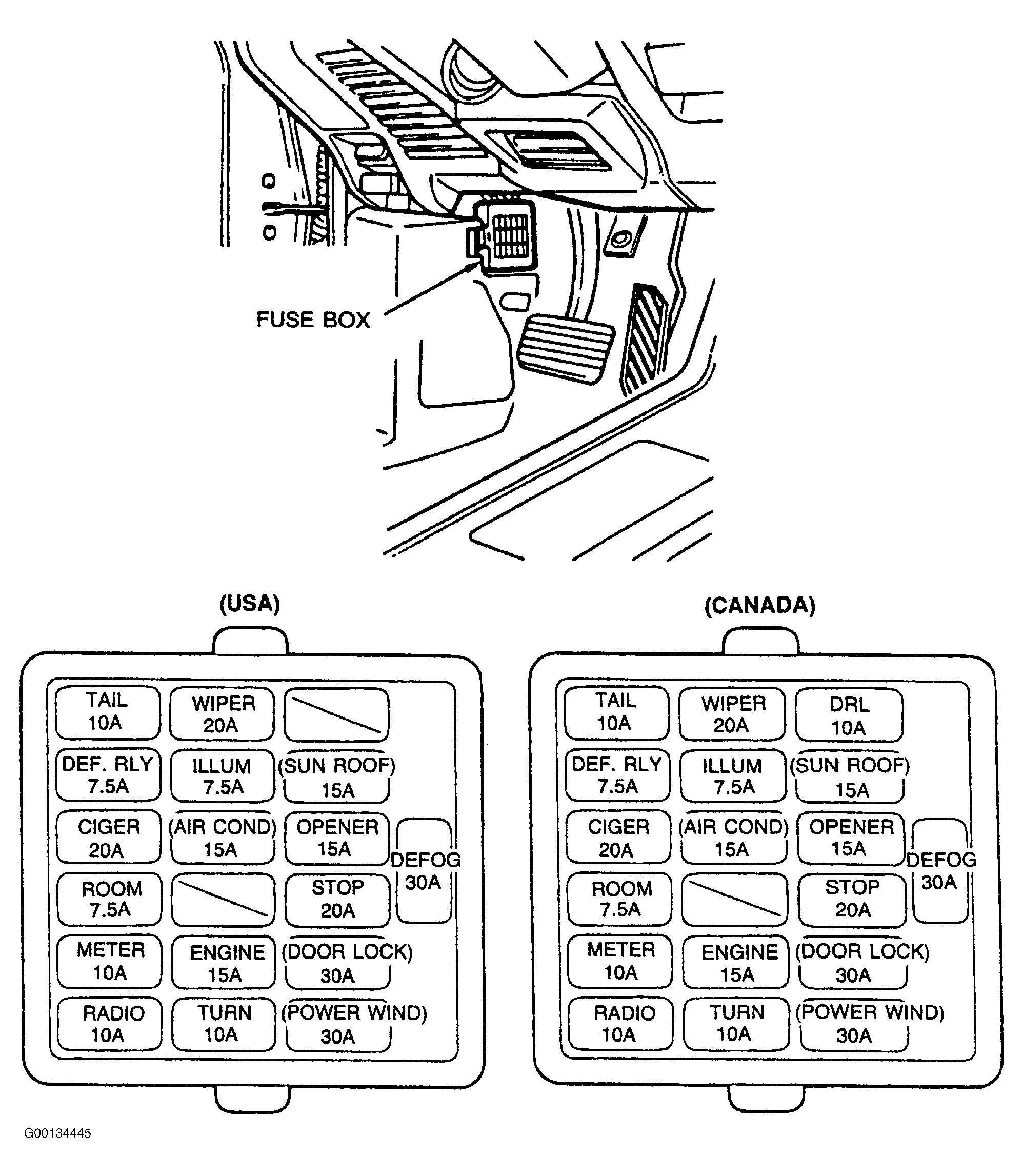

  1. Turn ignition on. Check 30-amp power window fuse in fuse block, near left kick panel. See Figure . If fuse is blown, replace fuse (repair wiring if necessary). If fuse is okay, go to next step.
  2. Measure voltage at Red/Blue wire terminal of main switch connector. If battery voltage is present, go to next step. If battery voltage is not present, repair Red/Blue wire between fuse and main switch.
  3. Turn ignition off. Disconnect main switch connector. Check continuity between ground and Black wire terminal of main switch connector. If continuity does not exist, repair open ground circuit. If continuity exists, check main switch. See MAIN SWITCH  under COMPONENT TESTS.
