Anti-Lock Brake System: Description

The Anti-Lock Brake System (ABS) control unit senses reductions in front and rear wheel speed, and modulates hydraulic pressure to the brakes to prevent wheel lock-up. The ABS consists of a hydraulic unit, 4 wheel speed sensors and sensor rotors, valve relay, motor relay, pump motor, and ABS control unit. An ANTI-LOCK warning light is located on the instrument panel. See Fig 1 thru Fig 3 .

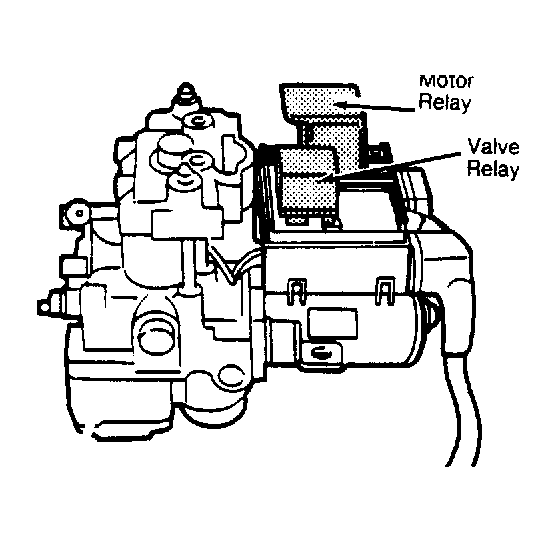

Fig 1: Locating Motor Relay & Valve Relay

Courtesy of MAZDA MOTORS CORP.

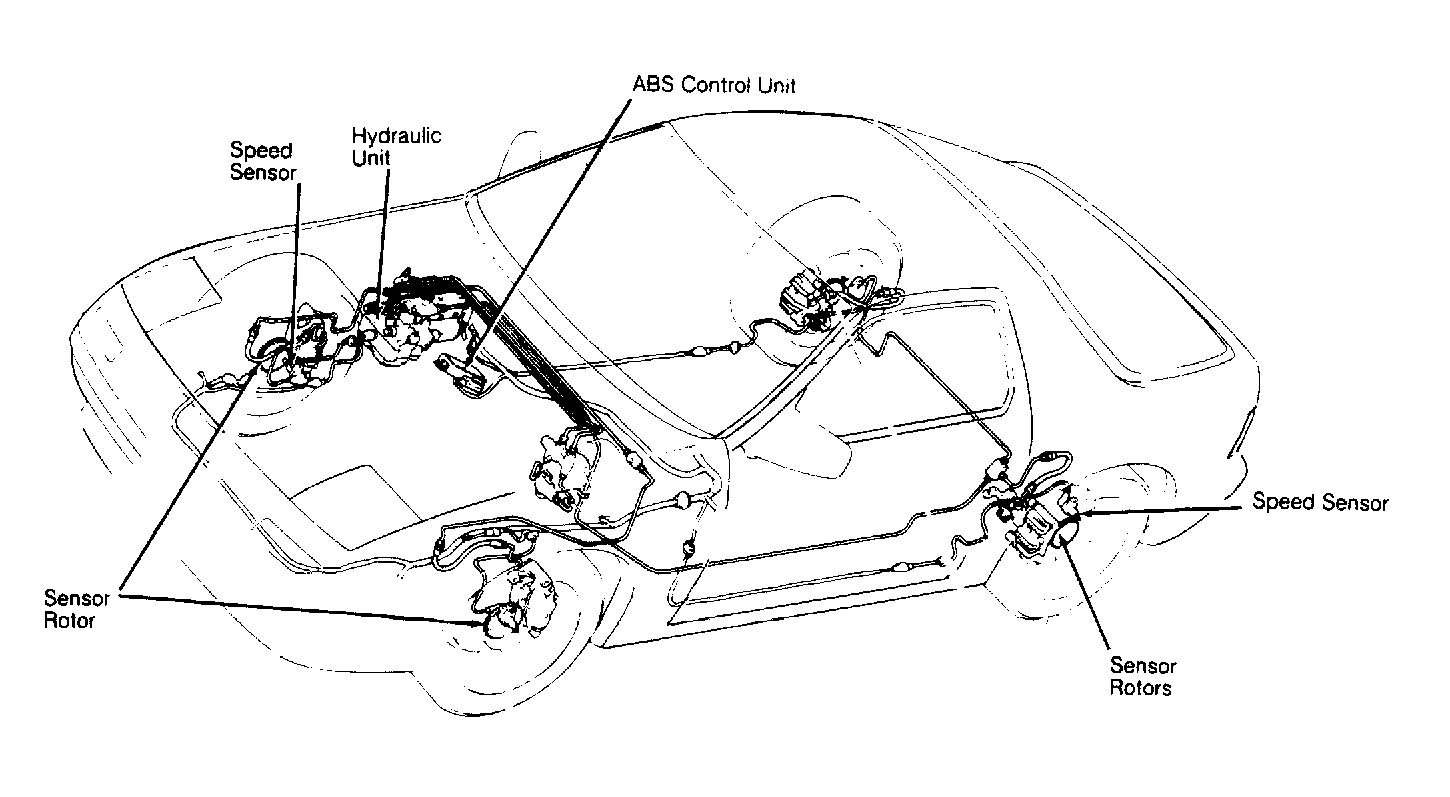

Fig 2: Locating ABS Components (RX7 Shown; Miata Similar)

Courtesy of MAZDA MOTORS CORP.

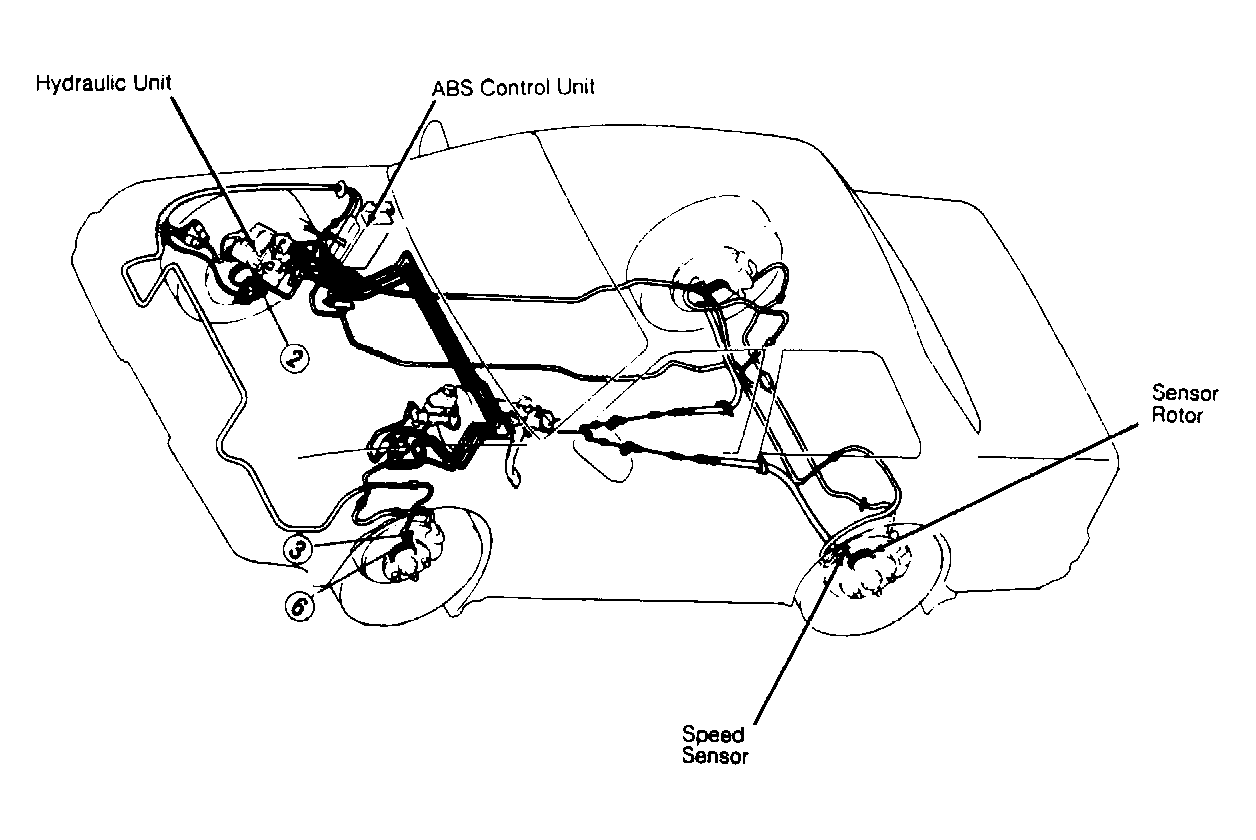

Fig 3: Locating ABS Components (929)

Courtesy of MAZDA MOTORS CORP.
