6B. Dynamic Wheel Sensor Test

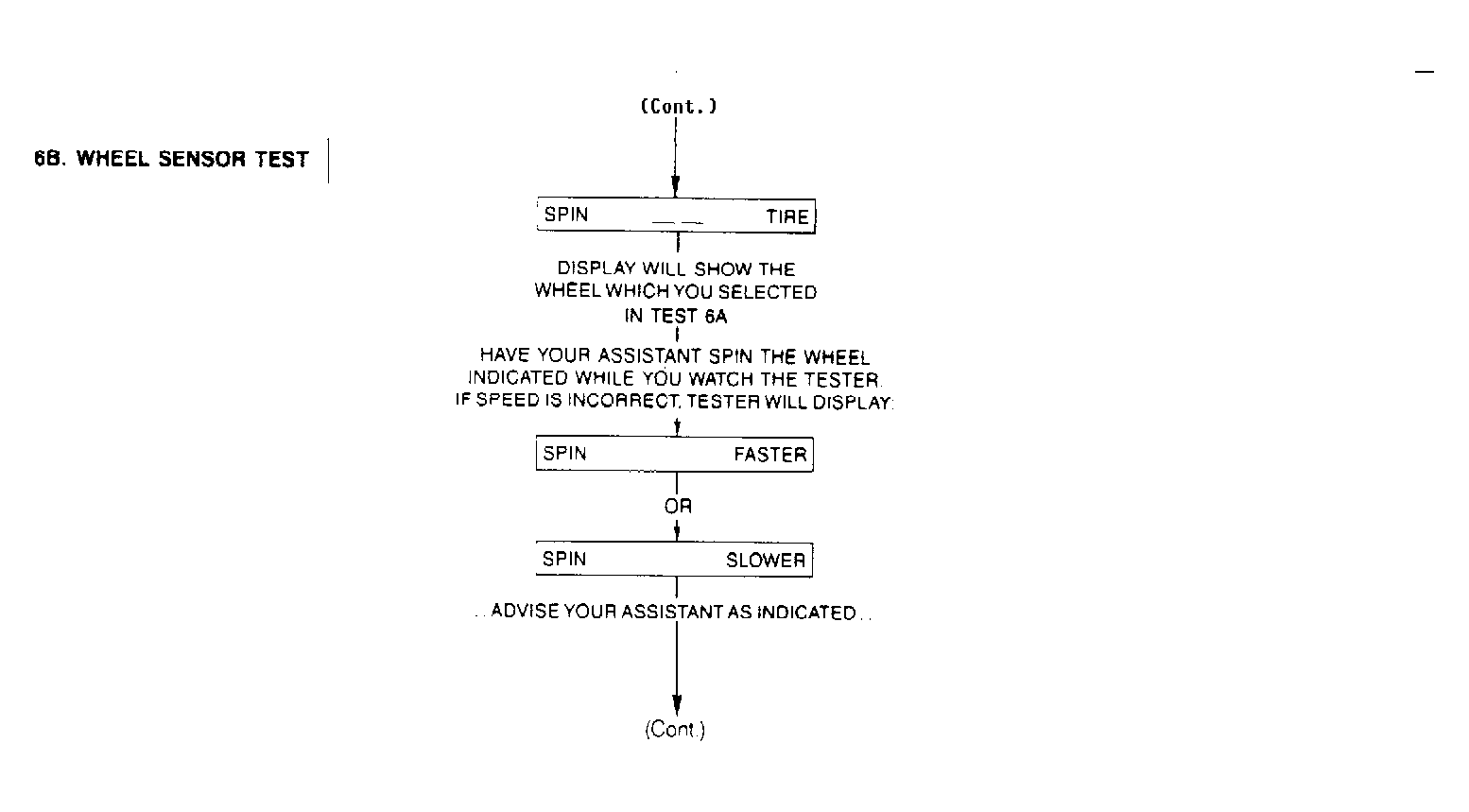

Fig 1: 6B. Dynamic Wheel Sensor Test (1 of 2)
G90A09982Courtesy of MAZDA MOTORS CORP.

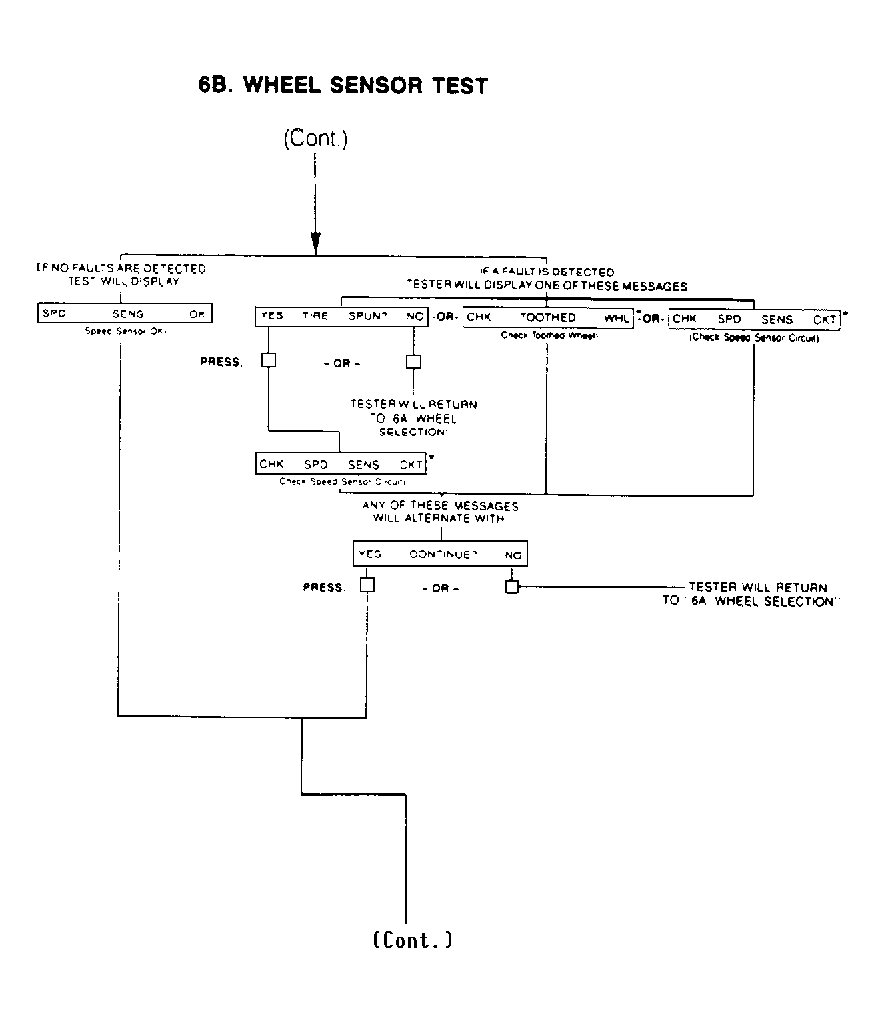

Fig 2: 6B. Dynamic Wheel Sensor Test (2 of 2)
G90F09908Courtesy of MAZDA MOTORS CORP.
