Operational Test (929)

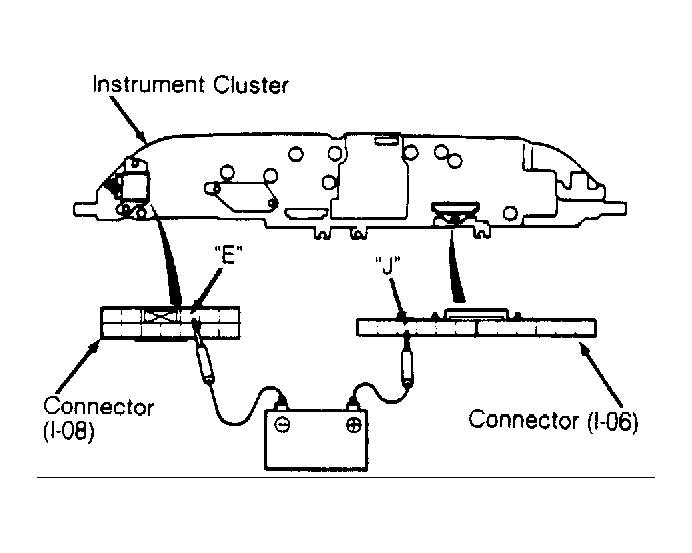

- Start engine, and observe ANTI-LOCK light. Light should illuminate for a few seconds. If light does not illuminate as described, remove instrument cluster. Connect 12 volts to terminal "J" of instrument cluster connector I-06. See Fig 3
. Using a jumper wire, connect terminal "E" of instrument cluster connector I-08 to negative ground. ANTI-LOCK light should illuminate. If light does not illuminate, check bulb. If bulb is okay, check meter fuse and wiring harness.
- Install instrument cluster, and recheck warning light operation. If light still does not illuminate for a few seconds, check wiring harness between ANTI-LOCK light and control unit and between ANTI-LOCK light and hydraulic unit. Check operation of hydraulic unit valve relay.

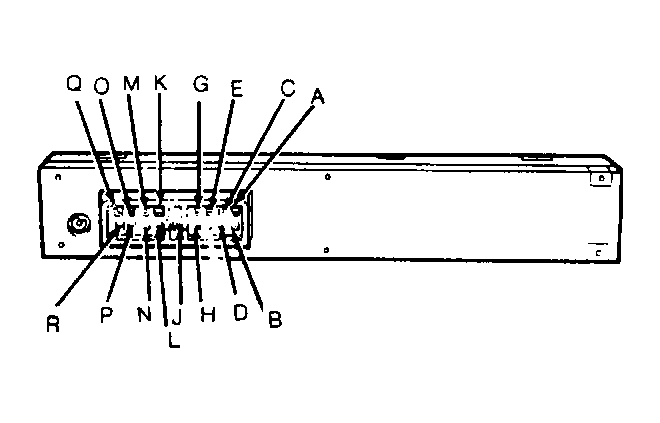

Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
