Wiring Diagrams

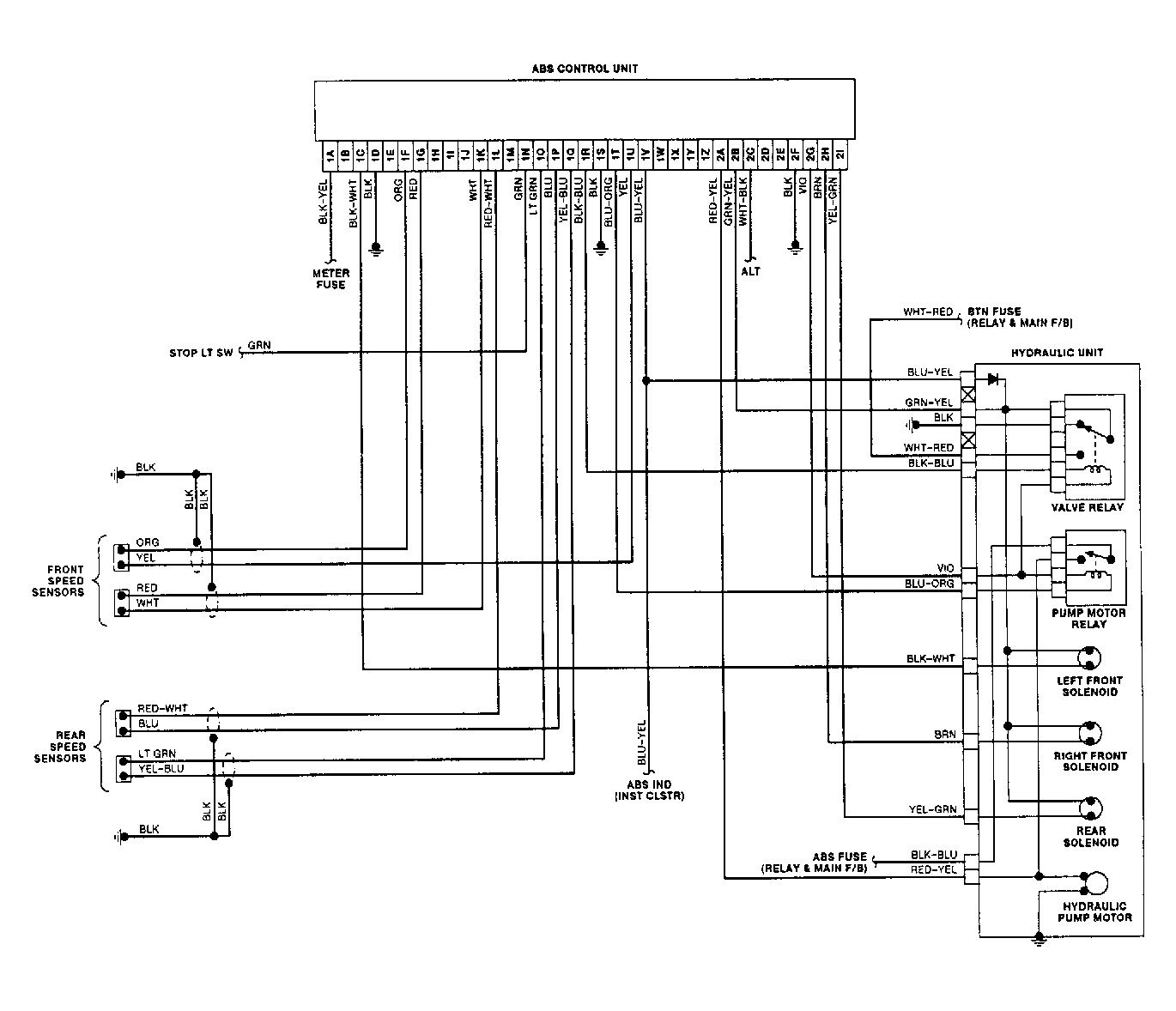

Fig 1: Anti-Lock Brake System Wiring Diagram (Miata)
G92E01054

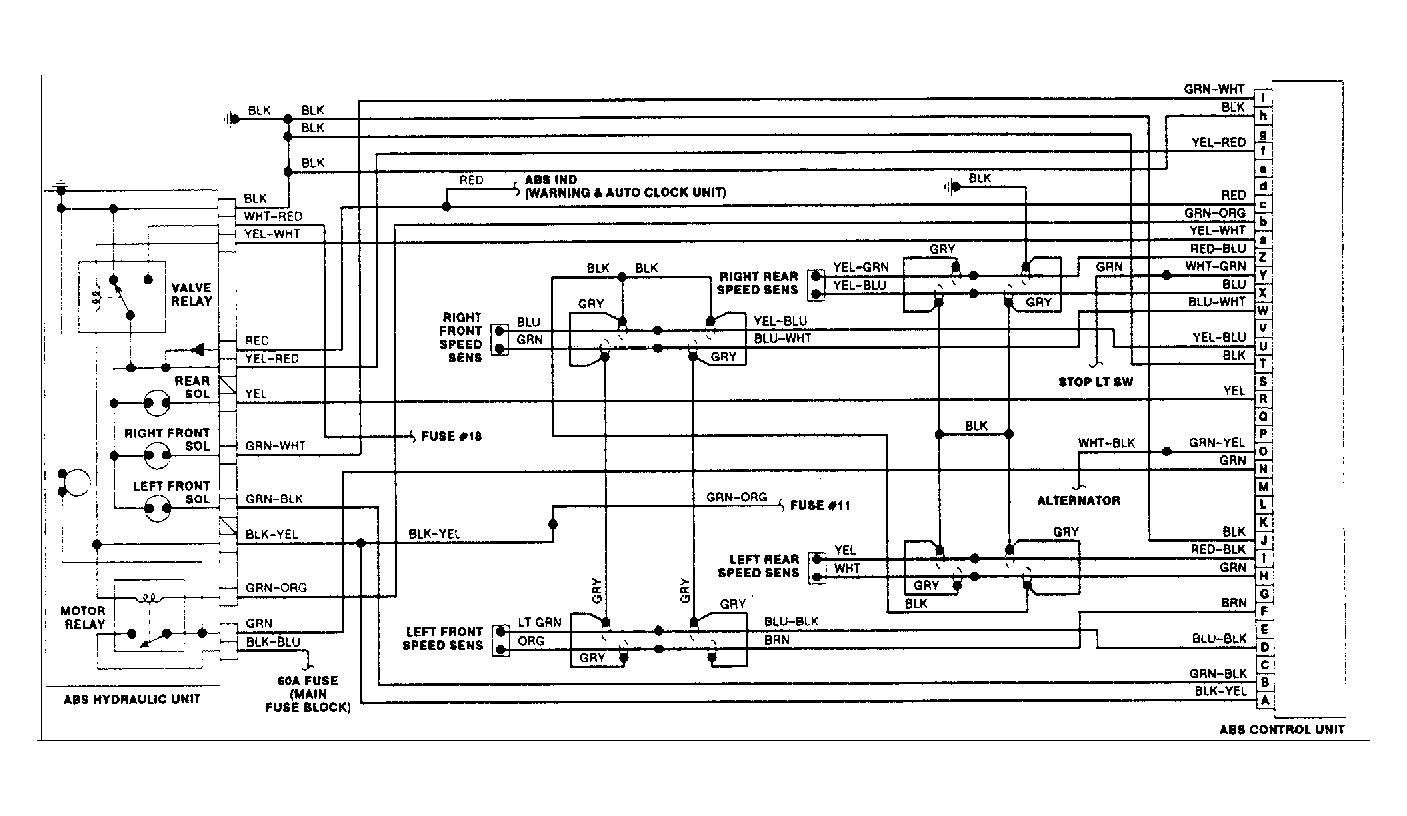

Fig 2: Anti-Lock Brake System Wiring Diagram (RX7)
G91D02109

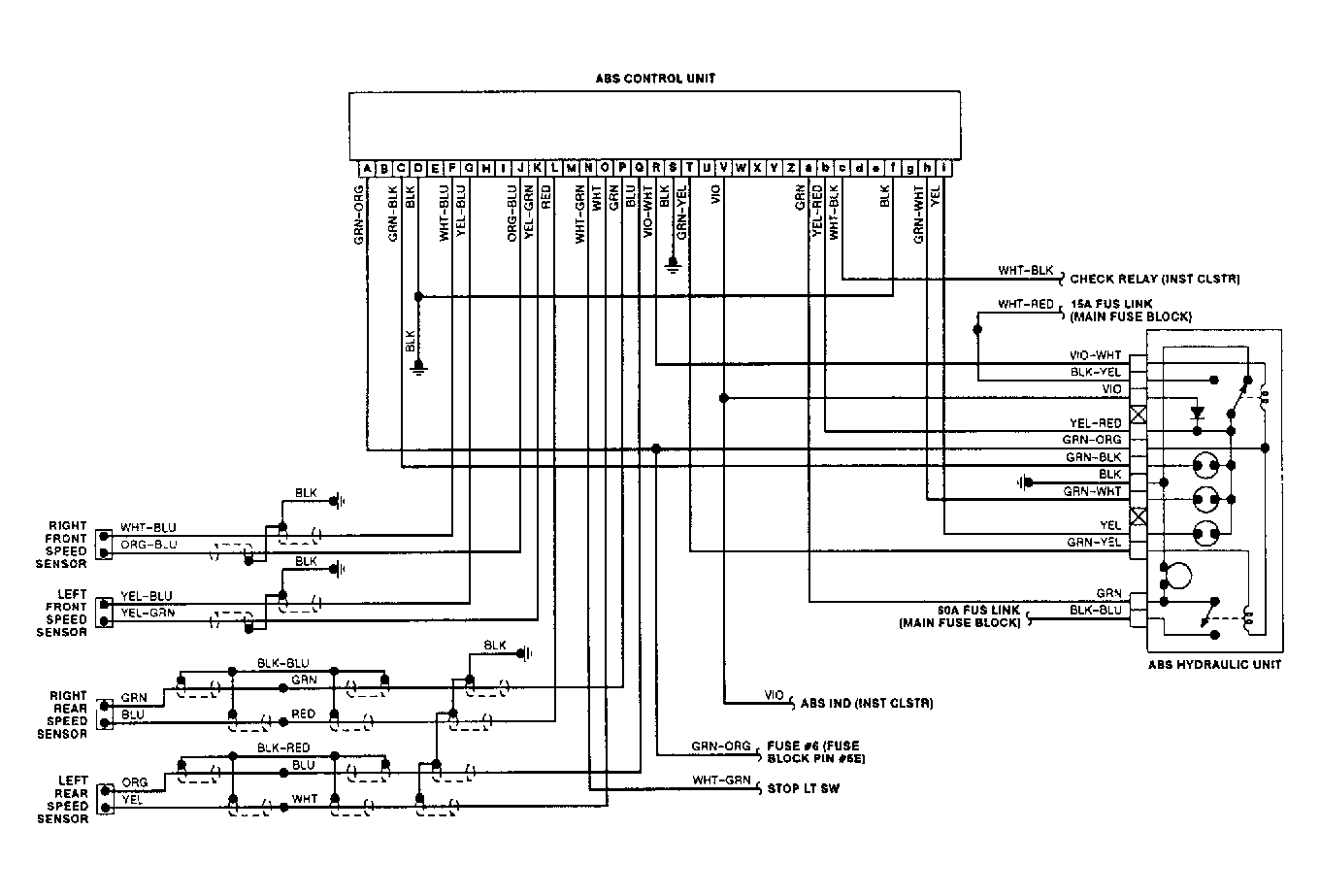

Fig 3: Anti-Lock Brake System Wiring Diagram (929)
G92H01060
