Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Auto Adjust Suspension (AAS) Control Unit | In trunk, on right side. |

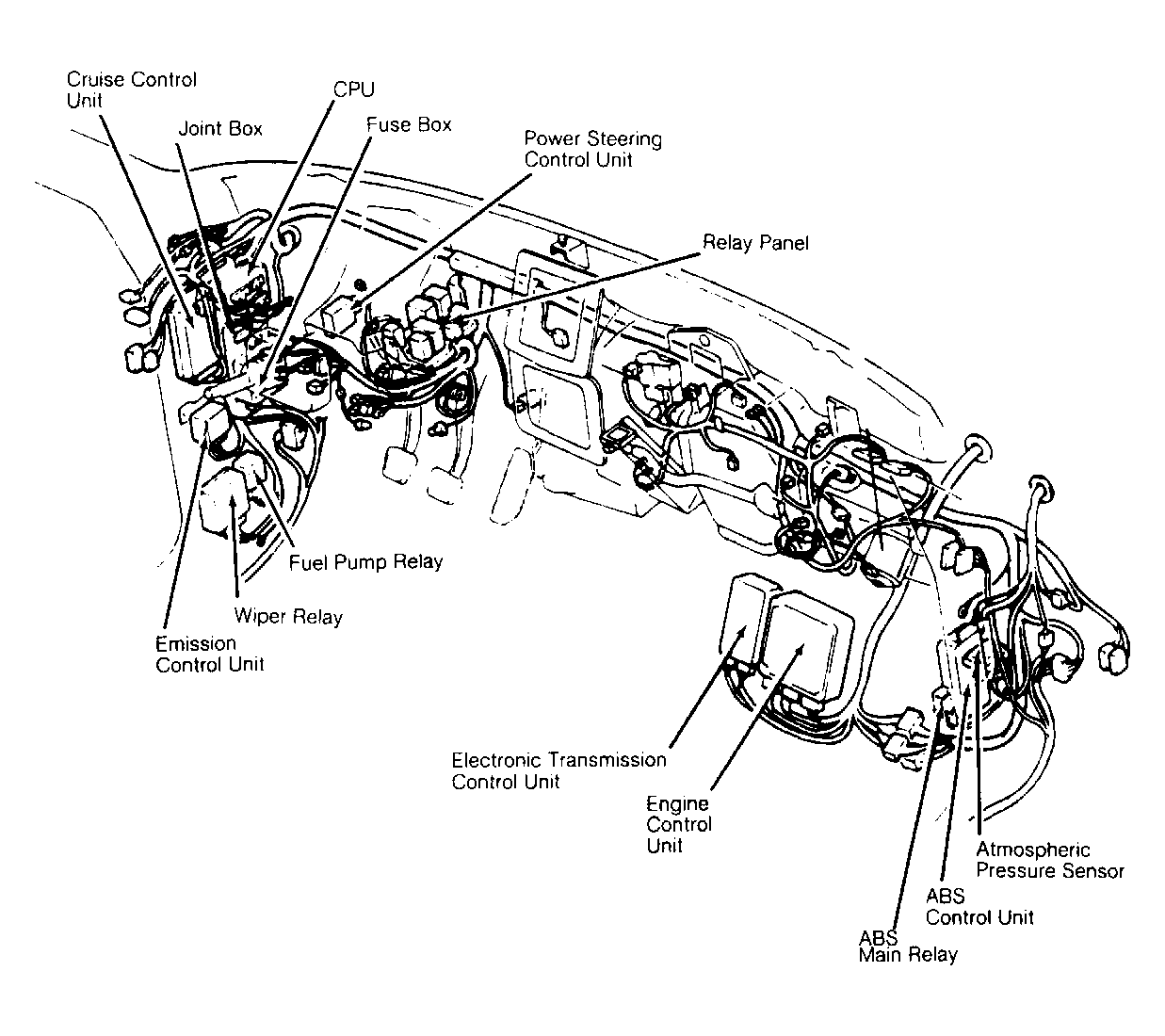

| ABS Control Unit | Behind right front kick panel. See Figure . |
| A/C Control Unit | Behind A/C control panel. See Figure . |
| Central Processing Unit (CPU) | Above passenger compartment fuse box. See Figure . |
| Cruise Control Unit | Behind left front kick panel. See Figure . |
| Electronic Transmission Control Unit | Behind glove box, next to ECU. See Figure . |
| Emission Control Unit (ECU) | Behind left front kick panel. See Figure . |
| Engine Control Unit (ECU) | Behind glove box. See Figure . |

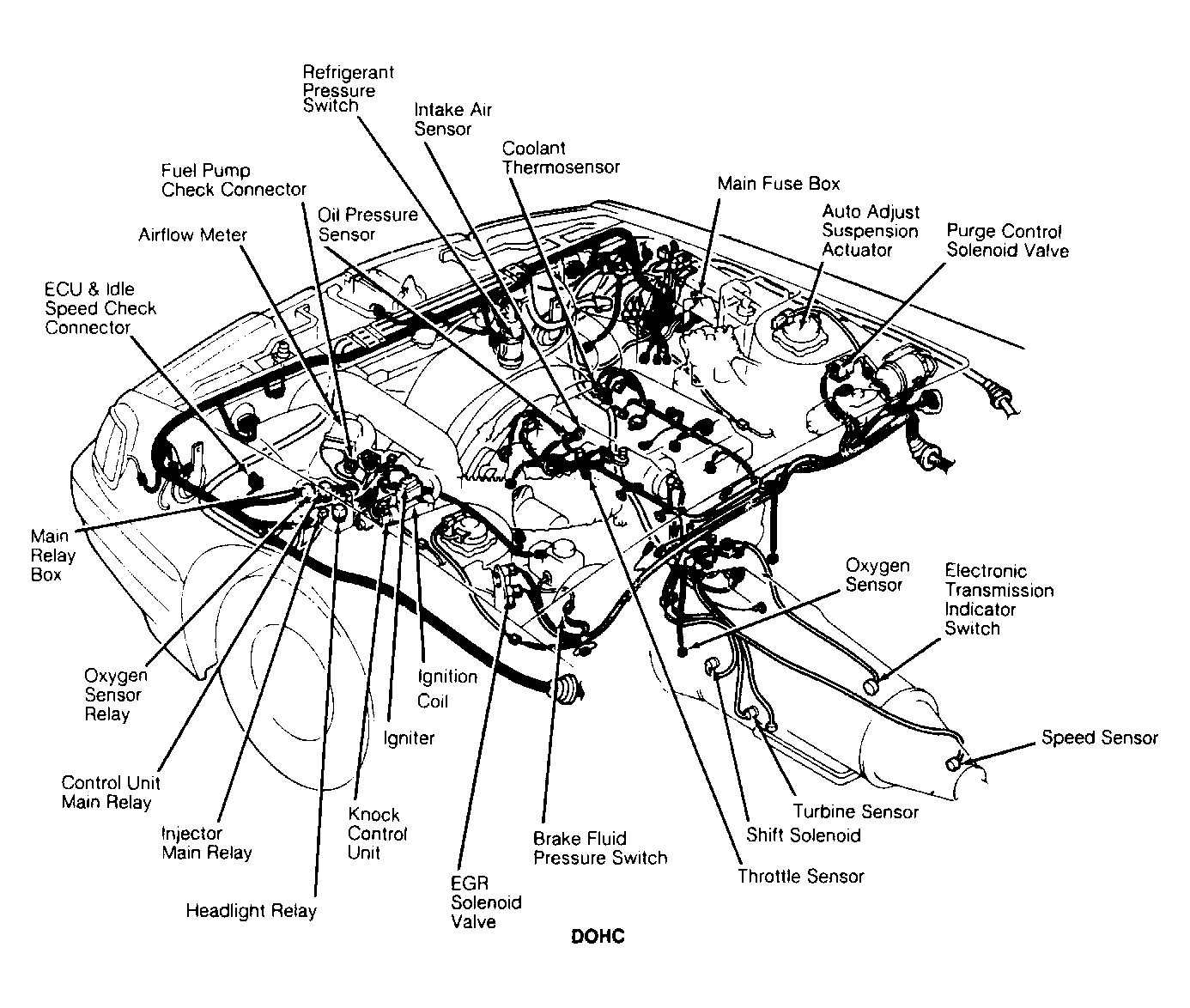

| Knock Control Unit | In front of left shock tower, next to main relay box. See Figure . |
| Power Steering Control Unit | Under left side of dash, near CPU. See Figure . |
| Theft Deterrent Control Unit | In CPU. |
