DOHC Charts

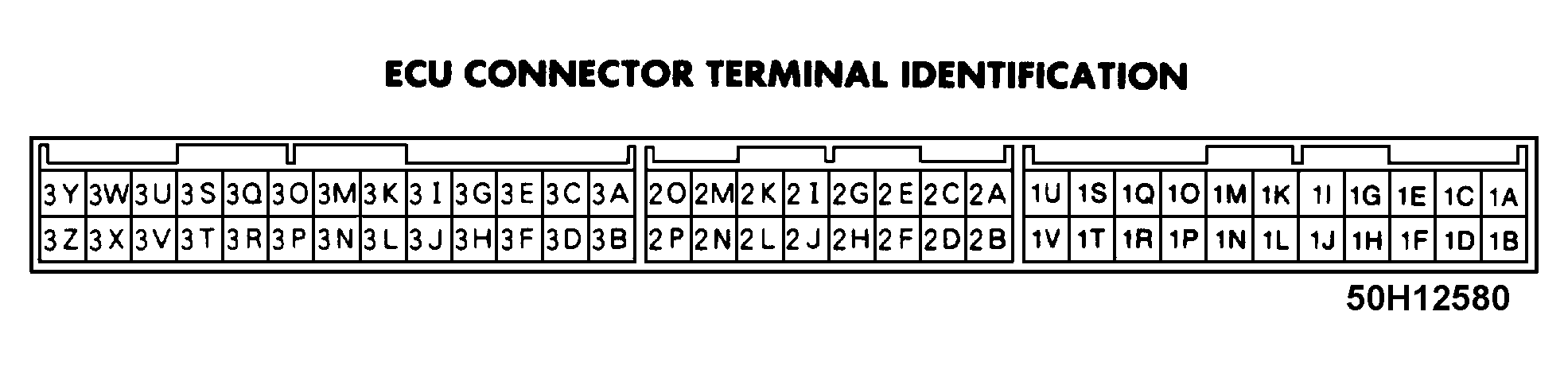

Fig 1: ECU Connector Terminal ID - DOHC

G50H12580

Courtesy of MAZDA MOTORS CORP.

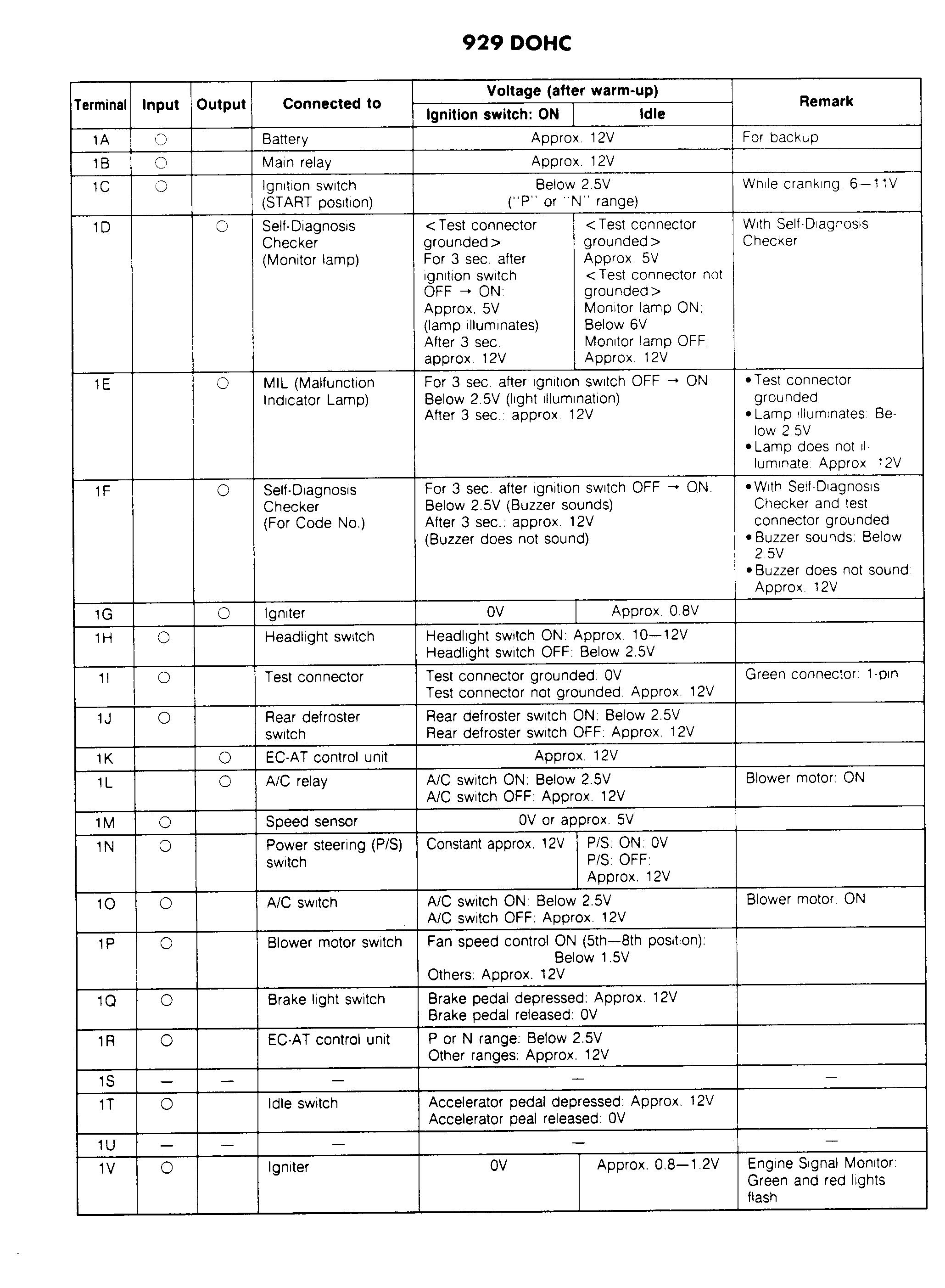

Fig 2: ECU Pin Voltage Chart - DOHC (1 of 3)

G90E22073

Courtesy of MAZDA MOTORS CORP.

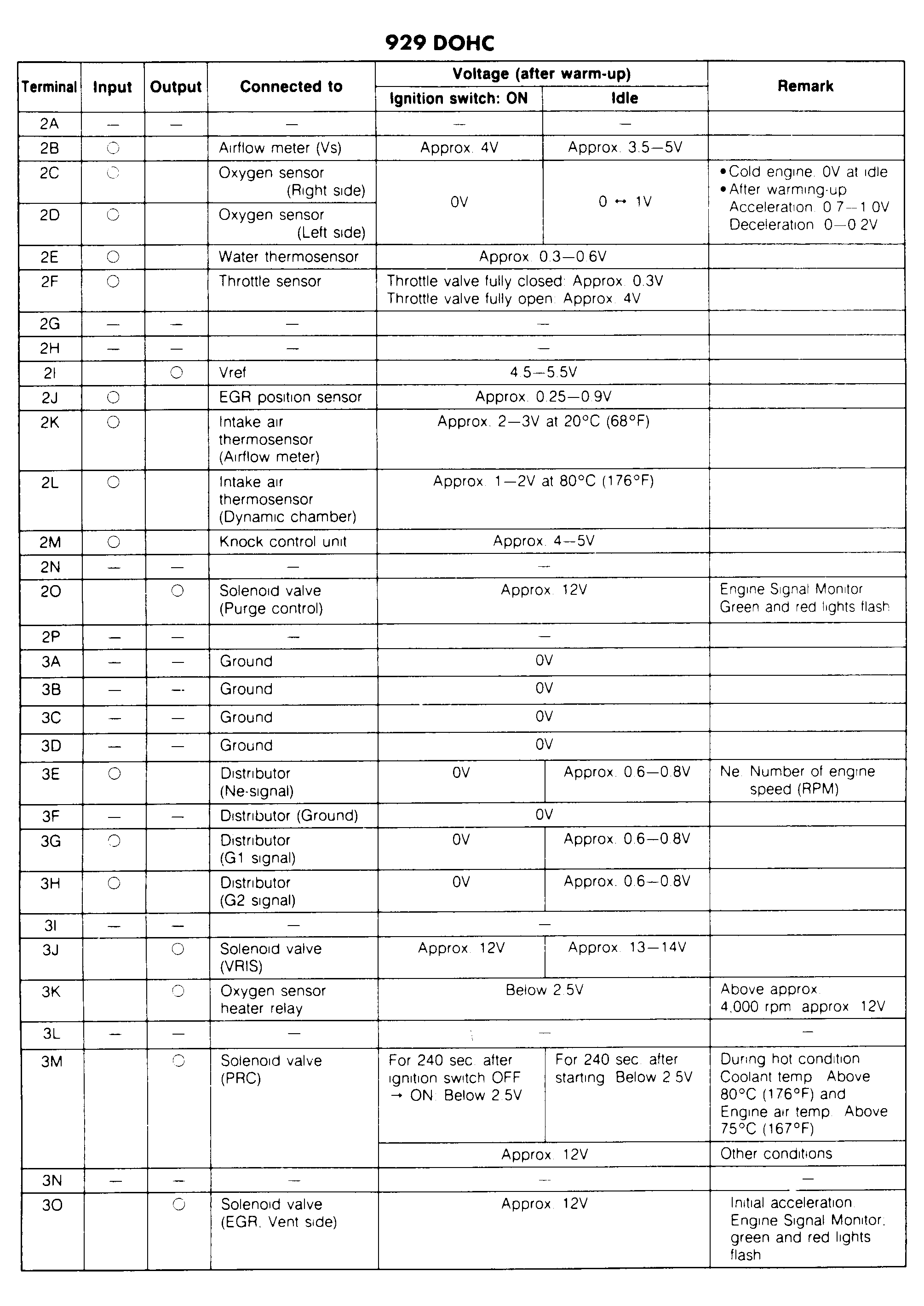

Fig 3: ECU Pin Voltage Chart - DOHC (2 of 3)

G90F22074

Courtesy of MAZDA MOTORS CORP.

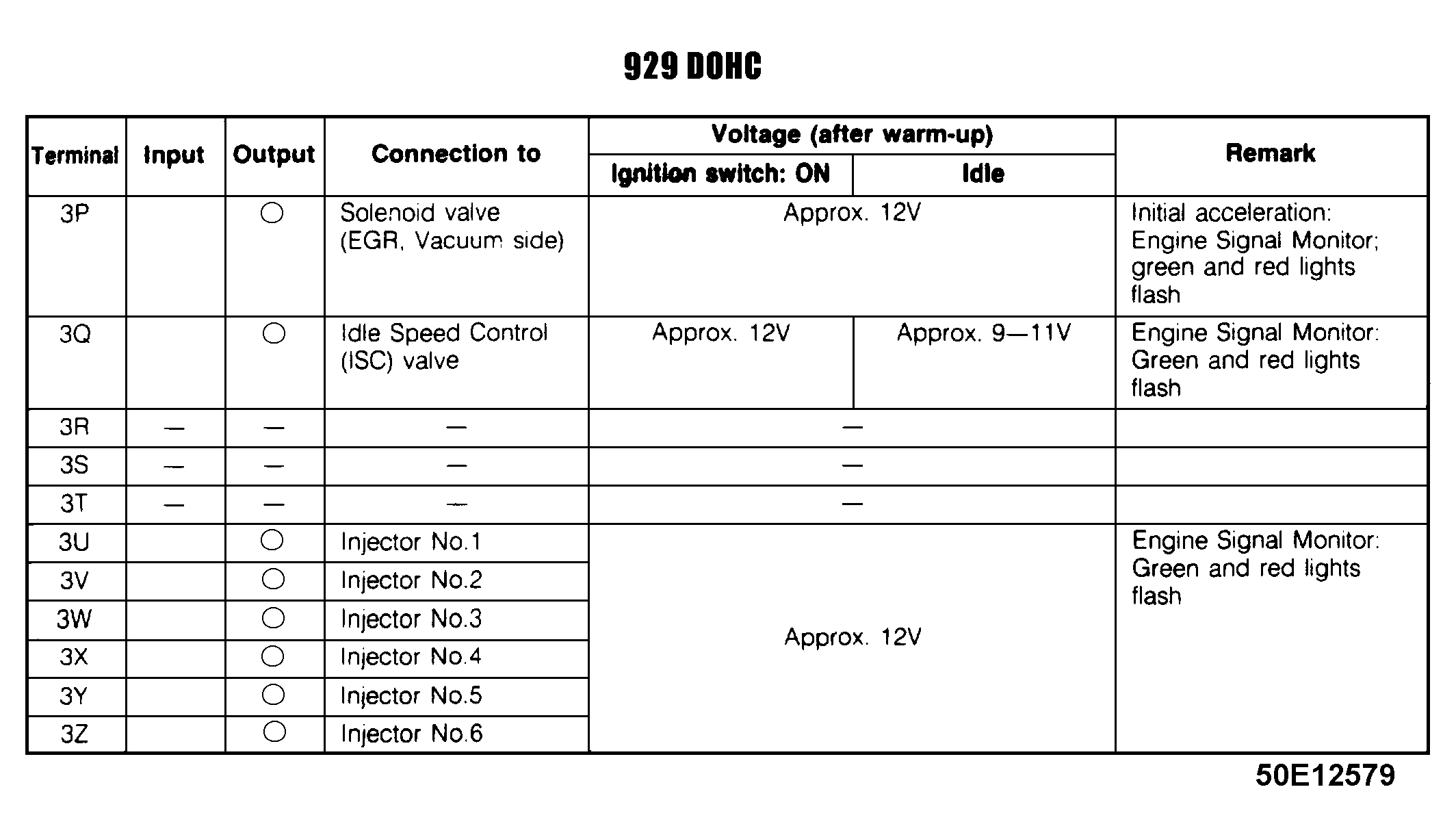

Fig 4: ECU Pin Voltage Chart - DOHC (3 of 3)

G50E12579

Courtesy of MAZDA MOTORS CORP.
