SOHC Charts

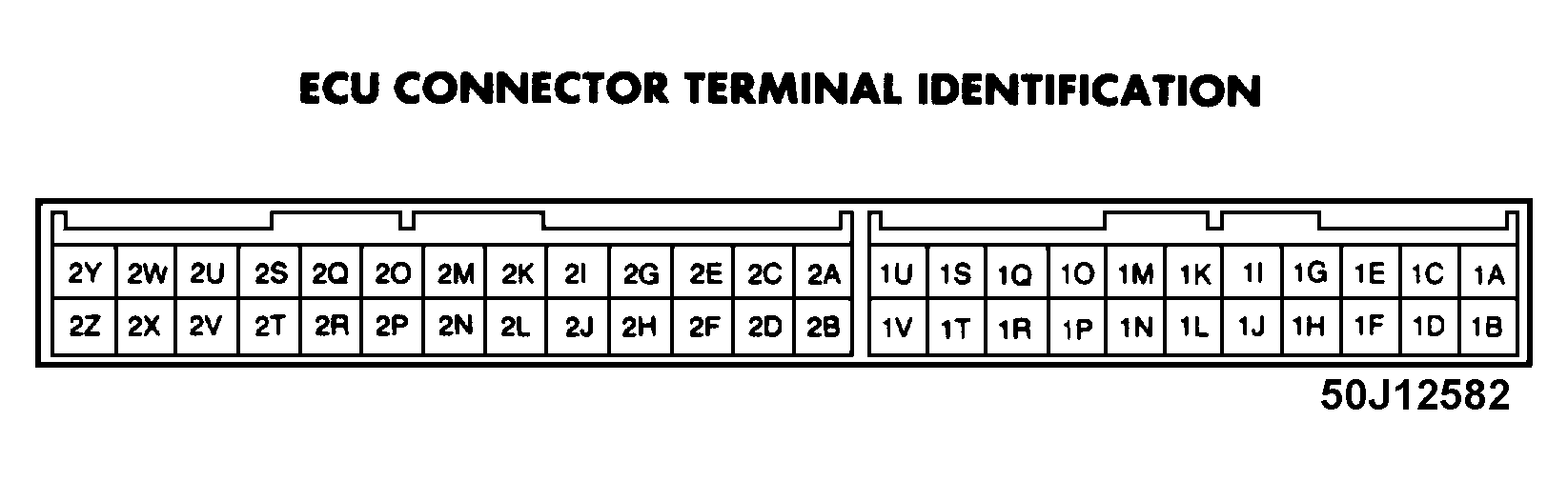

Fig 1: ECU Connector Terminal ID - SOHC

G50J12582

Courtesy of MAZDA MOTORS CORP.

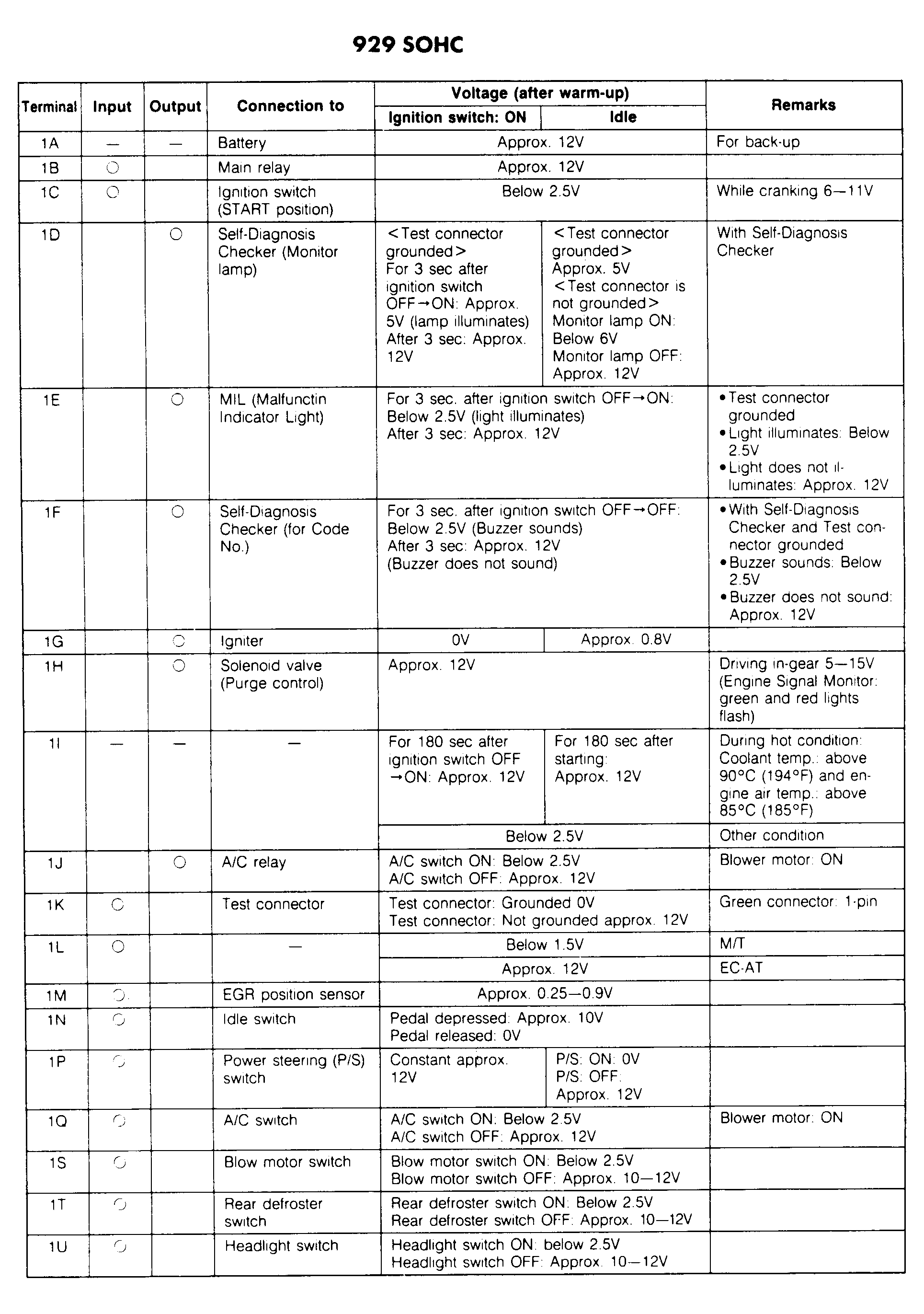

Fig 2: ECU Pin Voltage Chart - SOHC (1 of 3)

G90G22075

Courtesy of MAZDA MOTORS CORP.

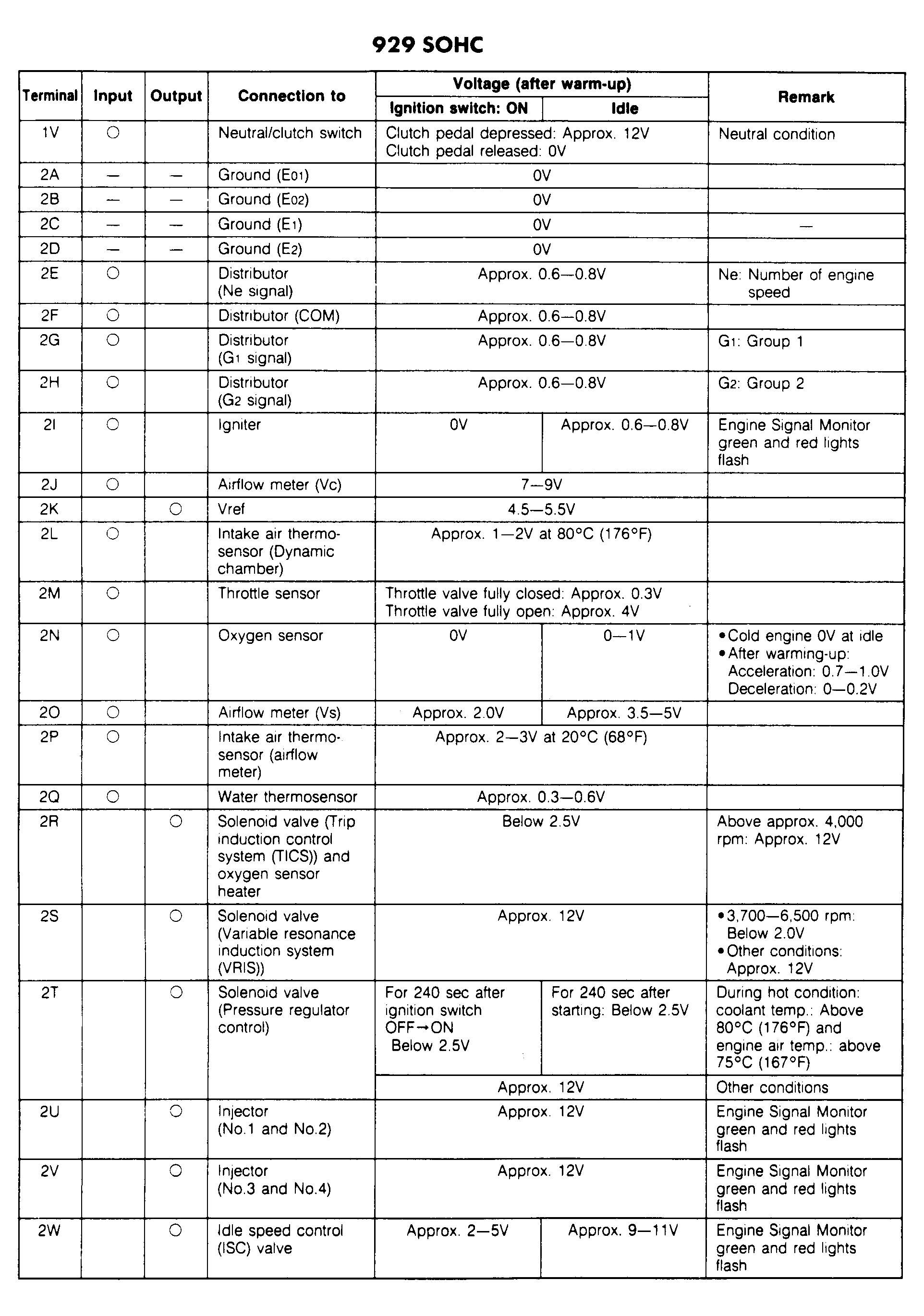

Fig 3: ECU Pin Voltage Chart - SOHC (2 of 3)

G90H22076

Courtesy of MAZDA MOTORS CORP.

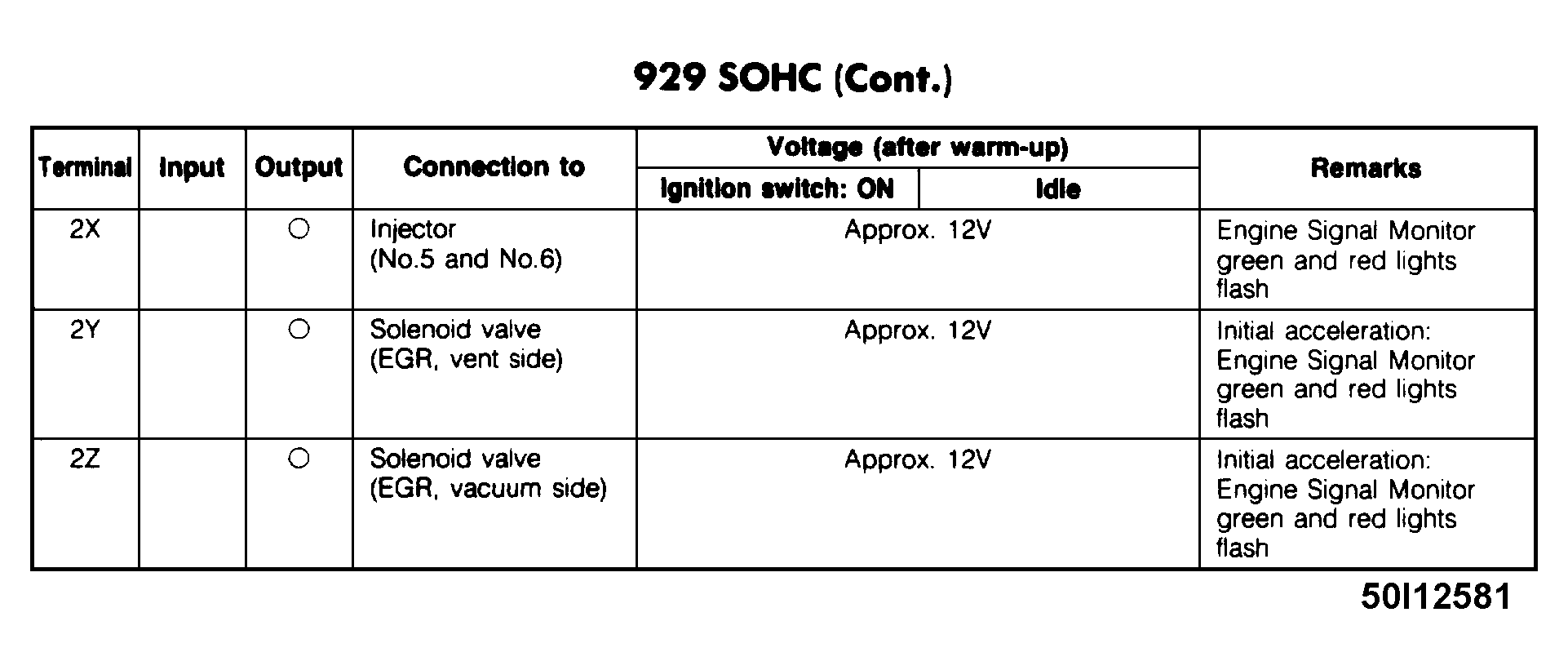

Fig 4: ECU Pin Voltage Chart - SOHC (3 of 3)

G50I12581

Courtesy of MAZDA MOTORS CORP.
