Float Drop

Position air horn upright. Allow float to hang by its own weight. Measure clearance between bottom of float and air horn. Float drop must be within specification. Bend float stop for adjustment. See Fig 1 . See B2200 CARBURETOR ADJUSTMENT SPECIFICATIONS  table.

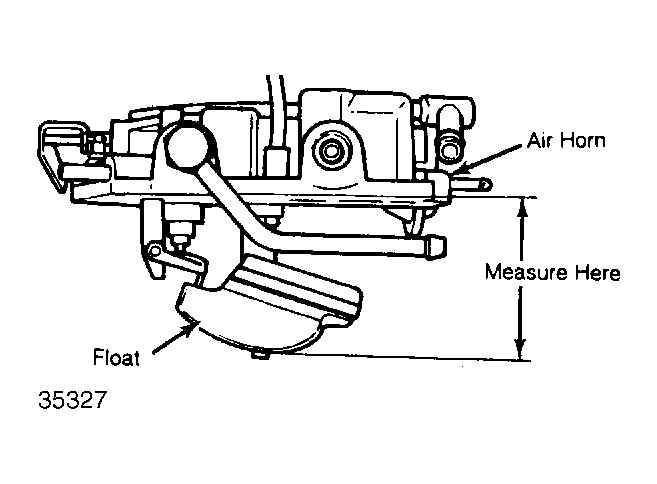

Fig 1: Adjusting Float Drop

Courtesy of MAZDA MOTORS CORP.
