System Inspection

Purge system operation takes place when the following conditions are met. Vehicle is accelerating in gear (off idle), engine is at operating temperature and oxygen sensor is functioning normally. See Fig 1 .

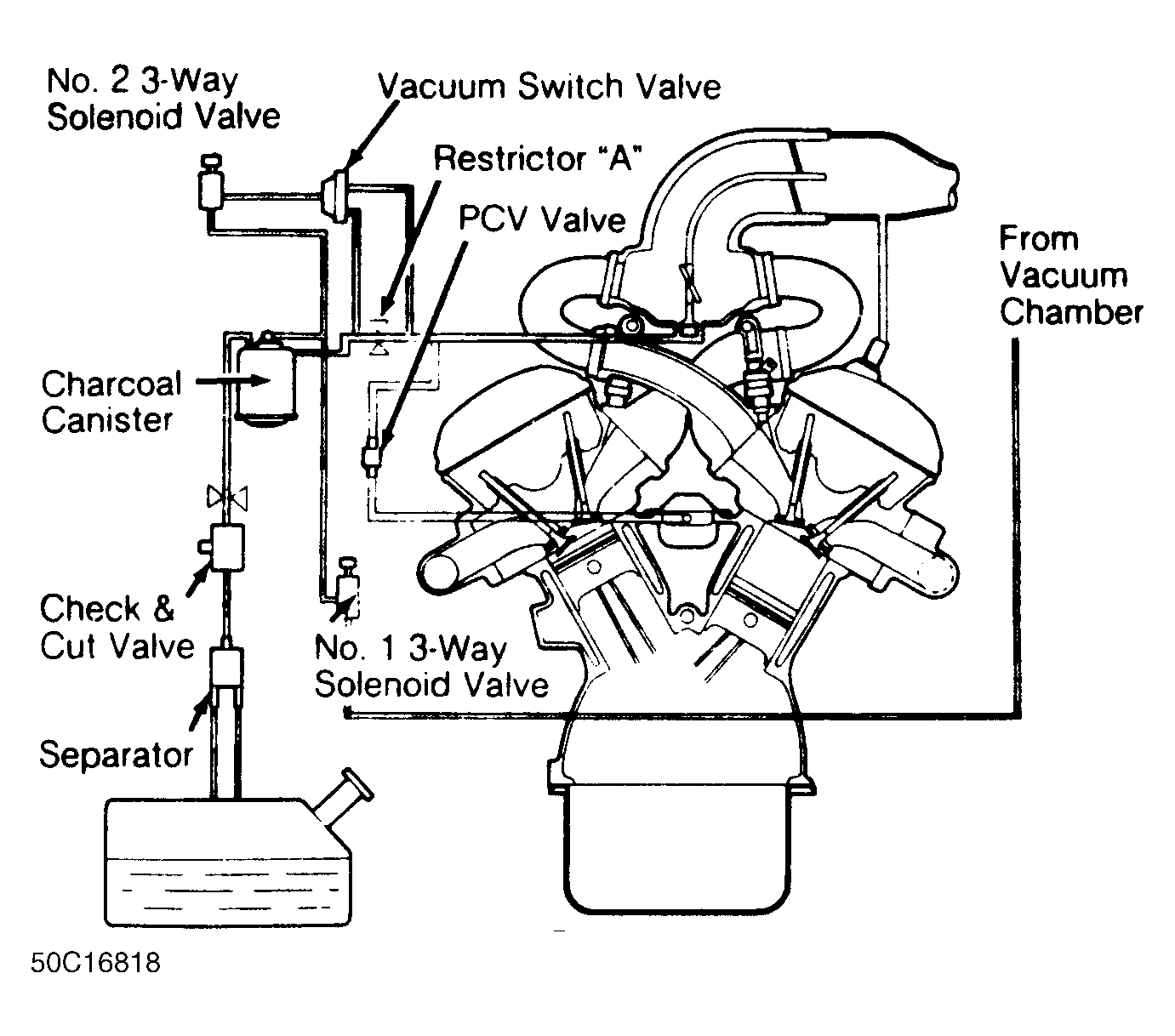

Fig 1: Fuel Evaporation Control System

Courtesy of MAZDA MOTORS CORP.
