Solenoid Valve

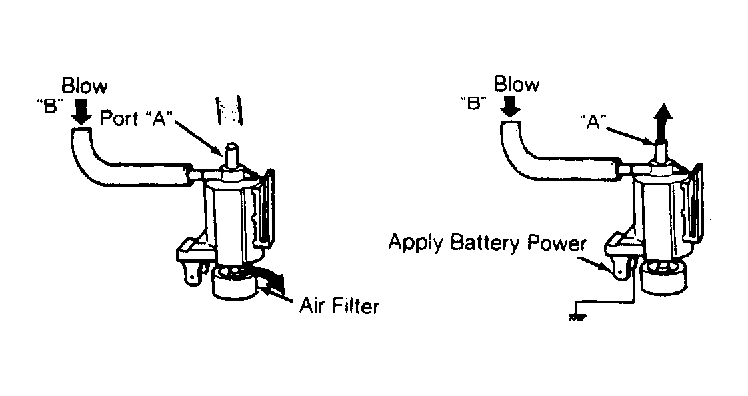

Disconnect vacuum hose from solenoid valve port "A". Blow through port "B". See Figure . Verify air flows from valve air filter. Disconnect solenoid valve connector and connect 12 volts and a ground to solenoid valve terminals. See Figure . Blow through valve port "B" and ensure air flows from port "A". Replace if necessary.
