Code 1: DOHC Ignition Pulse

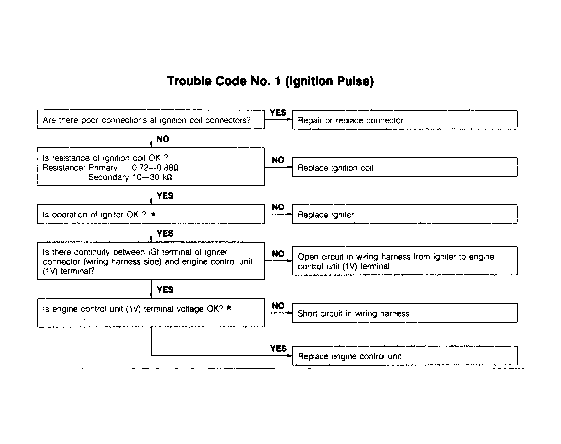

Fig 1: Codes 1: Ignition Pulse Flow Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
