Code 12: DOHC Throttle Sensor

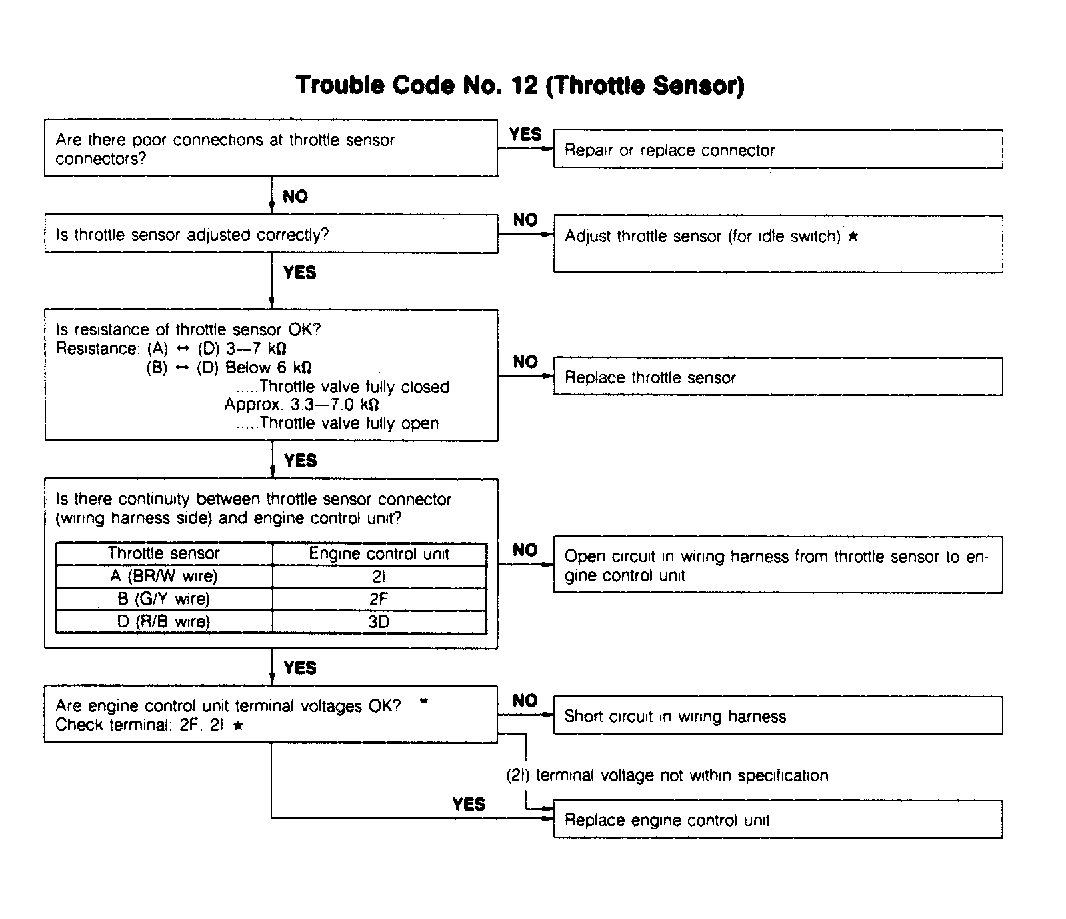

Fig 1: Code 12: Throttle Sensor Flow Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
