Code 17: DOHC Left Side Feedback System

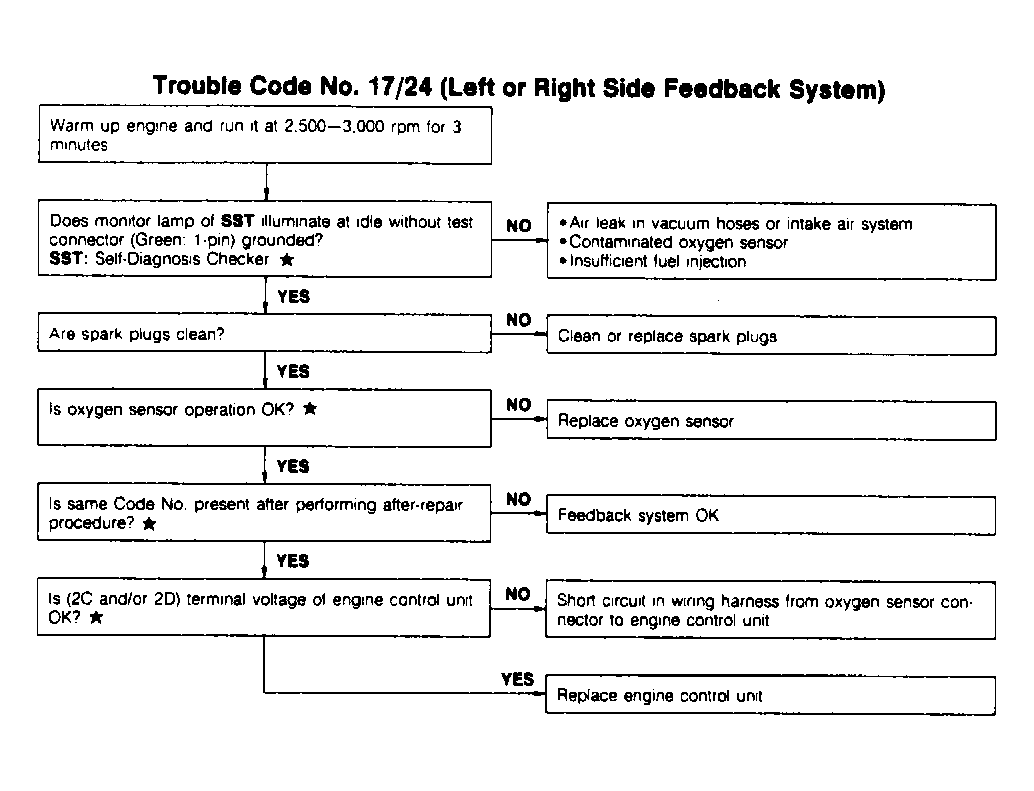

Fig 1: Code 17: Left Side Feedback System Flow Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
