Code 4: DOHC G2 Signal-Distributor

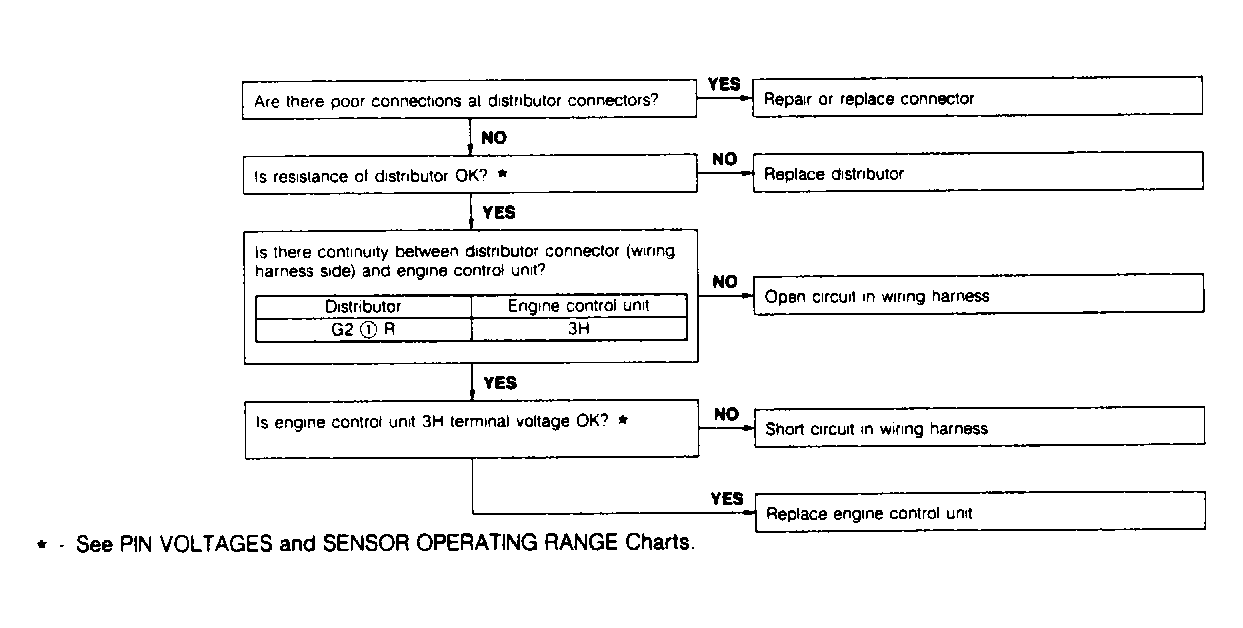

Fig 1: Code 4: G2 Signal-Distributor Flow Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
