Code 41: DOHC Variable Resonance Induction System

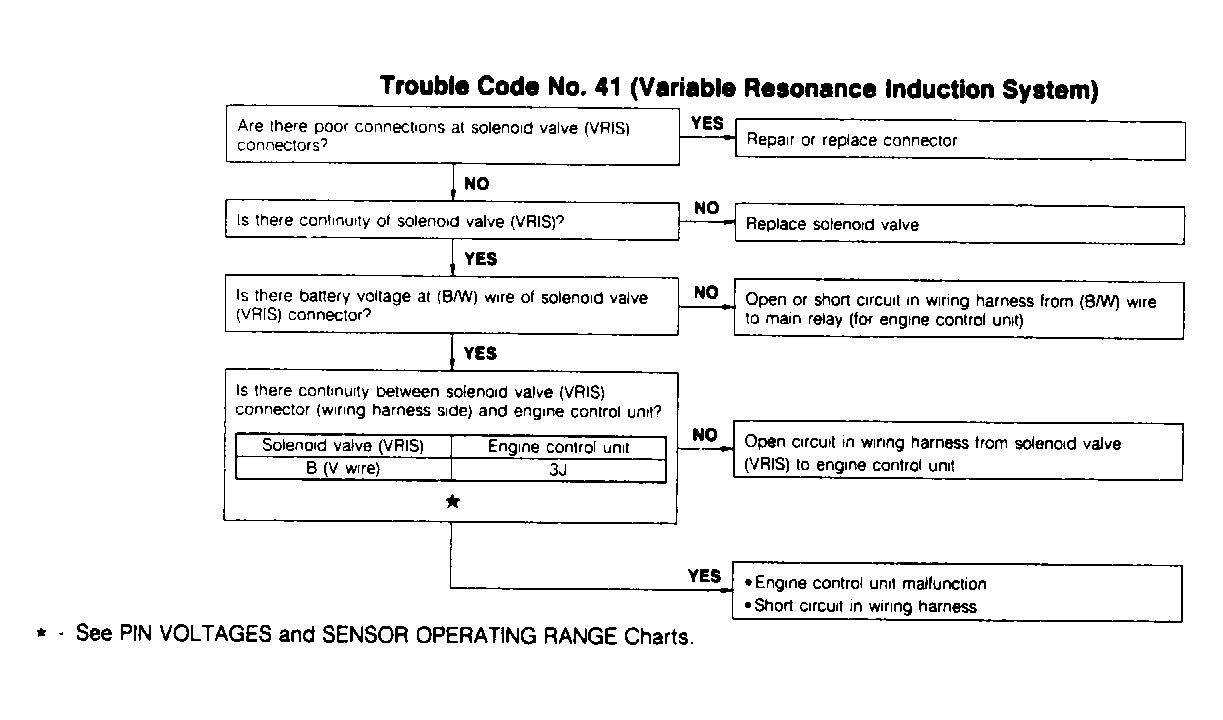

Fig 1: Code 41: Variable Resonance Induction System Flow Chart
G90G21572Courtesy of MAZDA MOTORS CORP.
