Code 5: DOHC Knock Sensor And Knock Control Unit

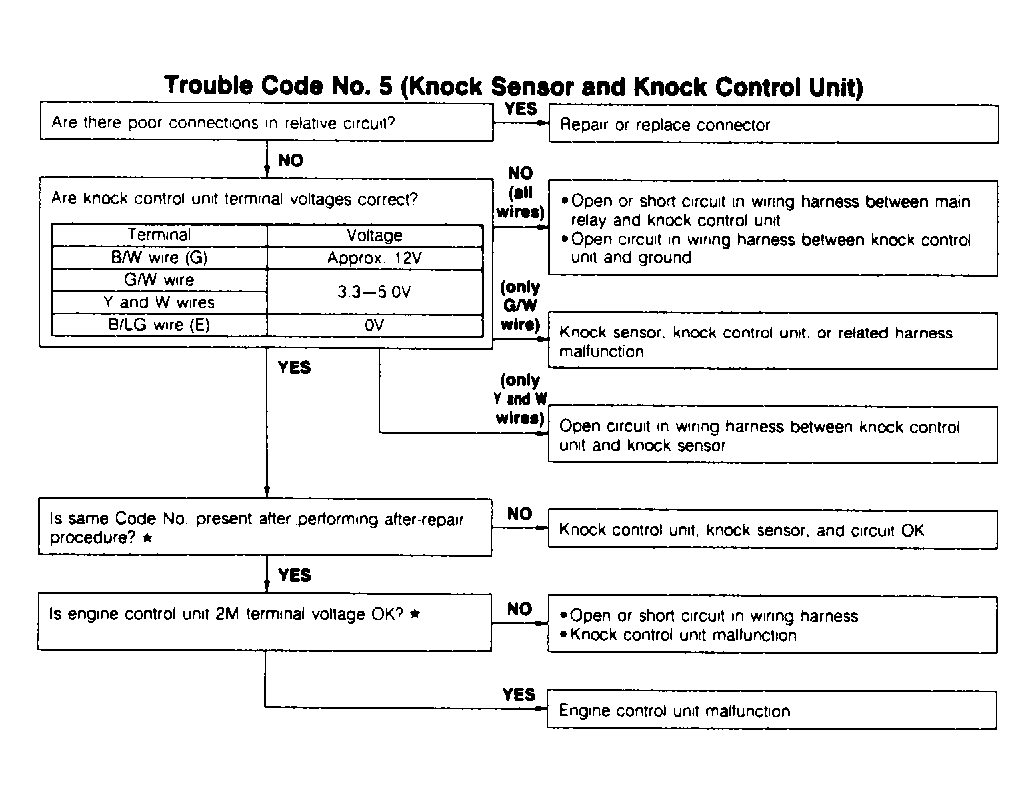

Fig 1: Code 5: Knock Sensor & Knock Control Flow Chart
G90G21556Courtesy of MAZDA MOTORS CORP.
