Code 11: SOHC Intake Air THERMOSENSOR-Dynamic Chamber

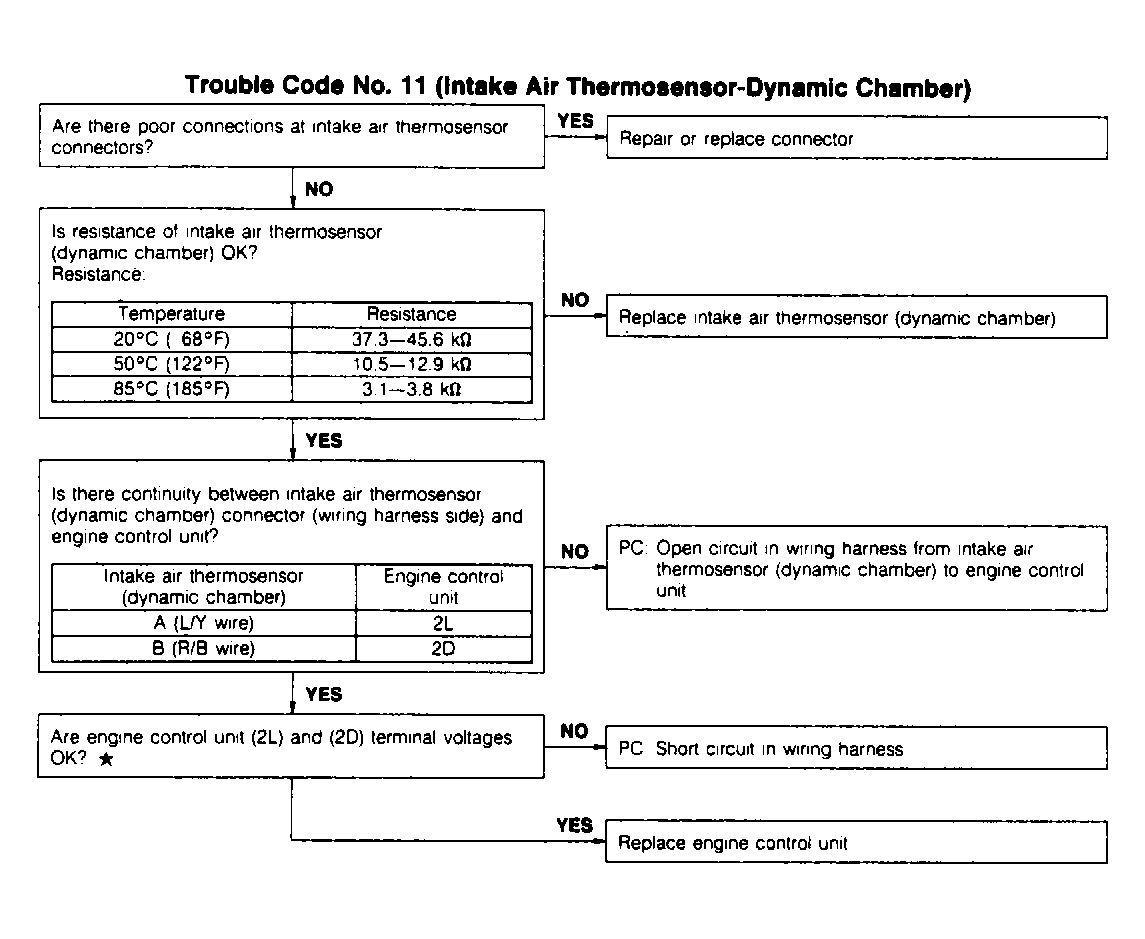

Fig 1: Code 11: Intake Air Thermosensor-Dynamic Chamber Flow Chart
G90B21528Courtesy of MAZDA MOTORS CORP.
