Code 16: SOHC EGR Position Sensor

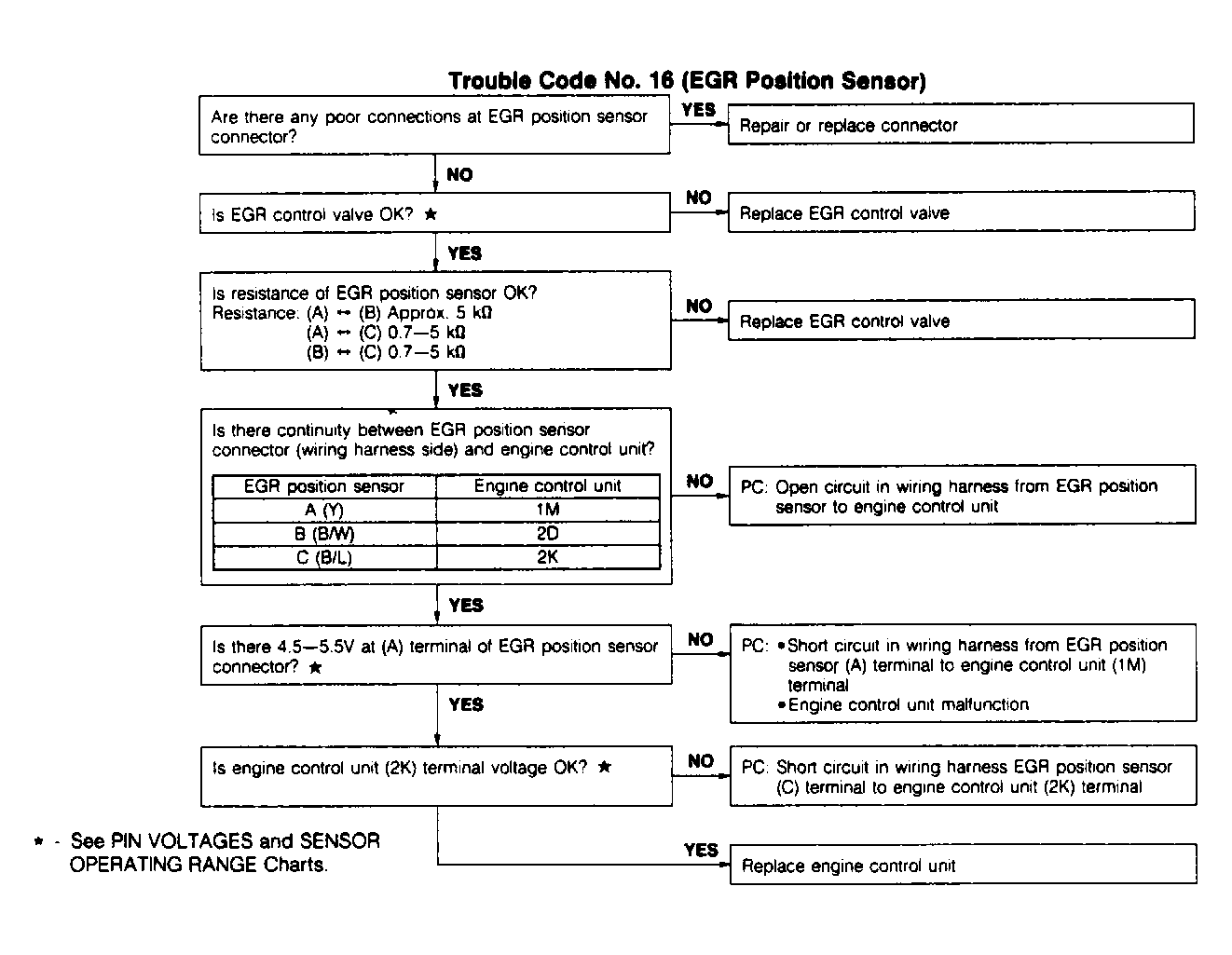

Fig 1: Code 16: EGR Position Sensor Flow Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
