Code 2: SOHC Ne Signal-Distributor

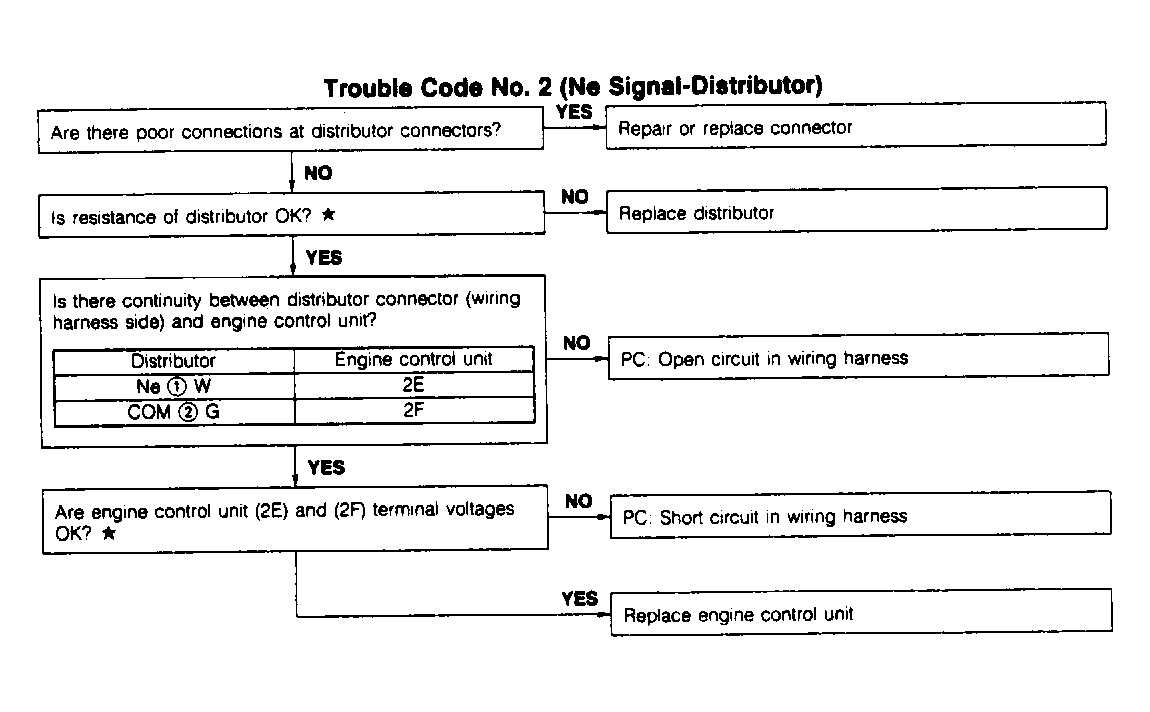

Fig 1: Code 2: NE Signal-Distributor Flow Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
