Code 25: SOHC Pressure Regulator Control Solenoid Valve

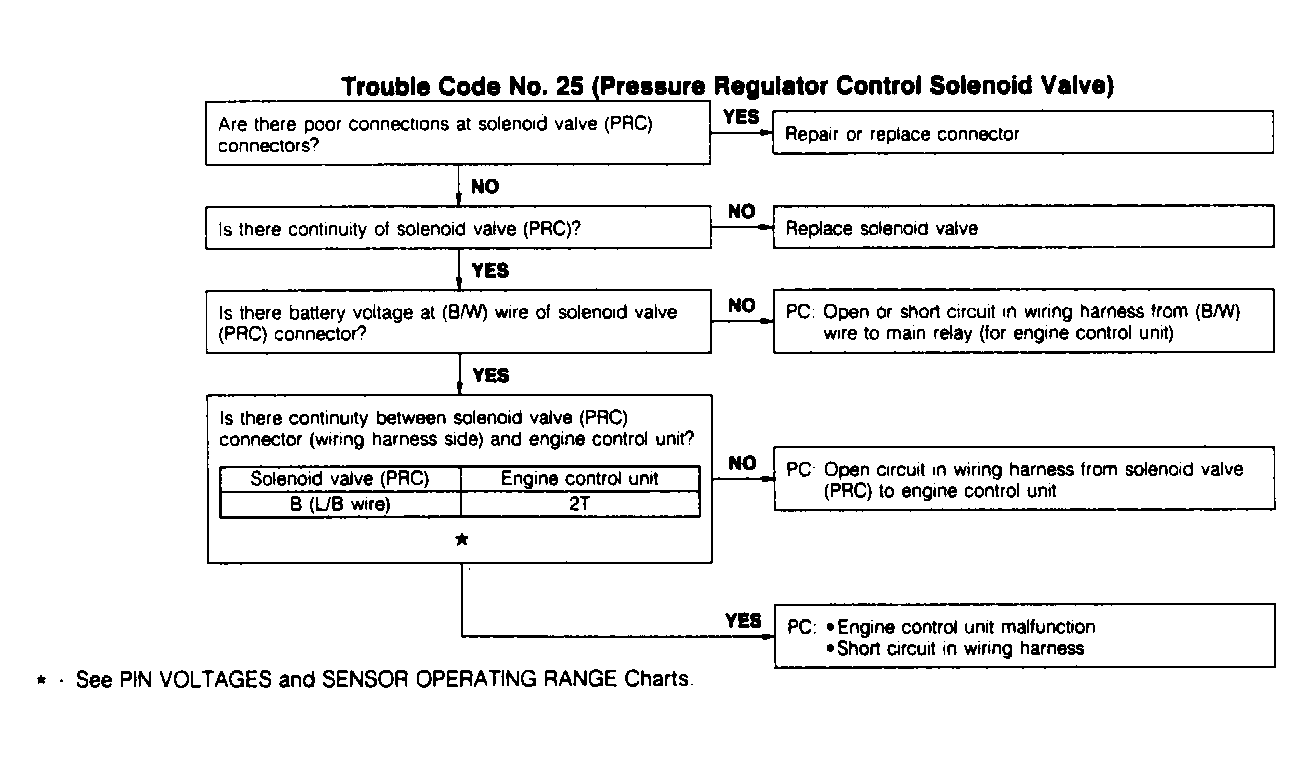

Fig 1: Code 25: Pressure Regulator Control Solenoid Valve Flow Chart
G90J21534Courtesy of MAZDA MOTORS CORP.
