Code 34: SOHC Idle Speed Control (ISC)

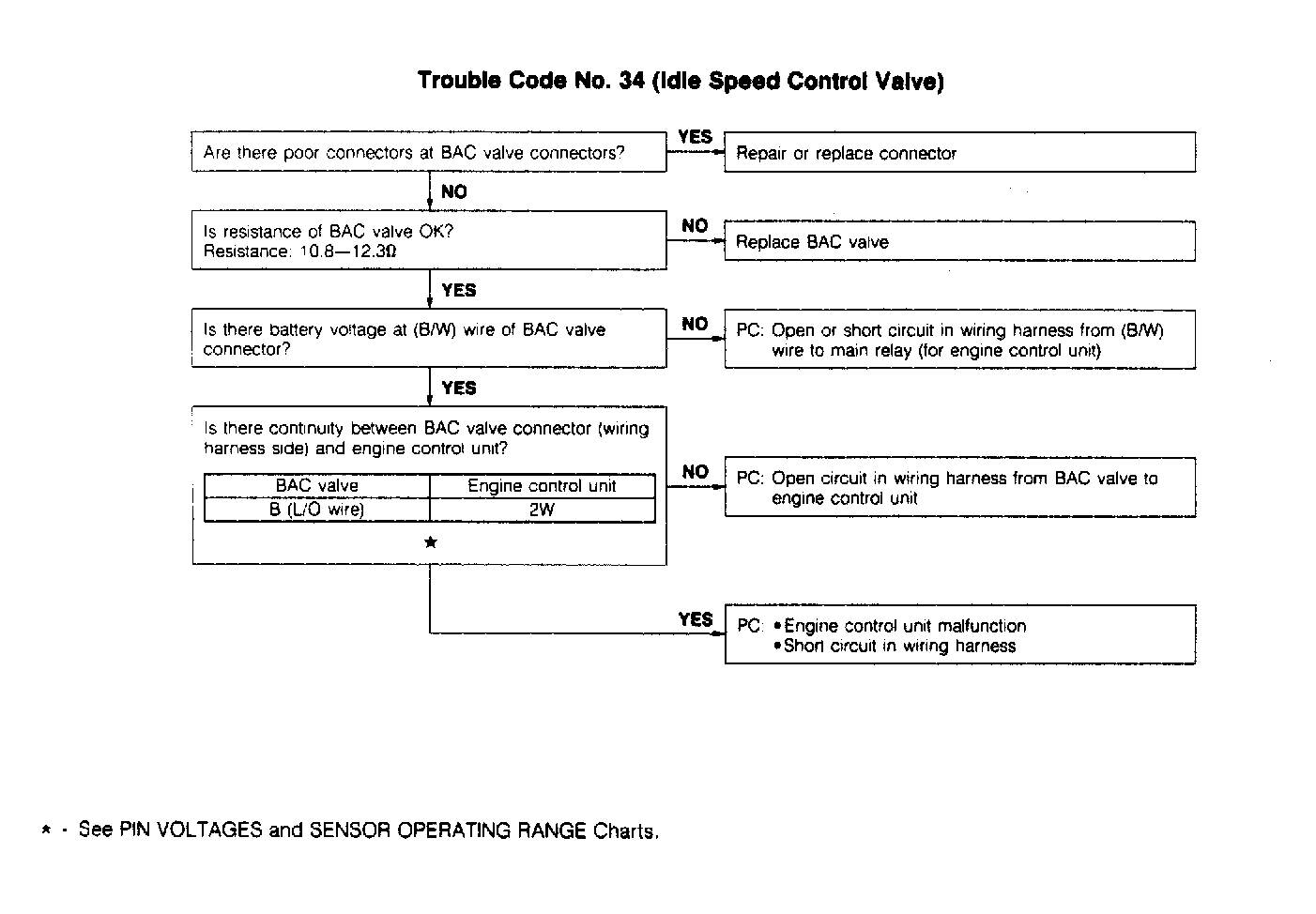

Fig 1: Code 34: Idle Speed Control (ISC) Flow Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
