Code 40: SOHC Triple Induction Control System & O2 Heater

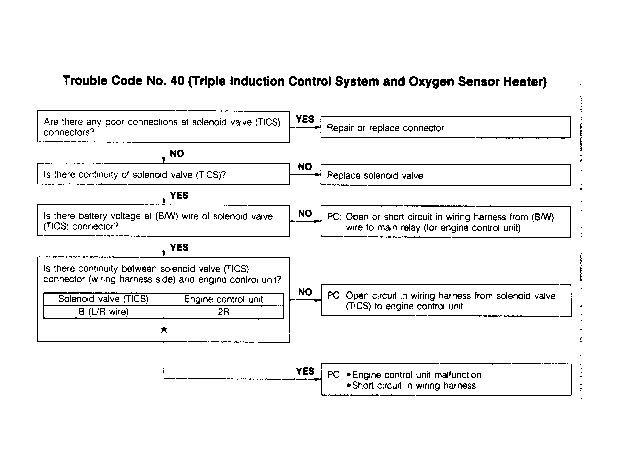

Fig 1: Code 40: TIC Solenoid Valve Flow Chart

Courtesy of MAZDA MOTORS CORP.

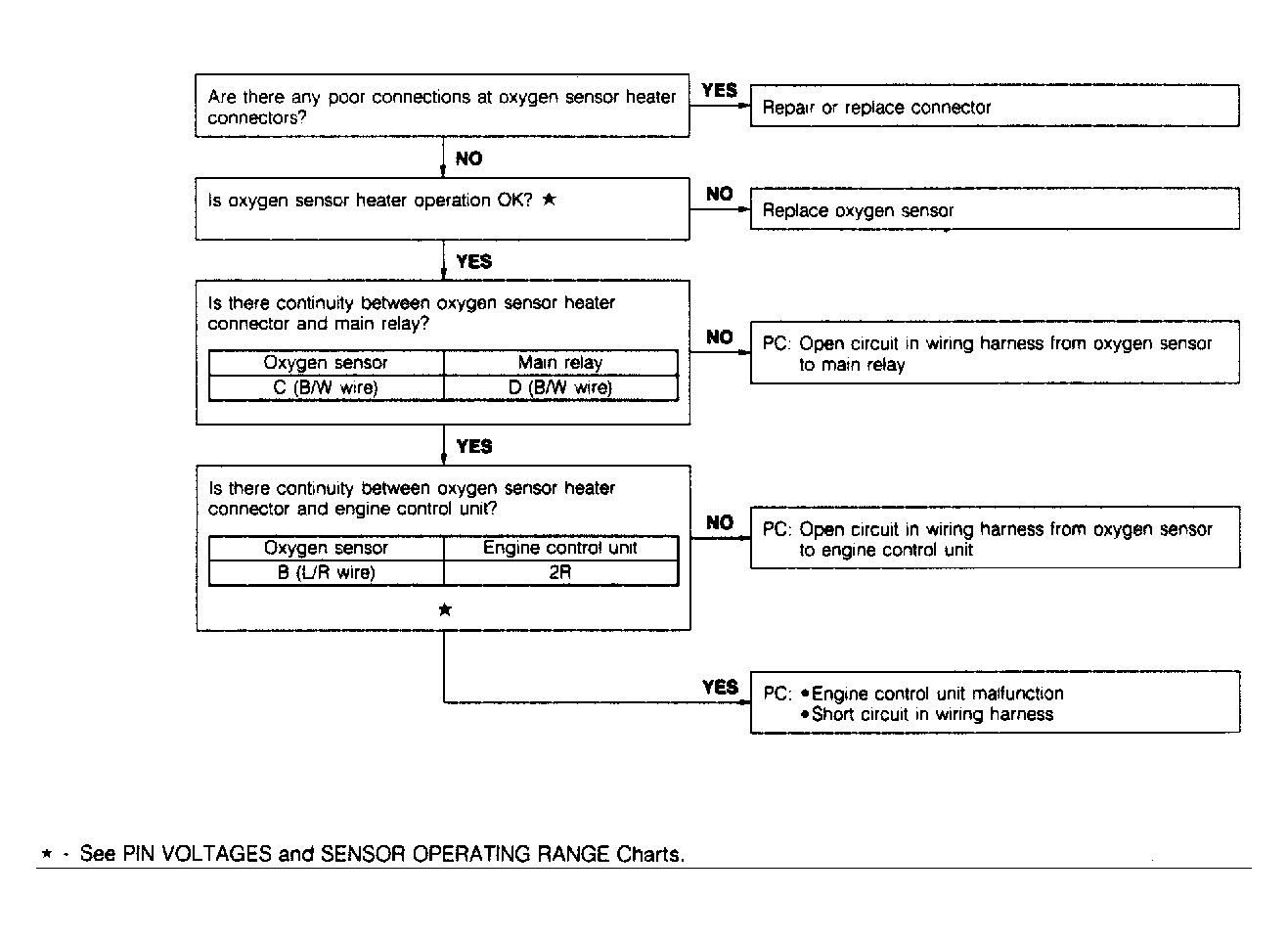

Fig 2: Code 40: O2 Heater Flow Chart

Courtesy of MAZDA MOTORS CORP.
