Code 9: SOHC Coolant THERMOSENSOR

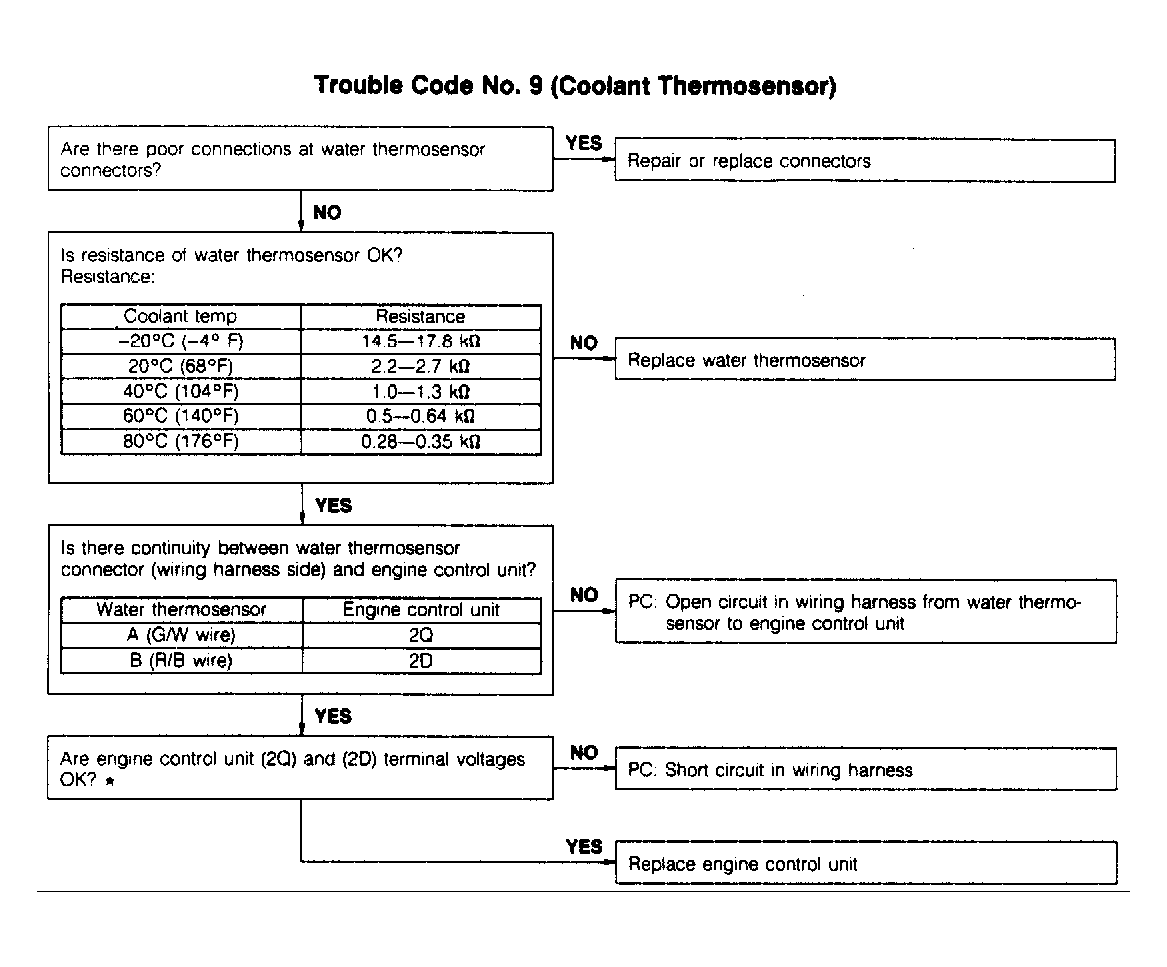

Fig 1: Code 9: Coolant Thermosensor Flow Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
