Service Point Locations

Fig 1: Service Point Locations (1988-91 DOHC Engine)

Courtesy of MAZDA MOTOR OF AMERICA, INC.

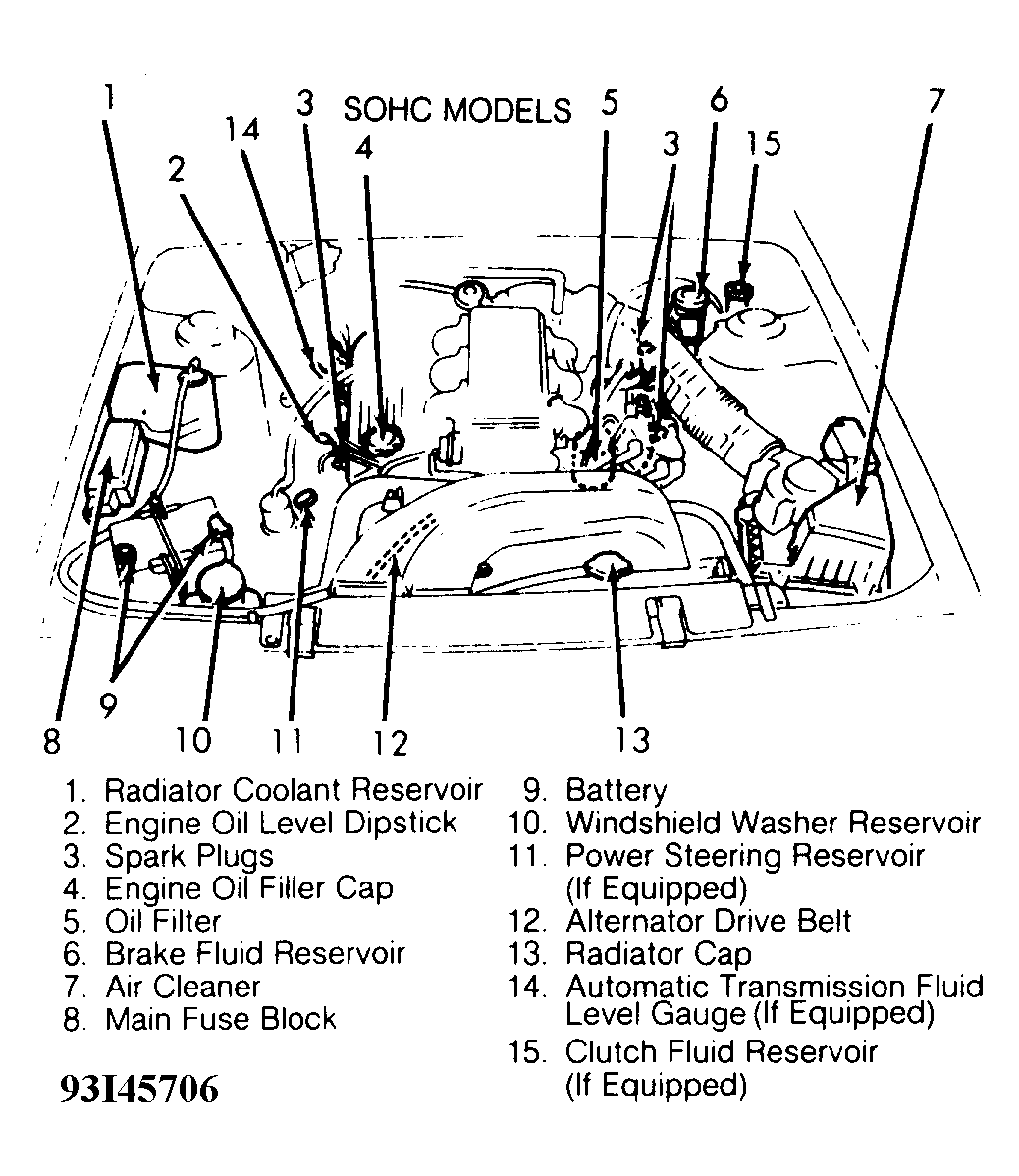

Fig 2: Service Point Locations (1988-91 SOHC Engine)

Courtesy of MAZDA MOTOR OF AMERICA, INC.

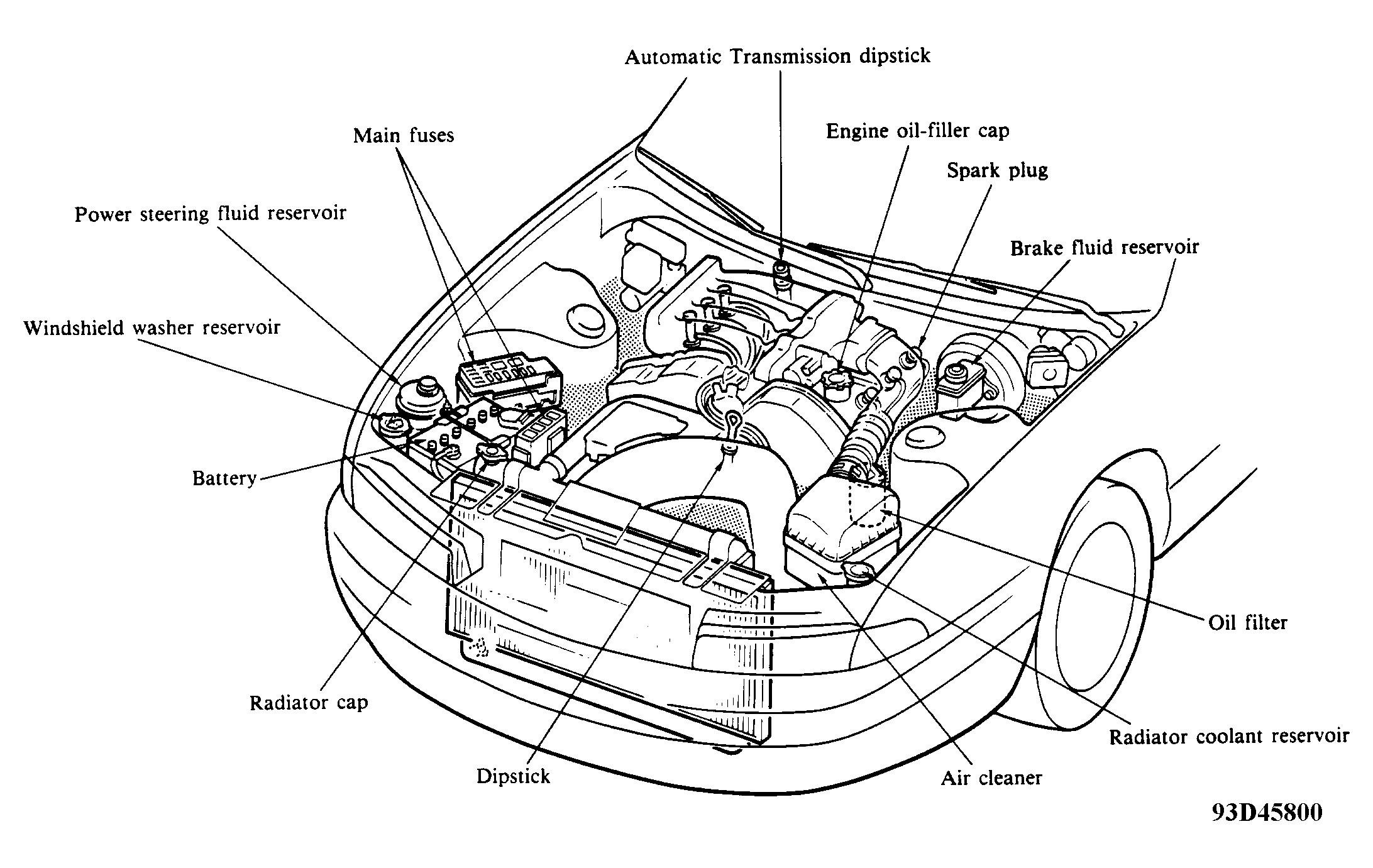

Fig 3: Service Point Locations (1992-95 Models)

Courtesy of MAZDA MOTOR OF AMERICA, INC.
