Combination Switch: Installation
- Install combination switch and clockspring assembly. Before installing steering wheel, center clockspring. To center clockspring, set front wheels straight ahead. Turn clockspring connector clockwise until it stops. DO NOT force it.

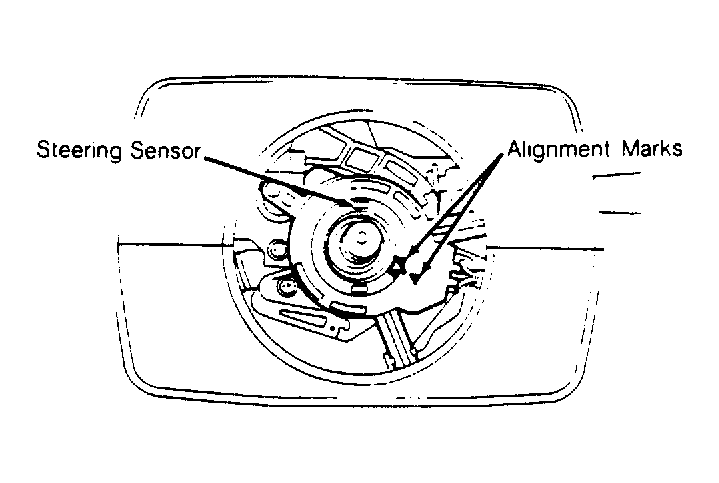

- Return connector 2 3/4 turns (counterclockwise). Rotate clockspring connector further (if necessary) to align marks on connector and outer housing. See Fig 1
.
- Install steering wheel. Tighten steering wheel nut to specification. See TORQUE SPECIFICATIONS
table at end of article. Install air bag module. See AIR BAG RESTRAINT SYSTEM article in ACCESSORIES & EQUIPMENT.
Courtesy of MAZDA MOTORS CORP.
