Caster Adjustment

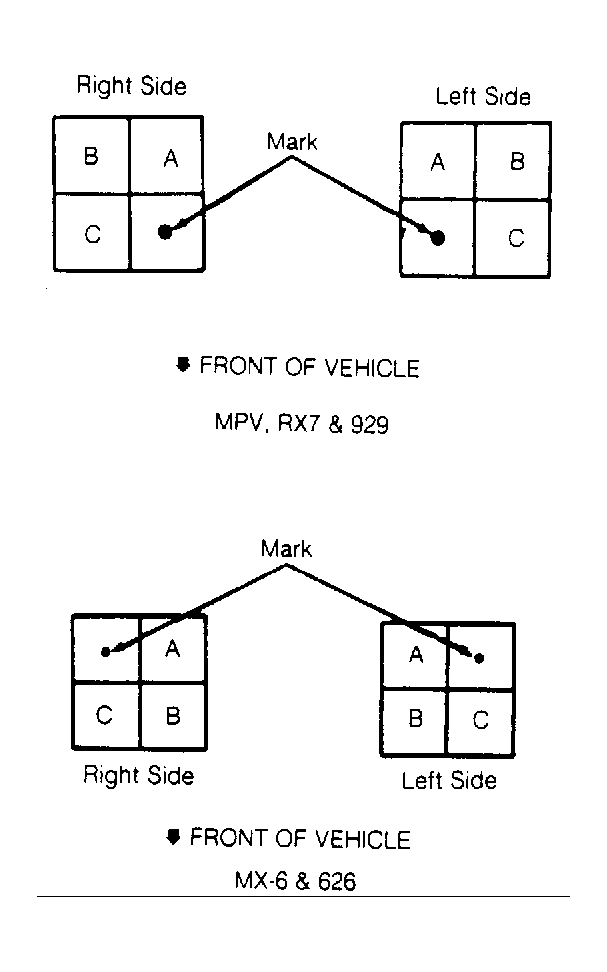

Raise and support front of vehicle. Remove upper strut-to-body nuts. Push strut mounting block downward, and turn to desired position. Reinstall and tighten nuts. See Figure .
CASTER ADJUSTMENT
| Mark | Change From Standard |
|---|---|
| A | 31/64° |
| B | 31/64° |
| C | 0° |
