Evaporative Emission Control: Notes

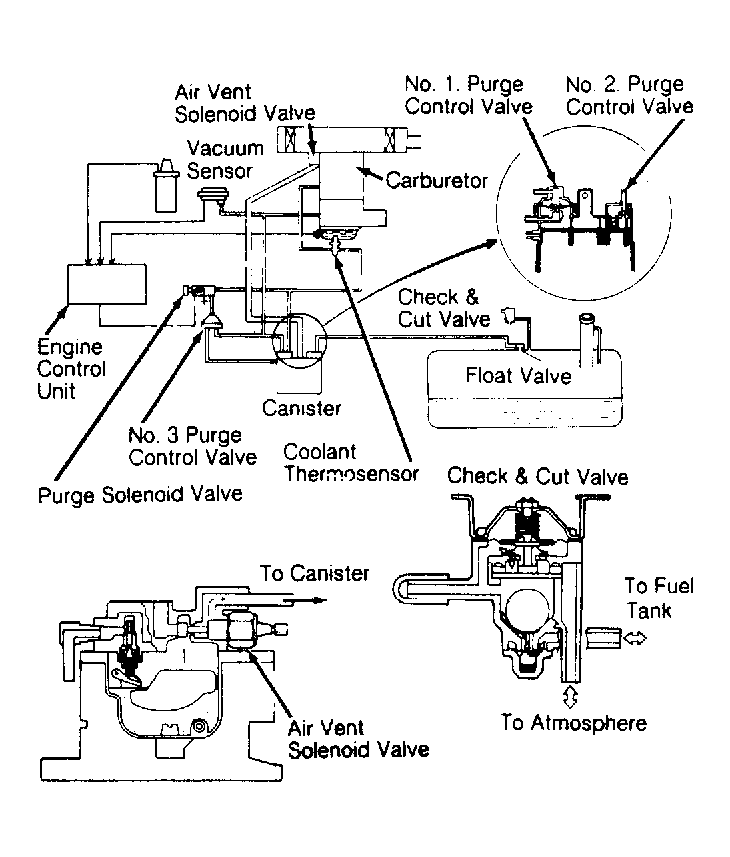

Fig 1: Identifying Evaporative Emission Control System
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
