B2600i TROUBLE CODE ID CHARTS
>>
Code 15: Oxygen Sensor
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Code 15: Oxygen Sensor

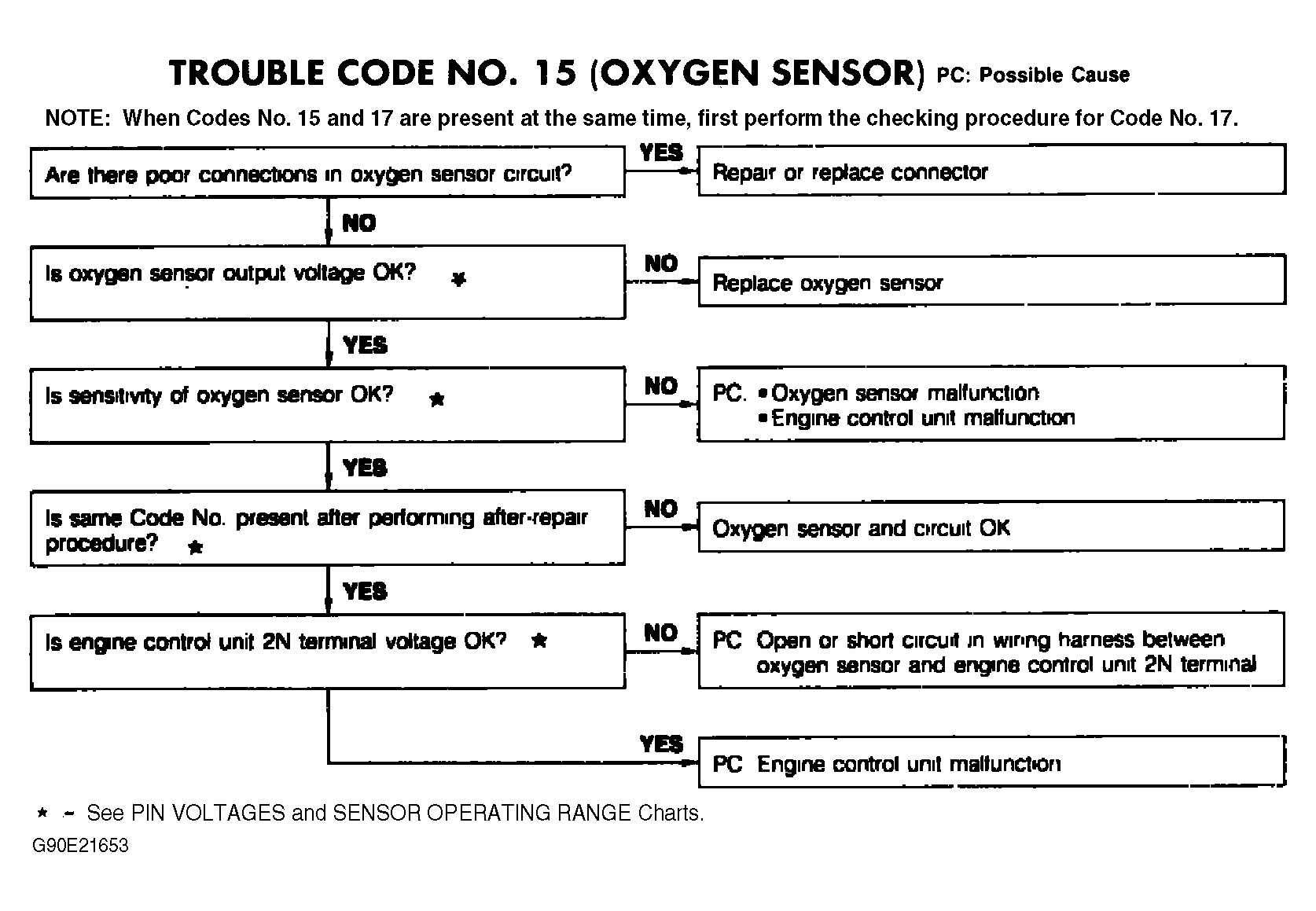

Fig 1: Code 15: Oxygen Sensor Flow Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
