Code 1: Ignition Signal

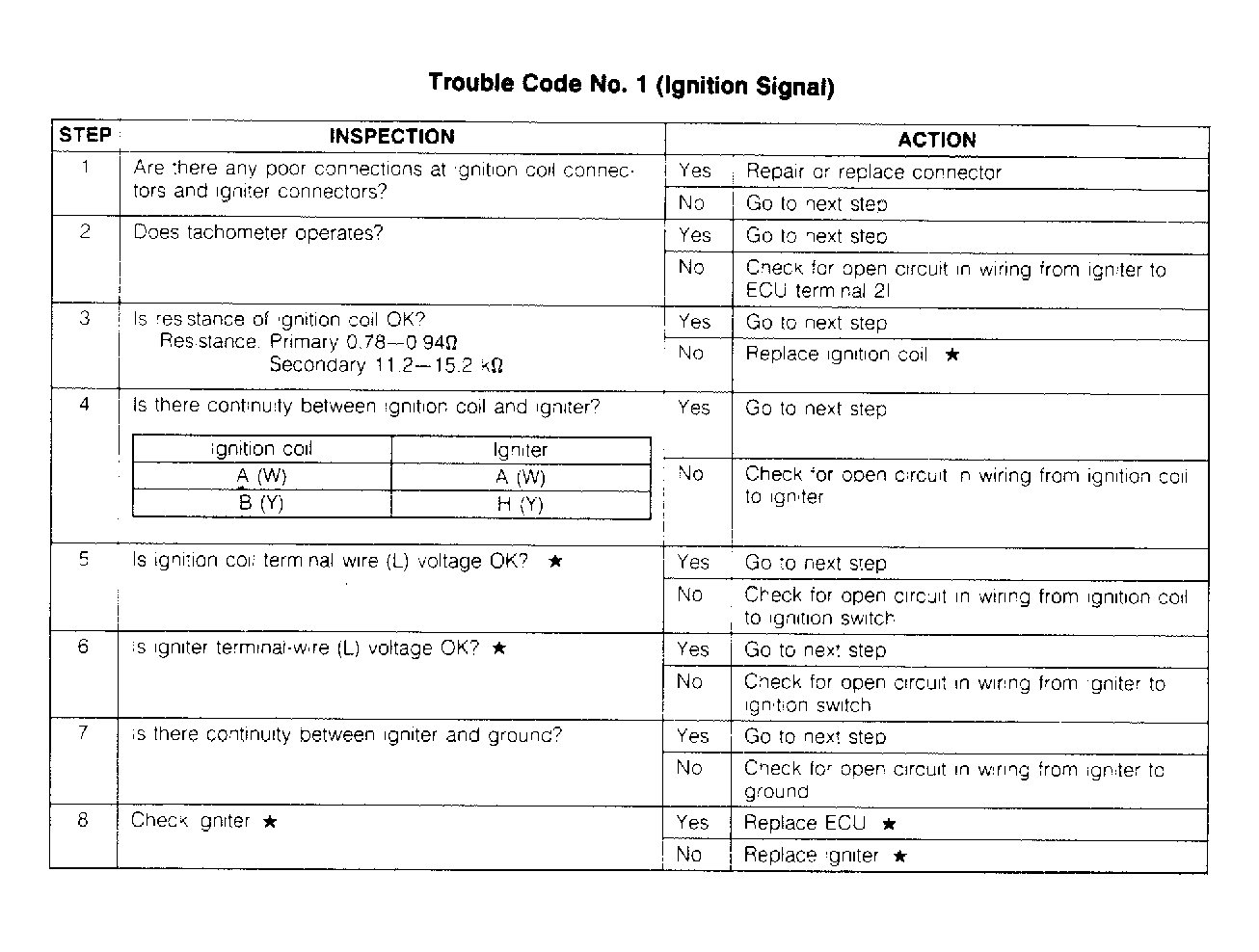

Fig 1: Code 1: Ignition Signal Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
