Code 10: Intake Air THERMOSENSOR

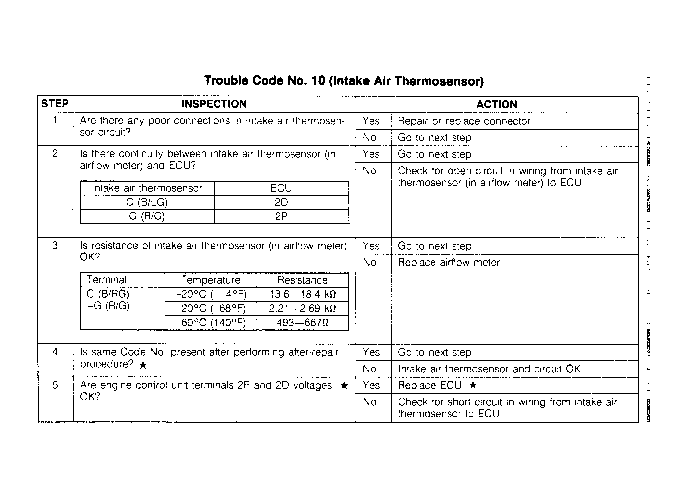

Fig 1: Code 10: Intake Air Thermosensor Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
