Code 2: Ne Signal-Crank Angle

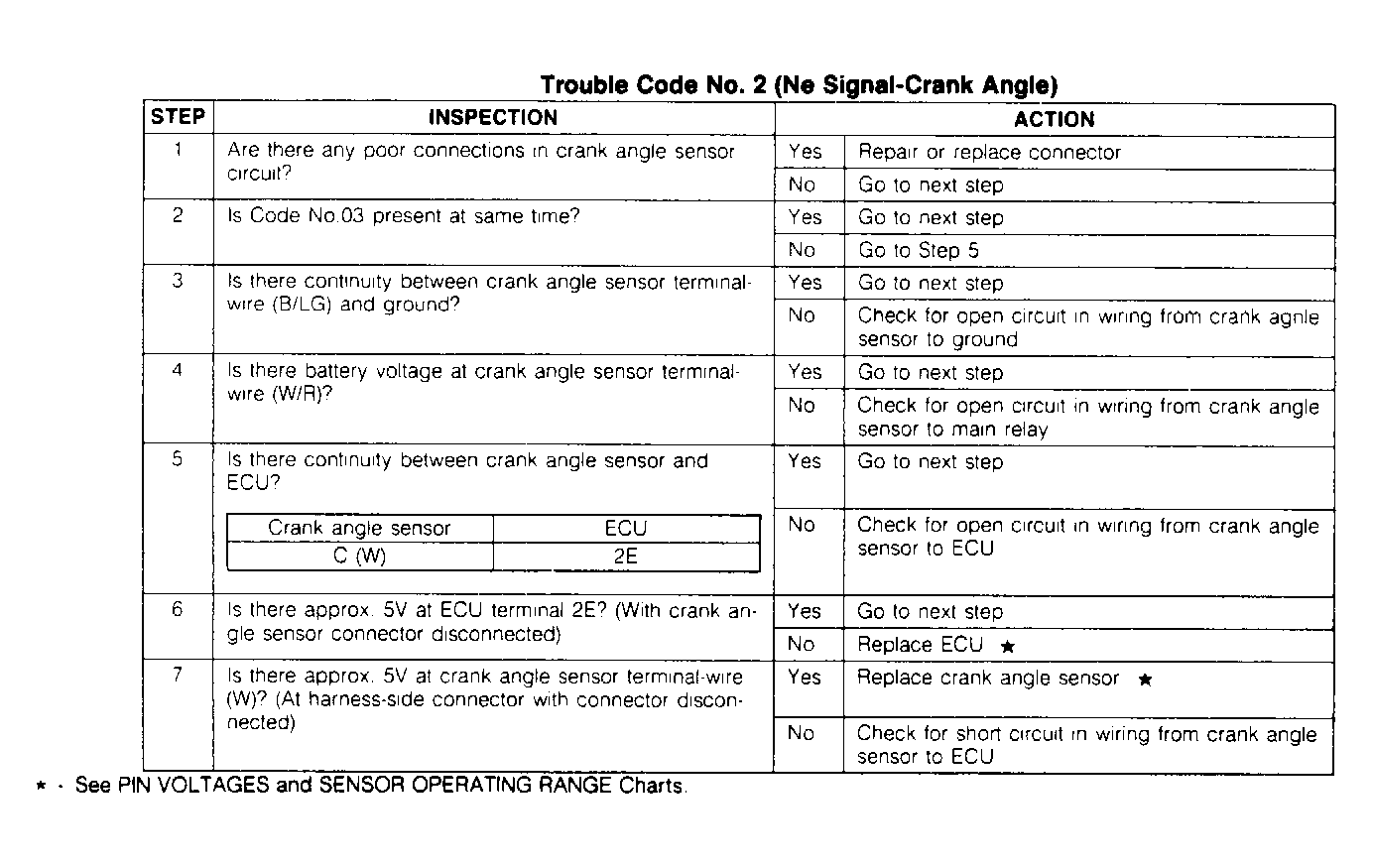

Fig 1: Code 2: NE Signal-Crank Angle Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
