Trouble Code Identification Chart
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Trouble Code Identification Chart: Notes

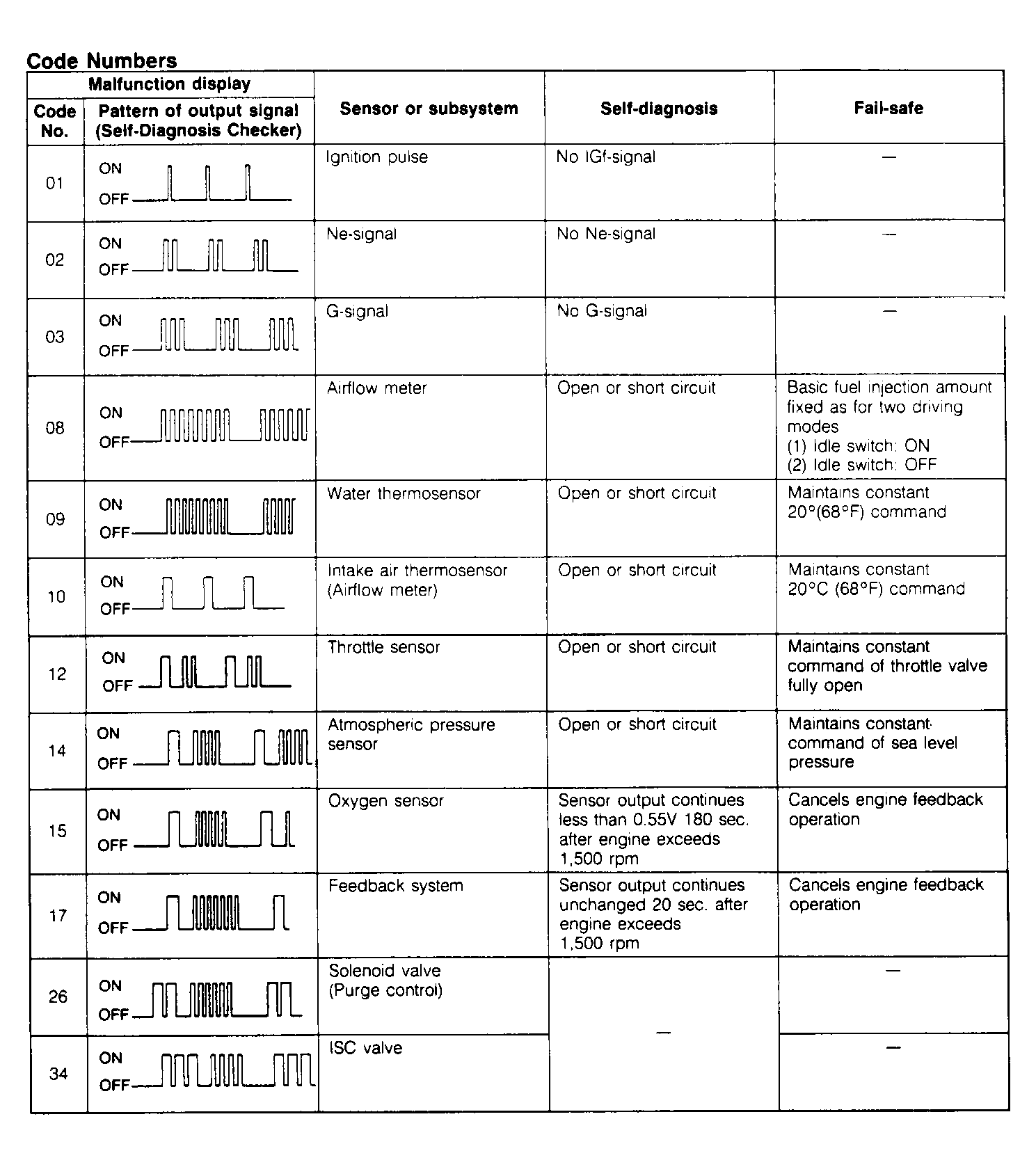

Fig 1: Trouble Code Identification Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
