Code 28: EGR Solenoid Valve

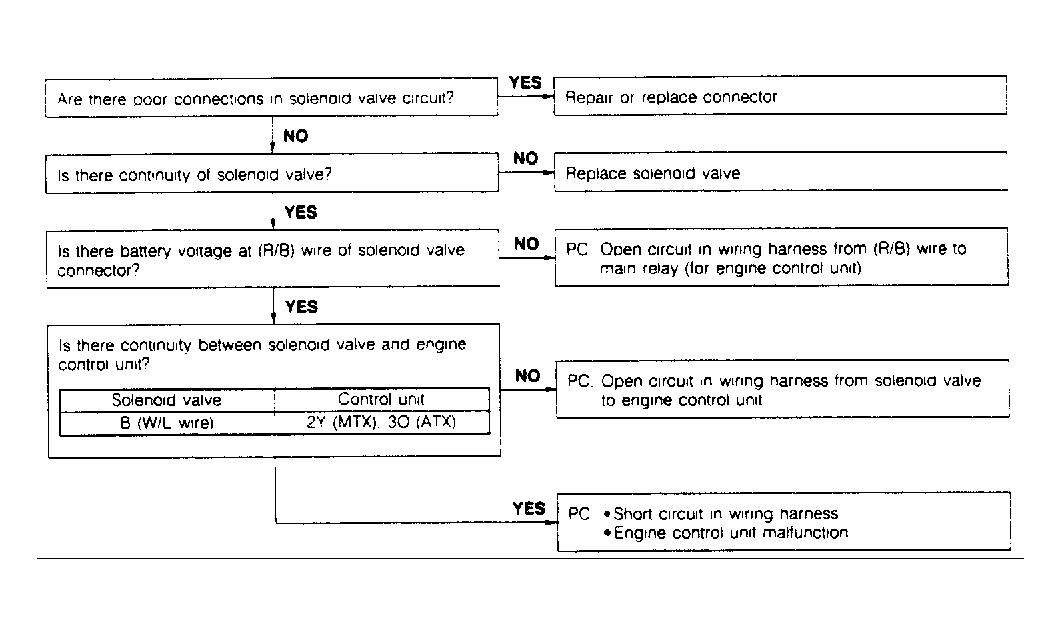

Fig 1: Code 28: EGR Solenoid Valve Flow Chart (Non-Turbo)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
