Code 26: Purge Solenoid Valve

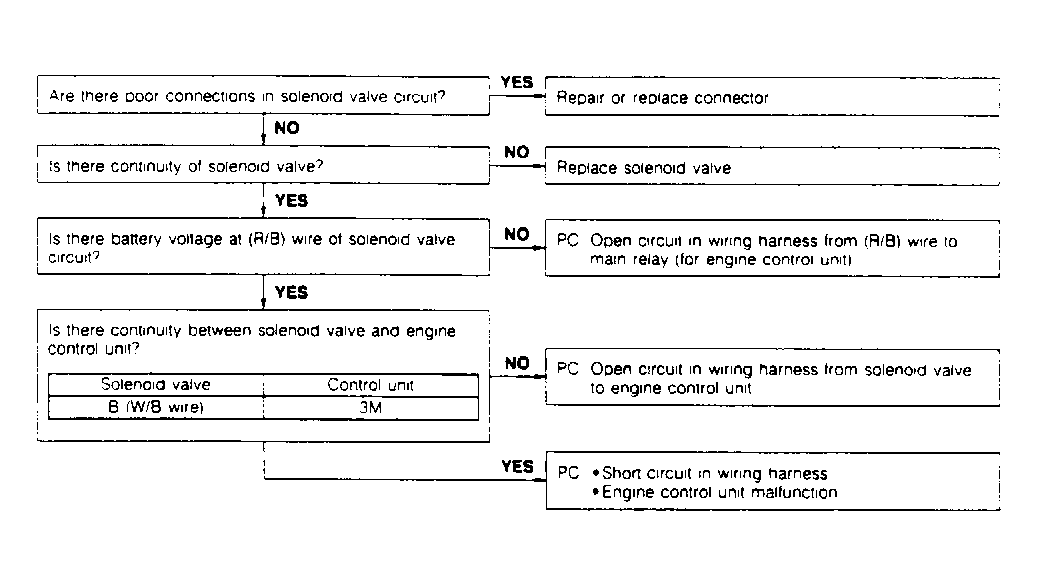

Fig 1: Code 26: Purge Solenoid Valve Flow Chart (Turbo)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
